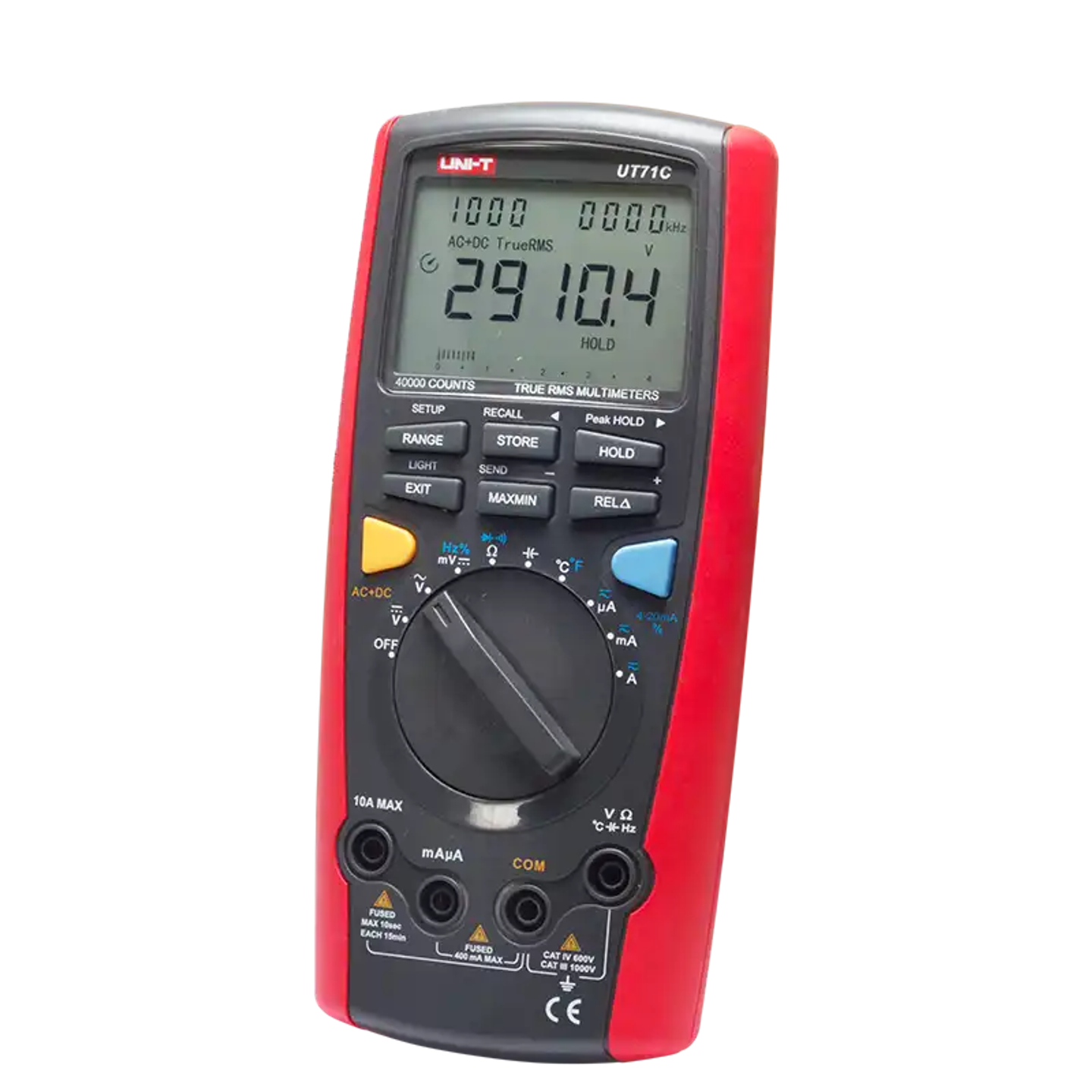

UT-71C 40,000 counts multifunction digital multimeter with USB transmission
Brand
UNI-T
|
Model
UT-71C
|
🇨🇳 China
• 40,000 digits high resolution
• True RMS measurement for AC and DC
• USB data transmission for easy data logging and management
• Multiple measurement functions including voltage, current, resistance, and capacitance
• Supports data logging and recall features
• Automatic range setting for easy operation
• Backlit display for use in dark environments
• Intelligent sleep function to extend battery life
• High safety rating for secure usage
• Compact and portable design for easy carrying
Price
NT$ 4,305
Out of Stock
Views: 74
Description
The UT-71C is an affordable pocket-sized digital multimeter with a high resolution of 40,000 digits, making it ideal for beginners and for maintaining and repairing simple circuits and electrical equipment. It is user-friendly and multifunctional, serving as a perfect tool for a wide range of users. Additionally, the UT-71C features true RMS measurement and USB data transmission capabilities, enhancing convenience and efficiency in measurement tasks.
Specifications
- Display digits40,000 displays
- DC voltage400mV/4V/40V/400V/1000V ±(0.025%+5)
- DC current400μA/4000μA/40mA/400mA/10A ±(0.1%+15)
- AC voltage4V/40V/400V/1000V ±(0.4%+30)
- AC current400μA/4000μA/40mA/400mA/10A ±(0.7%+15)
- Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.3%+8)
- Capacitance40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(1%+20)
- Operating temperature-40 °C ~ 1000 °C / -40 °F~1832 °F
- Temperature errorCelsius ±(1%+30) / Fahrenheit ±(1.5%+50)
- Duty cycle (%)10%~90% ±(1%+30)
Features
- Memory function100 sets
- Frequency100kHz
- Duty cycle0.0% ~ 90.0%
- Fuse 10A rangeYes
- DC currentYes
- Function settingYes
- Auto rangeYes
- Voltage and current:AC+DCYes
- Data transmissionYes
- Data recording100 points
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power Supply9V Battery (6F22)
- Dimensions73×50mm
- Weight384g (Double Injection)
- AccessoryTest lead, battery, conversion base, Type-K thermocouple probe, cloth bag, USB cable, software, manual
- Body ColorRed + Iron Gray
- Body Dimensions200×93×40mm
