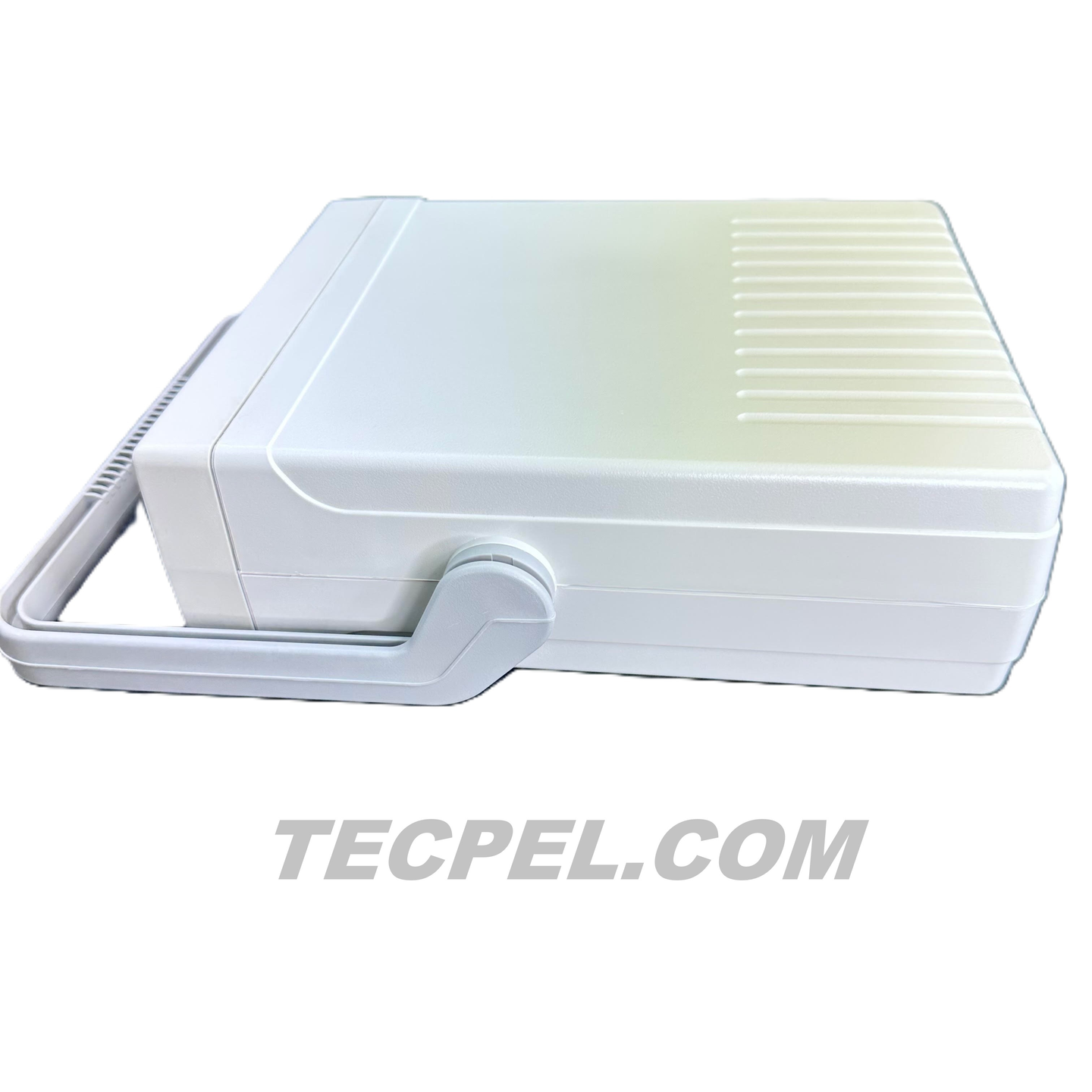

GDM-8245 Dual display digital desktop multimeter
Brand
GWINSTEK
|
Model
GDM-8245
|
🇹🇼 Taiwan
Features
50000 Counts Display
Multi-Function : ACV, DCV, ACA, DCA, R, C, Hz, Continuity Beeper, Diode, Test, Max/Min, REL, Hold, dBm
Dual Display Indicate ACV and Hz,or DCV(ACV) and dBm
Manual or Auto Ranging
0.03% DCV Accuracy
ACV Measuring Frequency Up to 50kHz
AC True RMS or AC + DC True RMS
Out of Stock
Views: 0
Description
50000 Counts Dual Display Digital Multimeter
The GDM-8245 is an economical bench-top DMM equipped with a rich set of features. The GDM-8245 has similar functions to those of the GDM-8245 but with slightly reduced DCV accuracy and no communication interface. The large 7-segment LED dual display features up to 50,000 counts and can show two measurements simultaneously: ACV plus frequency or dBm, DCV plus dBm, or ACV ripple. The GDM-8245 carries an extensive list of measurement items - DC Voltage/Current, AC Voltage/Current with true RMS, Resistance, Capacitance, Frequency, Continuity (with beeper), Diode Test, and dBm. Additional measurement functions, such as Max/Min, Hold, and Relative value. With great range, accuracy, and the ability to accept up to 20A of current, the GDM-8245 is the perfect general-purpose DMM.
Specifications
- DC Voltage+(0.03% rdg + 4 digits)
- DC CurrentBest Accuracy±(0.05%+4)
- Input Impedance10MΩ
- AC Voltage500mV ~ 50V 3 ranges: 20Hz ~ 45Hz: +(1% rdg + 15 digits) 45Hz ~ 2kHz: +(0.5% rdg + 15 digits) 2kHz ~ 10kHz: +(1% rdg + 15 digits) 10kHz ~ 20kHz: +(2% rdg + 30 digits) 20kHz ~ 50kHz: +(5% rdg + 30 digits) 500V,1000V 2 ranges: 45Hz ~ 1kHz: +(0.5% rdg + 15 digits)
- AC Current500μA ~ 20A 6 ranges 20Hz ~ 45Hz: +(1% rdg + 15 digits) 45Hz ~ 2kHz: +(0.5% rdg + 15 digits) 500μA ~ 50mA 3 ranges 2kHz ~ 10kHz: +(1% rdg + 15 digits) 10kHz ~ 20kHz: +(2% rdg + 15 digits)
- Resistance500Ω range：+(0.1% rdg + 4 digits) 5kΩ~ 500kΩ 3 ranges：+(0.1% rdg + 2 digits) 5MΩ range：+(0.2% rdg + 2 digits) 20MΩ range：+(0.3% rdg + 2 digits)
- Capacitance+(2% rdg + 4 digits)
- FrequencymV range： 10Hz ~ 50kHz >120mV 50kHz ~ 150kHz >200mV 5V ~ 50V range： 10Hz ~ 200kHz >1.2V 500V range： 20Hz ~ 1kHz >12V
- FunctionAuto Range, Manual Range, Max, Min, dBm, Rel, Hold
Features
- Gear ShiftAuto / Manual
Attributes
- Operating Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyAC 100V/120V/230V +10%, 50/60Hz; Power consumption: 8VA max.
- Dimensions265(W) x 107(H) x 302(D) mm
- WeightApprox. 2.6kg
- AccessoryTest Lead、 Power Cable、
- Storage Temperature0~40°C / lower than 75%RH without dew
