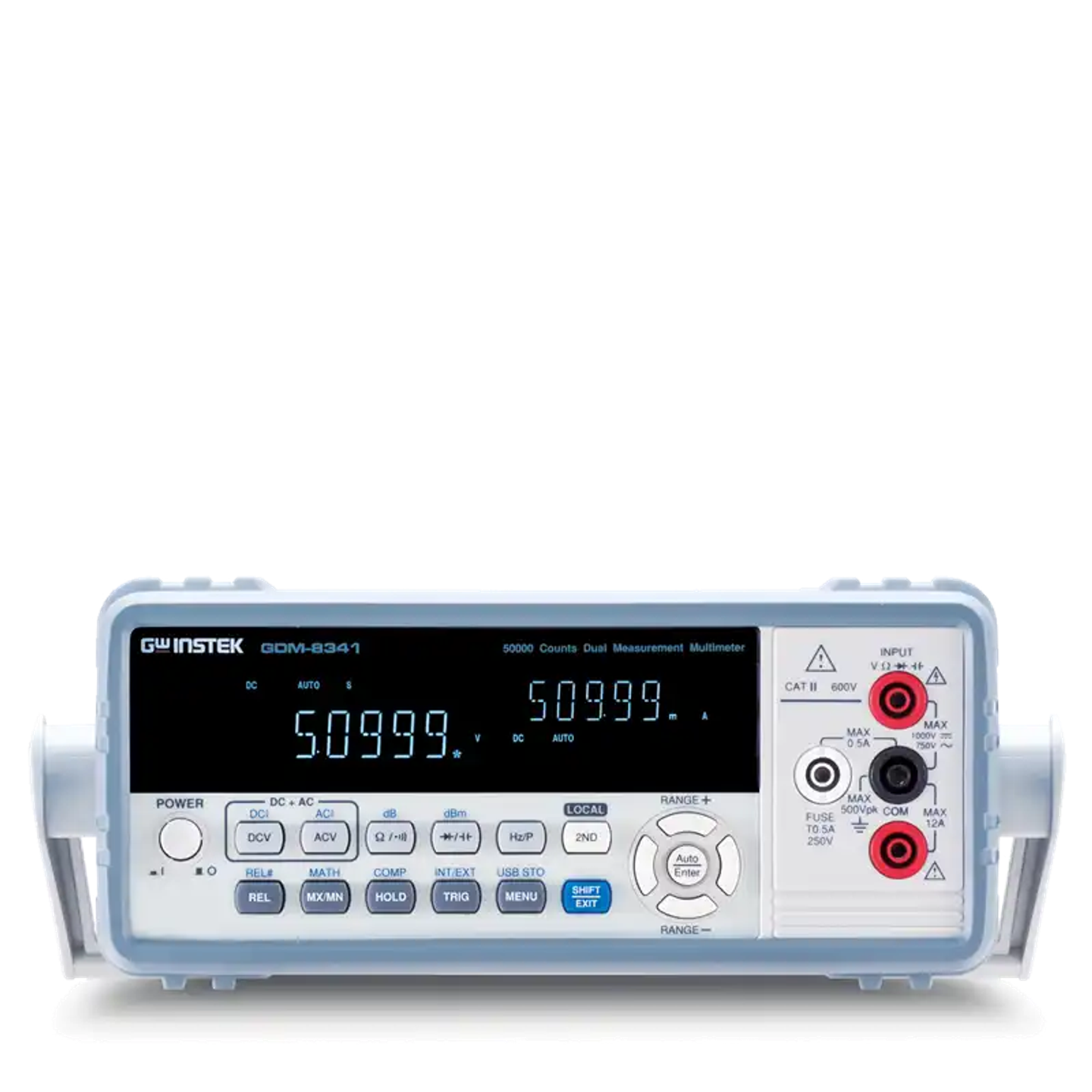

50,000 display digital desktop multimeter dual measurement/dual display
Brand
GWINSTEK
|
Model
GDM-8341
|
🇹🇼 Taiwan
GDM-8341 features 11 measurement functions and supports True RMS measurement.
- 50,000-count VFD dual-color display
- Dual measurement / dual display design
- Measurement speed up to 40 readings per second
- DC voltage accuracy: 0.02%
- Selectable auto or manual range switching
- Includes Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm functions
- USB interface for connecting to a computer
- Temperature measurement function (for GDM-8342 only)
- USB storage function (for GDM-8342 only)
Out of Stock
Views: 56
Description
The GDM-8341 is a state-of-the-art dual measurement digital desktop multimeter from GW Instek, featuring a USB communication interface and a 50,000 count VFD dual display. With a basic accuracy of 0.02% for DC voltage, this multimeter provides precise measurement results and easily connects to personal computers, making it ideal for professional applications requiring high measurement accuracy.
Specifications
- DC VoltageBest accuracy ±(0.02%+4)
- DC CurrentBest accuracy ±(0.05%+4)
- AC VoltageBest accuracy ±(0.35%+15)
- AC CurrentBest accuracy ±(0.5%+20)
- ResistanceBest accuracy ±(0.10%+3)
- CapacitanceBest accuracy ±(2%+10)
- Frequency±(0.01%+3)
Features
- DC VoltageDC Voltage
- Auto RangeRange switching
- Measurement FunctionMeasurement functions
- Display50,000-count VFD dual-color display
- True RMSTrue RMS
- Max/MinMax/Min value
- Compare FunctionCompare function
- ProductProduct: GDM-8341
- 量測功能_value11 funciones de medición
- True RMS_valueCompatible con medición de CA o CA+CC
- 比較功能_valueCon función Compare
Attributes
- Operating Temperature-10~60 °C / below 75%RH, no condensation
- Altitude Limit0~40 °C / below 75%RH, no condensation
- Power Supplybelow 1,000 meters
- DimensionsAC 100 V / 120 V / 220 V / 240 V ±10%, 50-60Hz
- Weight265(W) x 107(H) x 302(D) mm
- Accessoriesapprox. 2.9 kilograms
- Storage Temperaturetest leads, power cord, operating CD-ROM
