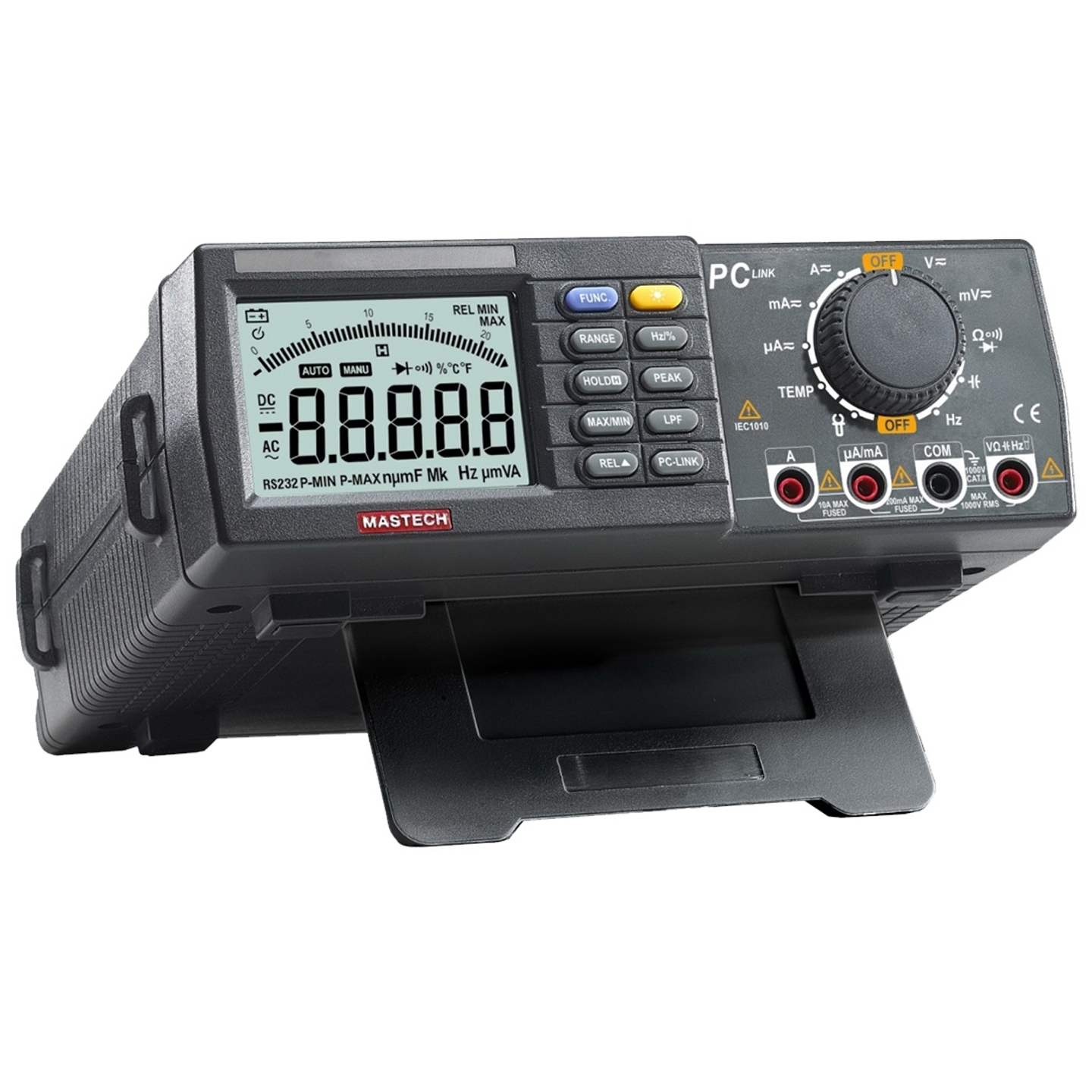

MASTECH 22000 Digits Digital Multimeter DMM
Brand
MASTECH
|
Model
MS8040
|
🇨🇳 China
Mastech MS8040 is a desktop 22000-digit electricity meter with complete functions, stable performance and high precision. It is an ideal tool for circuit/electric equipment maintenance and repair.
Out of Stock
Views: 0
Description
The MS8040 is a benchtop digital multimeter from Mastech, designed with dual displays showing 22,000 counts and a 44-segment bar graph. It supports true RMS measurements for both AC voltage and current, and includes features like low-pass filters, relative measurements, and peak measurements. The device also features a continuity buzzer and a USB interface for enhanced connectivity. Additional features include auto-ranging, automatic shutdown, and a backlight for better visibility during use.
Specifications
- DC VoltageBest Accuracy ±(0.3%+2)
- DC CurrentBest Accuracy ±(0.5%+3)
- AC VoltageBest Accuracy ±(0.6%+5)
- AC Current600μ / 6000μ / 60m / 600m / 10 A
- Resistance600 / 6K / 60K / 600K / 6M / 60M Ω
- Capacitance6n / 60n / 600n / 6μ / 60μ / 600μ / 6m F
- Frequency0.001Hz ~ 400.00MHz
- Temperature Range-40°C~1000°C (-40°F~1832°F)
Features
- Auto Power OffApprox. 10 mins
- Input Impedance≥10MΩ
Attributes
- Operating Temperature-10~60°C / lower than 75%RH without dew
- Storage Temperature0~40°C / lower than 75%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyAC110V or 1.5V Battery x 6
- Dimensions310 × 240 × 105 mm
- WeightApprox. 2.4 kg (without battery)
- AccessoryTest line, type-K thermocouple probe, multi-function measuring seat, Adaptor , USB cable, software, manual
