K, J, T, S, R, Type Temperature 4ch

Name: T&D MCR-4TC K, J, T, S, R, Type Temperature 4ch
Brand: T&D
SKU: MCR-4TC
Price: 13650 TWD
Availability: OutOfStock

Brand T&D | Model MCR-4TC | 🇯🇵 Japan

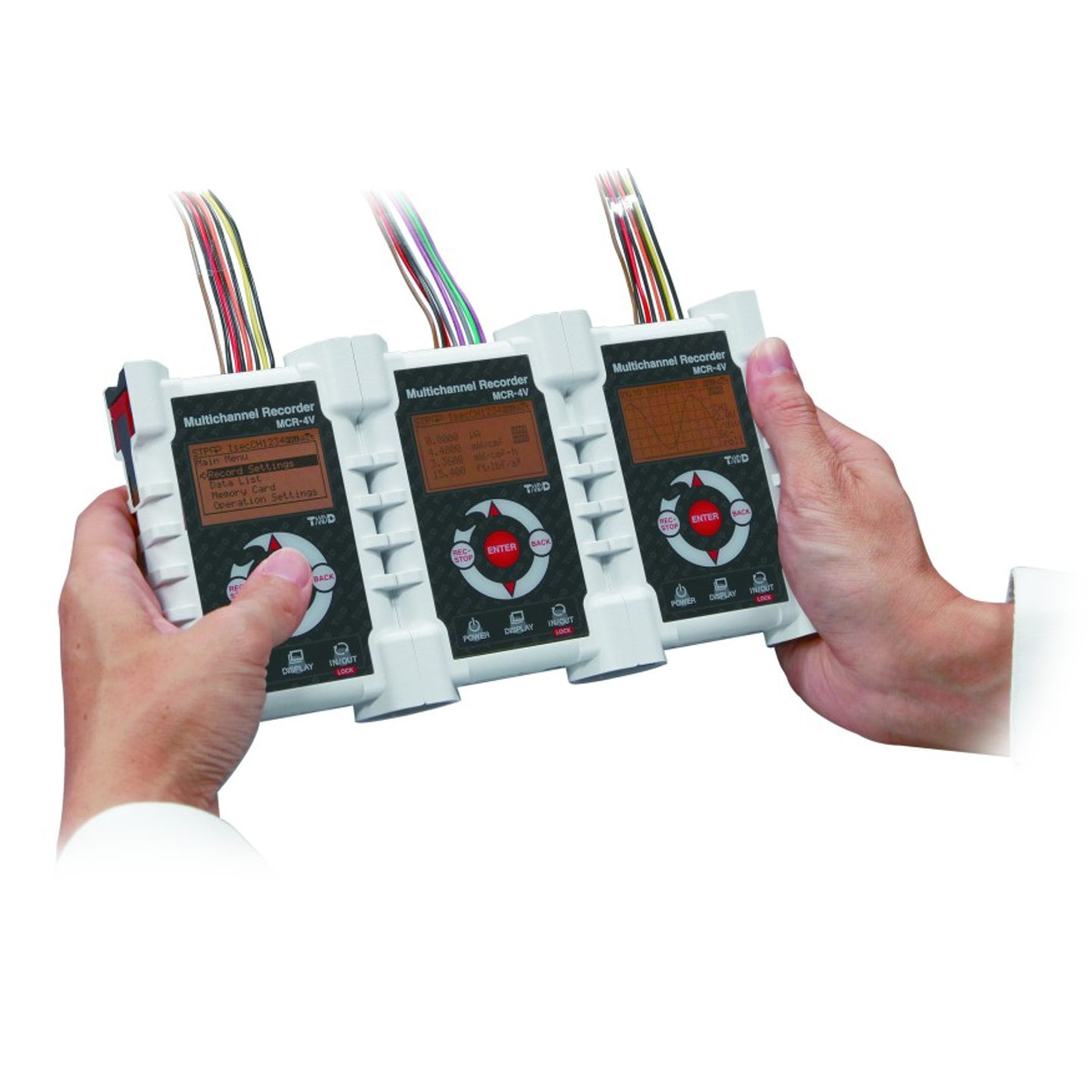

Supports multiple types of thermocouples, recording temperature data from up to 4 channels simultaneously. Through parallel connection, it can synchronize data from up to 16 temperature sources. Data is stored on an SD card for easy access and analysis on a computer. Real-time display of changing curve graphs for monitoring data variations.

Price NT$ 13,650

Out of Stock

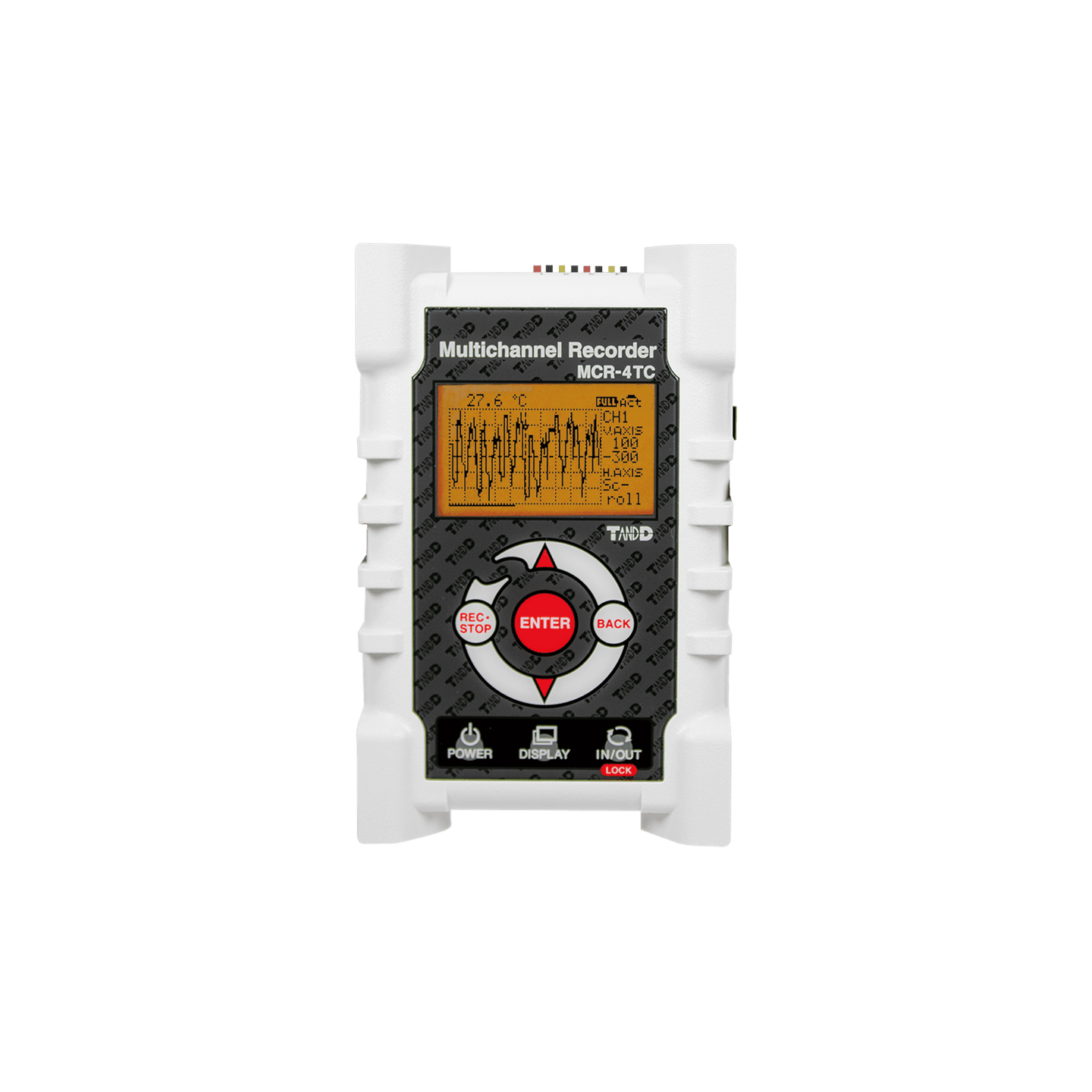

The MCR-4TC is a high-performance thermocouple temperature data logger produced by Japan’s TandD. It features the ability to instantly display change curves. The device can record up to 4 temperature channels simultaneously, and with the parallel (interleaving) function, it can synchronously record temperature data from up to 16 different sources. It is suitable for a wide range of applications. Whether in industrial production, laboratories, or environmental monitoring, the MCR-4TC provides accurate and reliable temperature data, and supports SD card storage for convenient data analysis on a computer.

Display Counts-270 ~ 1,760
K-Type-199 ~ 1,370 °C ± (0.5 + 0.003 × t) °C @ -100 °C or above
J-Type-199 ~ 1,200 °C ± (0.5 + 0.003 × t) °C @ -100 °C or above
T-Type-199 ~ 400 °C ± (0.5 + 0.003 × t) °C @ -100 °C or above
S-Type-50 ~ 1,760 °C ± (1.5 + 0.003 × t) °C @ 100 °C or above
R-Type-50 ~ 1,370 °C ± (1.5 + 0.003 × t) °C @ 100 °C or above
Thermocouple TypeK, J, T, S, R)
Resolution0.1°C (for display values below 1,000)
Sampling Rate1/second

Display1~4 channel display
Recording Capacity960,000 data points
Recording Interval100 / 200 / 500 ms / 1 / 2 / 5 / 10 / 15 / 20 / 30 s / 1 / 2 / 5 / 10 / 15 / 20 / 30 / 60 min
Keypad Lock○
Temperature Unit°C / °F
Waveform Display○
Low Battery Indicator○
Auto Power Off5 minutes
Backlight○
Data LoggingManual, automatic write to SD card
Device SyncUp to 4 units

Operating Temperature0 ~ 50 °C / less than 90 %RH no condensation
Storage Temperature-10 ~ 40 °C / less than 70 %RH no condensation
Altitude Limitbelow 1,000 m
Power Supply1.5V AA battery x 2 / USB : 5V 200mA
Safety RatingUSB 2.0 (Mini-B connector)
Memory card slotSD or SDHC memory card
Dimensions120 x 75 x 32mm
Weight140 g
AccessoriesAA battery x2, USB (Mini-B US-15C) cable, software CD, SD slot protection card, instruction manual
