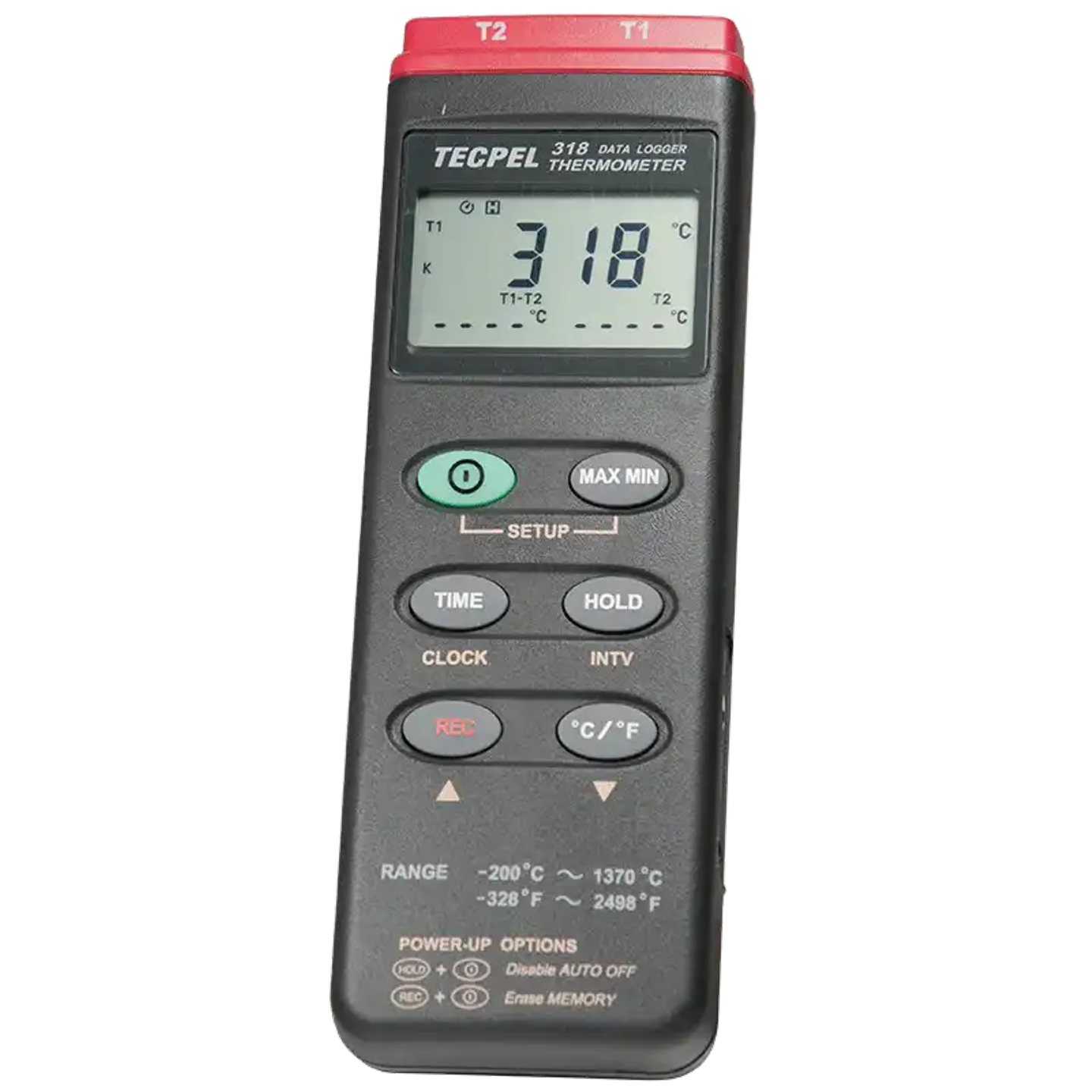

K-type Dual channel thermocouple meter
Brand
TECPEL
|
Model
DTM-318
|
🇹🇼 Taiwan
· Dual channel design for simultaneous temperature recording from two different locations
· Supports K-type thermocouples, suitable for various temperature measurement applications
· Large data storage capacity, can log up to 16,000 data points
· Adjustable recording intervals from 1 second to 60 minutes
· Features maximum, minimum, and relative value modes
· Data hold function for easy reading
· Time display format is month-day hour:minute
· Automatic shut-off function for energy-saving
· Low battery indicator for monitoring battery status
· Tripod mount design for easy installation
Price
NT$ 5,040
Out of Stock
Views: 4
Description
The DTM-318 K-type Dual Channel Thermocouple Meter is a high-performance temperature logger that supports K-type thermocouples and can connect to various temperature measuring wires or probes. It allows for simultaneous recording of temperature data from two channels. Whether for industrial applications or laboratory use, the DTM-318 provides accurate temperature readings and can operate for extended periods using a 9V battery or a DC9V adapter, making it ideal for long-term temperature monitoring.
Specifications
- Temperature Range-200 ~ 1,300 °C (-328 ~ 2,498 °F)
- Accuracy±(0.3% + 1 °C)
- Resolution0.1 °C / 1 °C (above 200 °C)
- Sensor TypeK-Type Thermocouple
- Sampling Rate400 ms
- Response TimeDepends on sensor
Features
- Temperature Unit Switching °C / °F
- Maximum/Minimum✓
- Relative Mode (REL)✓
- Data Hold✓
- Time Displaymonth-day hour:minute
- Data Logging16,000 records
- Logging Interval1 second ~ 60 minutes
- Dual Channel Input✓
Attributes
- Operating Temperature0 ~ 50 °C / <90 %RH non-condensing
- Storage Temperature-10 ~ 40 °C / <70 %RH non-condensing
- Altitude LimitationBelow 1,000 meters
- Power Supply9V battery (optional DC 9V adapter)
- Dimensions193 × 74 × 37 mm
- WeightApprox. 365g
