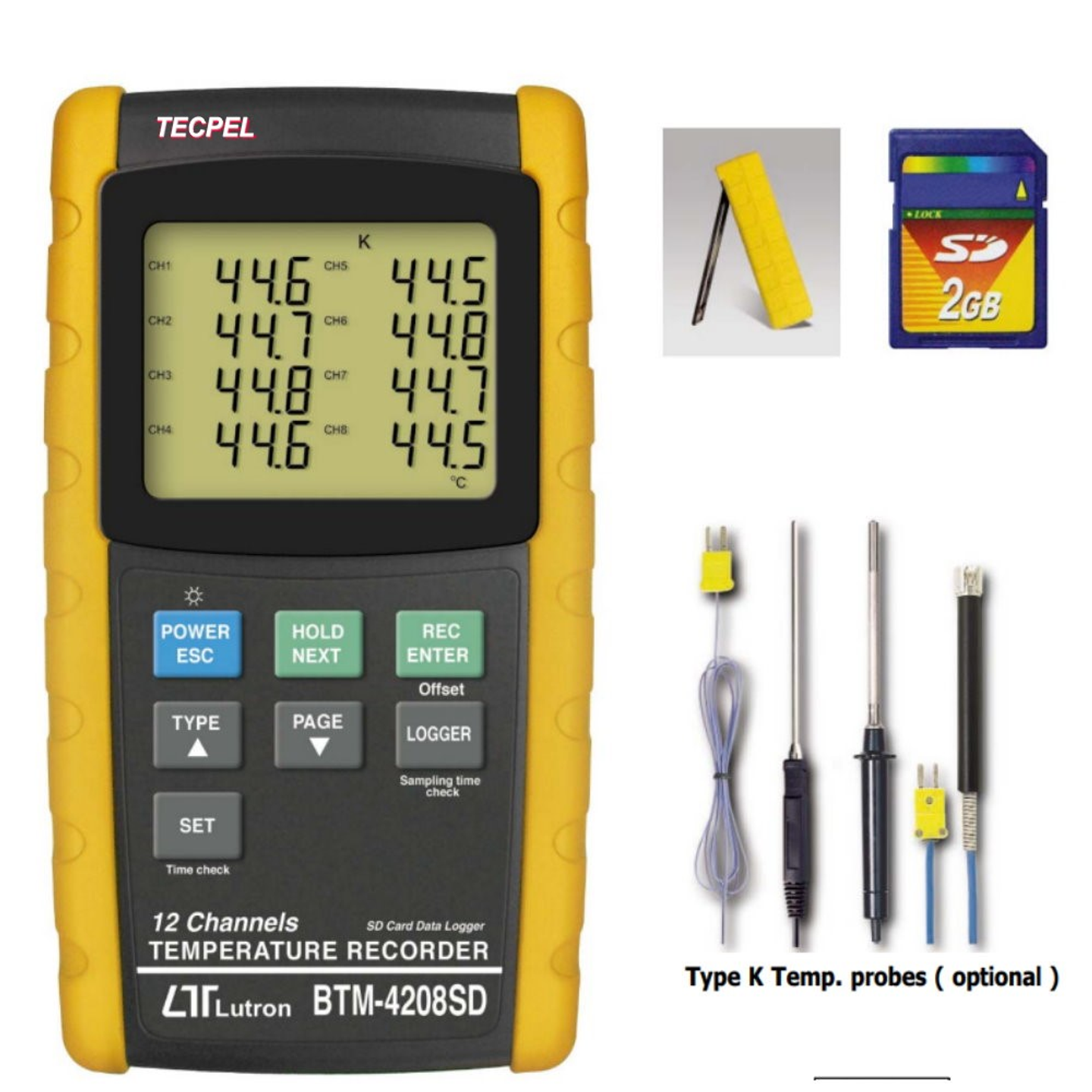

12-Channel Thermocouple Temperature Logger, K, J, E, T, R, S Type

Name: LUTRON BTM-4208SD 12-Channel Thermocouple Temperature Logger, K, J, E, T, R, S Type
Brand: LUTRON
SKU: BTM-4208SD
Price: 15600 TWD
Availability: OutOfStock

Brand LUTRON | Model BTM-4208SD | 🇹🇼 Taiwan

The BTM-4208SD is a 12-channel temperature logger that can monitor multiple temperature points simultaneously and directly store measured data and time information to an SD card. Data can be imported into Excel for analysis without dedicated software, greatly improving data management efficiency. It supports multiple thermocouple types including K, J, T, E, R, and S, making it suitable for laboratories, process monitoring, and equipment testing. Built-in large backlit display, maximum/minimum value recording, data hold, and auto logging functions, combined with long-term data storage capability, make temperature monitoring easier and more reliable.

Price NT$ 15,600

Out of Stock

This 12-channel temperature logger uses an SD card for paperless data storage and records real-time data with time stamps. It supports J/K/T/E/R/S thermocouples and features auto/manual logging functions. The sampling interval ranges from 1 to 3600 seconds, with a temperature range of -100 to 1300℃ (K) and -100 to 1200℃ (J). Features include offset adjustment, jumbo LCD, auto power off, and RS232/USB interface.

Measuring Range-200 ~ 1,800 °C
Thermocouple TypeK、J、E、T、R、S Type
Resolution0.1 / 1
Sampling Rate2 seconds
Temperature Range-50~1,300 °C ±(0.4%+5)

Input channels12 channels
Max/Min○
Zero Adjustment○
Recording Capacity86,000 records
Recording Interval1~3600 s / manual save
Data Compensation-100 ~ 100
Temperature Unit°C / °F

Operating Temperature0 ~ 50 °C (32~122°F) / less than 80 %RH no condensation
Storage Temperature-10 ~ 40 °C / less than 70 %RH no condensation
Altitude Limitbelow 1,000 meters
TransmissionRS-232
Power Supply1.5V AA batteries (size AA) x 8 / DC9V adapter
Battery Lifeapproximately 3 months
Dimensions225×125×64 mm
Weight944 grams(g), 2.1 lb
AccessoriesBatteries, manual, K-type thermocouple ×12 pieces, SD card (2G installed in the device)
