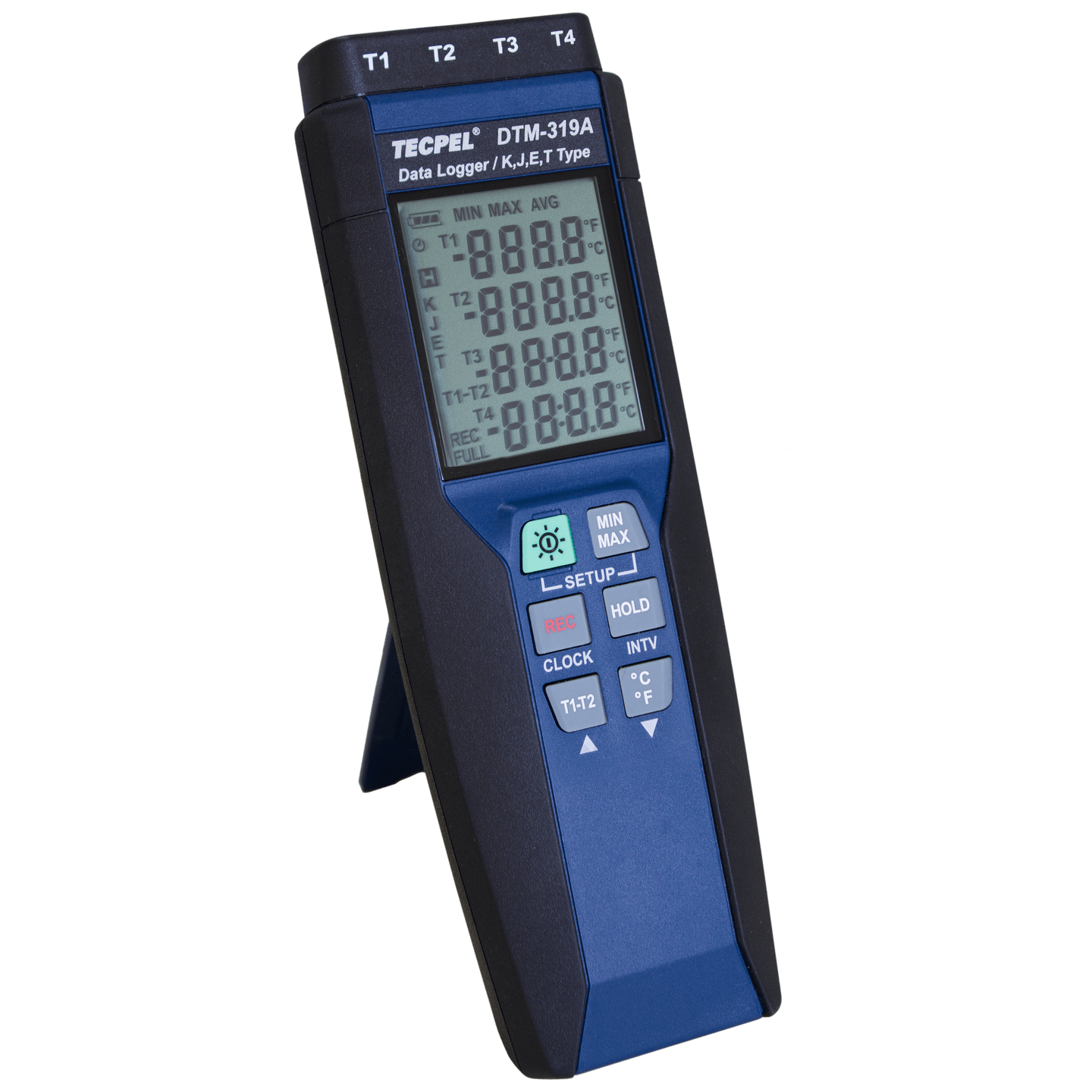

4-Channel Thermocouple Thermometer
Brand
TECPEL
|
Model
DTM-319A
|
🇹🇼 Taiwan
• Supports K, J, E, T type thermocouples
• Simultaneously records temperature changes at four points
• 16,000 data points storage capacity
• Temperature unit switch: Celsius °C / Fahrenheit °F
• Low battery indication and auto-off feature
• Backlight for nighttime use
• Tripod mounting hole for easy fixing
Downloads
Price
NT$ 6,510
Out of Stock
Views: 10
Description
The DTM-319A Four-Channel Thermometer is a high-performance temperature data logger that supports K, J, E, and T type thermocouples. It can simultaneously record temperature changes at four points, with each channel capable of storing 16,000 data points. Its design is suitable for scientific experiments, product testing, and various industrial applications, offering high accuracy and ease of use.
Specifications
- Display Range-199.9 ~ 1999
- Sensor TypeK, J, E, T-Type
- K Type Temperature-200~1,370 °C (-328~2,498 °F)
- J Type Temperature-150~1,000 °C (-238~1,832 °F)
- E Type Temperature-150~750 °C (-238~1,382 °F)
- T Type Temperature-180 °C~400 °C (-292~752 °F)
- Accuracy±(0.1% + 0.7 °C)
- Resolution0.1 (display value less than 1,000)
- Data Logging16,000 records
- Recording Time1 second~60 minutes/time
- Sampling Rate1 second
Features
- Low Battery Indicator✓
- T1 T2 Difference (T1-T2)✓
- Temperature Unit SwitchingCelsius °C / Fahrenheit °F
- Data Hold✓
- Auto Power Off30 minutes
- Backlight Display✓
- Tripod Mounting Hole✓
Attributes
- Operating Temperature0~50 °C / less than 90 %RH non-condensing
- Storage Temperature-10~40 °C / less than 70 %RH non-condensing
- Altitude LimitationBelow 1,000 meters
- Power Supply9V battery ((Optional DC 9V adapter))
- Dimensions179 x 65 x 36mm
- Weight210 g (7.4 oz)
- AccessoriesADP-01 AC power adapter (output DC 9V), other K-type temperature probes
