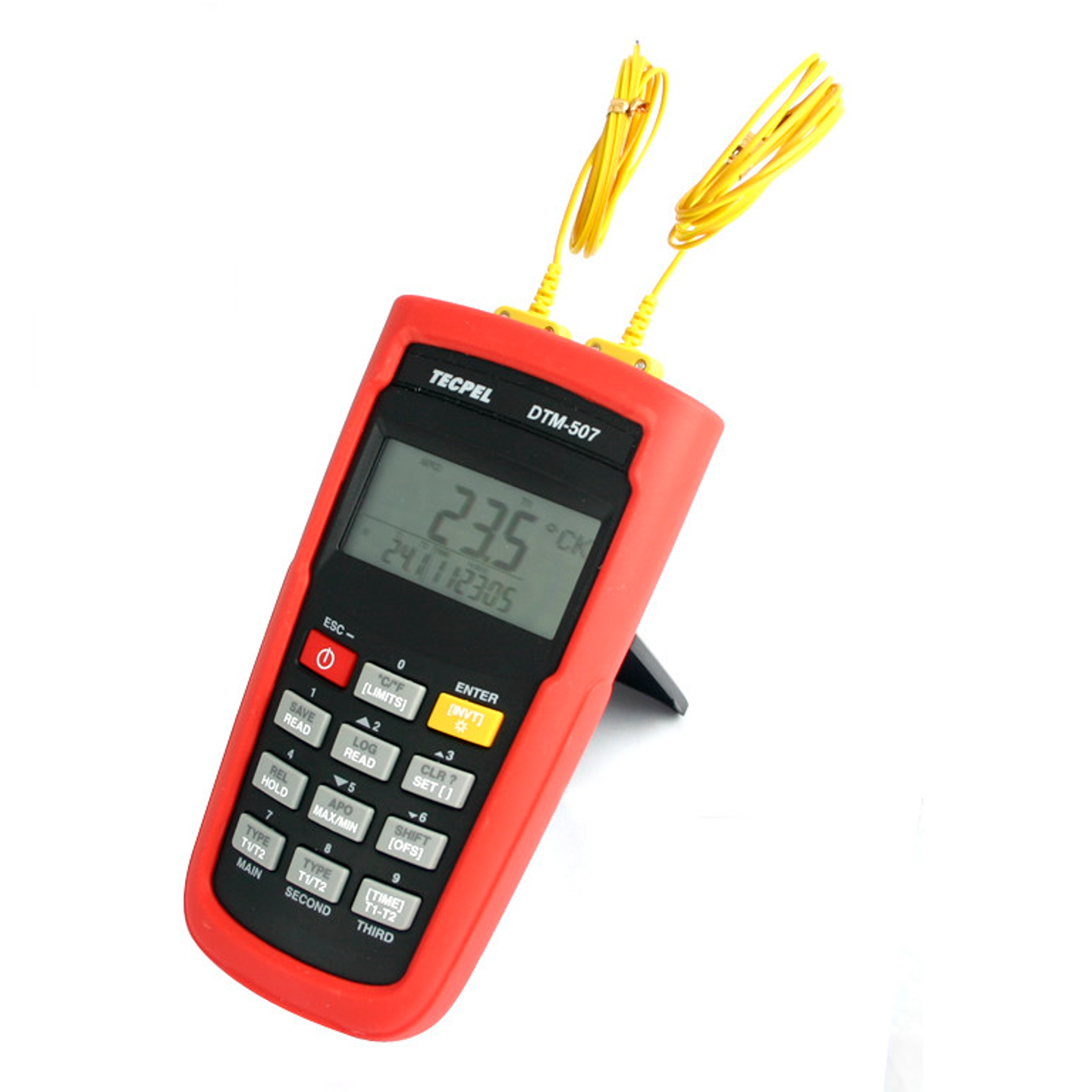

DTM-507 Precision Thermocouple Temperature Recorder

Name: TECPEL DTM-507 Precision Thermocouple Temperature Recorder
Brand: TECPEL
SKU: DTM-507
Price: 4725 TWD
Availability: OutOfStock

Brand TECPEL | Model DTM-507 | 🇹🇼 Taiwan

• Supports K, J, E, T, R, S, N type thermocouple inputs • Simultaneously displays 2 thermocouple temperature signals • Manually stores 128 records, or automatically records 1,024 records • Recording interval is configurable from 1 second to 60 minutes • Includes maximum value, minimum value, relative value modes, and data hold function • Alarm function and low-battery indication • Tripod mounting hole design for easy installation and use • Suitable for teaching and industrial applications

Price NT$ 4,725

Out of Stock

The DTM-507 Multiple type Highly Accuracy Thermocouple Thermometer supports various thermocouple types including K, J, E, T, R, S, and N. Utilizing advanced analog signal sensing chips, it can accurately measure temperature from thermoelectric signals. This instrument is ideal for precision measurement in educational settings, scientific experiments, or industrial production, allowing simultaneous display of two thermocouple temperature signals and providing manual and automatic data recording features for convenient temperature monitoring and data analysis.

Temperature Range-210 ~ 1,767 °C (-346 ~ 2,501 °F)
K-Type-200 ~ 1,372°C (-328 ~ 2,501°F)
J-Type-210 ~ 1,200°C (-346 ~ 2,192°F)
T-Type-200 ~ 400°C (-328 ~ 752°F)
E-Type-210 ~ 1,000°C (-346 ~ 1,832°F)
R-Type0 ~ 1,767°C (-32 ~ 2,212°F)
S-Type0 ~ 1,767°C (-32 ~ 2,501°F)
N-Type-50 ~ 1,300°C (-58 ~ 2,372°F)
Thermocouple TypeK, J, T, S, R)
AccuracyK,J,E,T: ±(0.05% + 0.3°C) / N: ±(0.05% + 0.4°C) / R/S: :±(0.05% + 2°C)
Resolution0.1
Sensor TypeK, J, T, E, R, S, N Type
Sampling Rate400m/s

Time ClockMonth-Day and Time:Minutes
Response TimeAccording to the sensor probe/cable
Maximum Value Recording✓
Minimum Value Recording✓
Relative Mode✓
Data Hold✓
Digital Adjustment✓
Alarm Function✓
Display✓
Data Logging1,024 records
Recording Interval1 second~60 minutes
Auto Power Off✓
T1-T2✓
Low Battery Indicator✓
Tripod Compatibility✓

Operating Temperature0 ~ 50 °C / less than 90 %RH; no condensation
Storage Temperature-10~40 °C / less than 70 %RH; no condensation
Altitude LimitBelow 1,000 meters
CertificationITS-90 temperature standard
Power Supply1.5V Size AAA battery x 4
Dimensions160 x 83 x 38mm
Weight210 g
AccessoriesComputer software set (including software and USB connection cable), TPK-01 sensor wire x2
