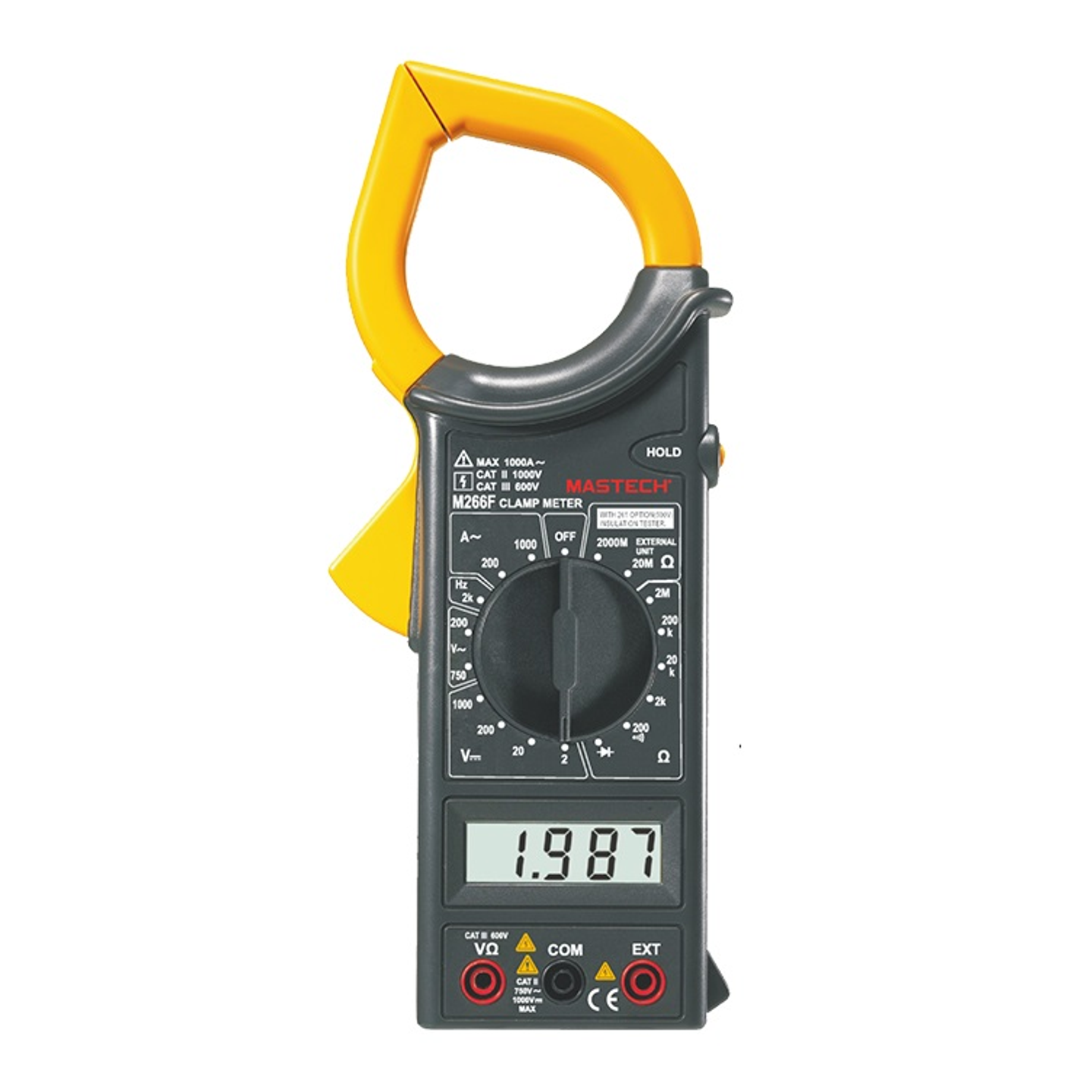

M266F 1000A Digital AC Clamp Meter + Insulation Test 2000MΩ
Brand
MASTECH
|
Model
M266F
|
🇨🇳 China
The MASTECH M266F is a practical, cost-effective digital clamp meter with a 2000-count display, delivering stable and accurate measurement results.
Low battery indication provides added confidence during operation, making it suitable for power maintenance, equipment inspection, and electronics lab applications.
Price
NT$ 872
Out of Stock
Views: 58
Description
This digital clamp meter combines practicality with ease of operation. The 2000-count display and Ø50mm large jaw opening make it easy to handle a wide range of current measurement tasks.
Built-in continuity buzzer test, frequency measurement, and diode test functions improve efficiency in routine maintenance and troubleshooting. The data hold function makes reading and recording values convenient, while the low battery indicator helps prevent work interruptions, making it a reliable assistant for power testing, equipment maintenance, and on-site engineering work.
Specifications
- Display Counts2,000 counts
- Jaw OpeningØ50 mm
- AC Current200 / 1000 A ±(3.0%+10)
- DC Voltage2 / 20 / 200 / 1000 V ±(0.8%+3)
- AC Voltage200 / 750 V ±(1.2%+5)
- Resistance200 / 20k / 2M Ω ±(1.0%+8)
- Insulation Resistance20M / 2000M Ω ±(5.0%+2)
- Frequency2k Hz ±(2.0%+5)
Features
- Data HoldYes
- Low Battery IndicatorYes
- Diode TestOpen-circuit voltage 2.7V
- ContinuityBuzzer < 100Ω
- Insulation Resistance TestYes
- Input Impedance> 9 MΩ
Attributes
- Operating Temperature0 ~ 40 °C / below 85%RH, non-condensing
- Storage Temperature-20 ~ 60 °C / below 75%RH, non-condensing
- Altitude LimitBelow 2,000 m
- Power Supply1 x 9V 6F22 battery
- Dimensions218 × 78 × 35 mm
- Weight268g
- AccessoriesTest leads, battery, carrying case, instruction manual
- CertificationRoHS
- Safety RatingCAT II 1000V / CAT III 600V
