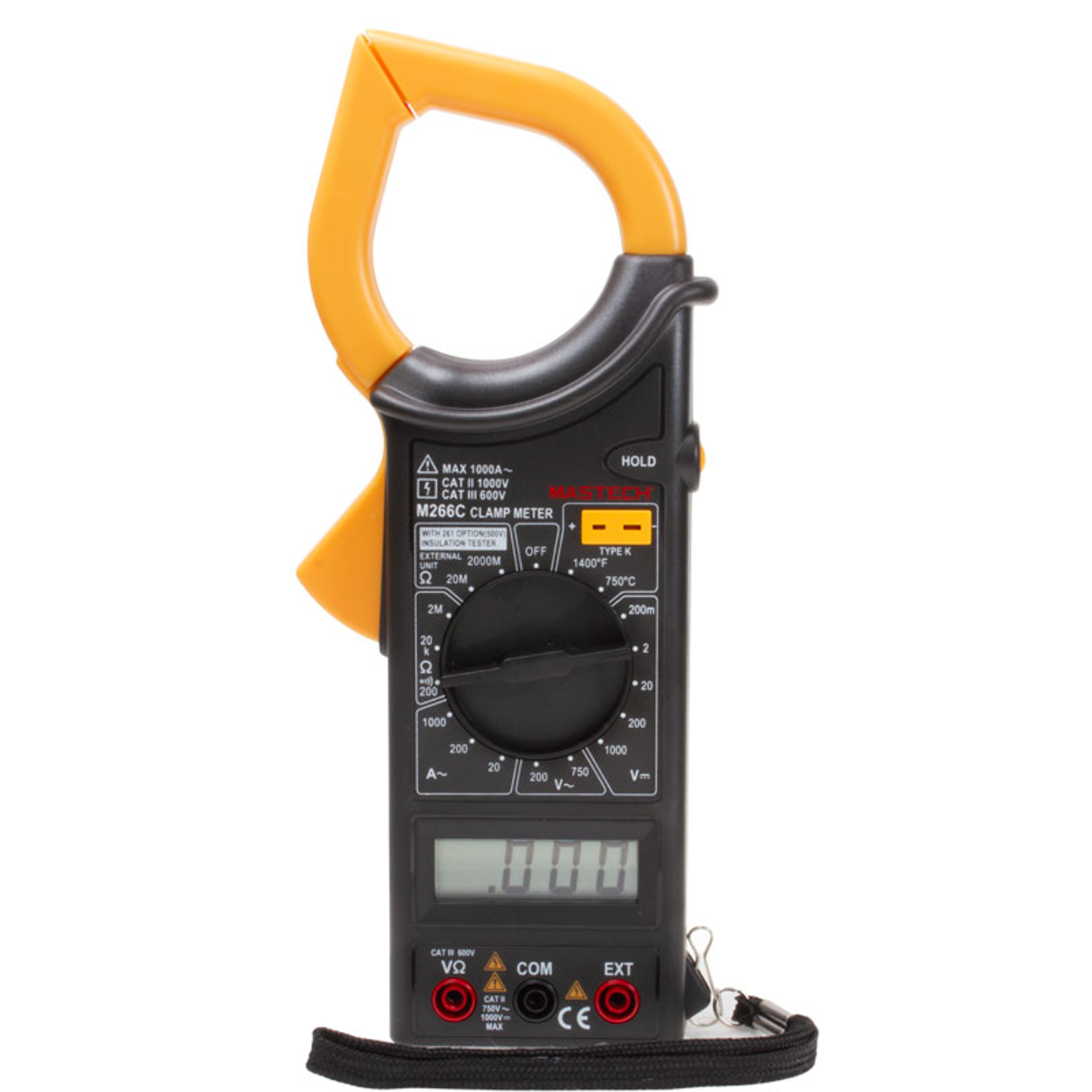

M266C 1,000A/2,000MΩ insulation resistance, temperature and AC Clamp Meter
Brand
MASTECH
|
Model
M266C
|
🇨🇳 China
MASTECH M266C digital clamp meter offers multiple measurement functions:
- Measures AC/DC voltage and AC current
- Measures insulation resistance and thermocouple temperature
- Clamp opening: 50mm/2.0"
- Capable of measuring up to 1000A AC current
- High cost-performance ratio, suitable for various users
Price
NT$ 840
Out of Stock
Views: 0
Description
The MASTECH M266C is a versatile entry-level digital clamp meter designed for users who require a variety of measurement functions. This device can accurately measure temperature, insulation resistance, and both AC and DC voltage and current. Its convenient features such as data hold and low battery indication enhance the user experience, making it an ideal choice for electronics enthusiasts, engineers, and educational institutions.
Specifications
- 精確度2,000位數
- 鉗口開度Ф50mm/2.0"
- 交流電流20A 10mA ±(4.0%+5) 200A 0.1A ±(2.5%+5) 1000A 1A ±(3.0%+10)
- 直流電壓200mV 0.1mV ±(0.5%+1) 2V/20V/200V 1mV/10mV/0.1V ±(0.5%+3) 1000V 1V ±(0.8%+3)
- 交流電壓200V 0.1V ±(1.0%+5) 750V 1V ±(1.2%+5)
- 電阻200Ω 0.1Ω ±(1.0%+5) 20kΩ 10Ω ±(1.0%+8) 2MΩ 1kΩ ±(1.0%+8)
- 量測範圍0℃~400℃ (32℉~752℉) 1℃ ±(1.0%+3) 401℃~750℃ (752℉~1382℉) 1℉ ±(2.0%+3)
- 絕緣電阻20MΩ 10kΩ ±(2.0%+2) 2000MΩ (Note<500M) 1MΩ ±(4.0%+2) 2000MΩ (Note>500MΩ) 1MΩ ±(5.0%+2)
Features
- 輸入阻抗> 9 MΩ
- 數值鎖定有
- 低電量指示有
- 溫度測量有
- 絕緣阻抗測試有
- 鉗口開度Ф50mm/2.0"
- 量測範圍0℃~400℃ (32℉~752℉)
- 最大交流電流1000A
- 支持的電壓類型交流/直流
- 適用範圍電子愛好者及工程師
Attributes
- Operating Temperature0 to 40°C / lower than 85 %RH without dew。
- Storage Temperature-20 to 60°C / lower than 75 %RH without dew。
- Elevation LimitationLower than 2,000 meters
- Power Supply1×9V 6F22 Battery
- Dimensions218mm×78mm×35mm/8.9"×3.1"×1.4"
- Weight268/0.59磅
- AccessoryTest Lead、 K type thermocouple bead probe、 Battery 、 Carrying Bag、Manual
- CertificationRoHS
- Safety RatingCAT II 1000V/ CAT III 600V
