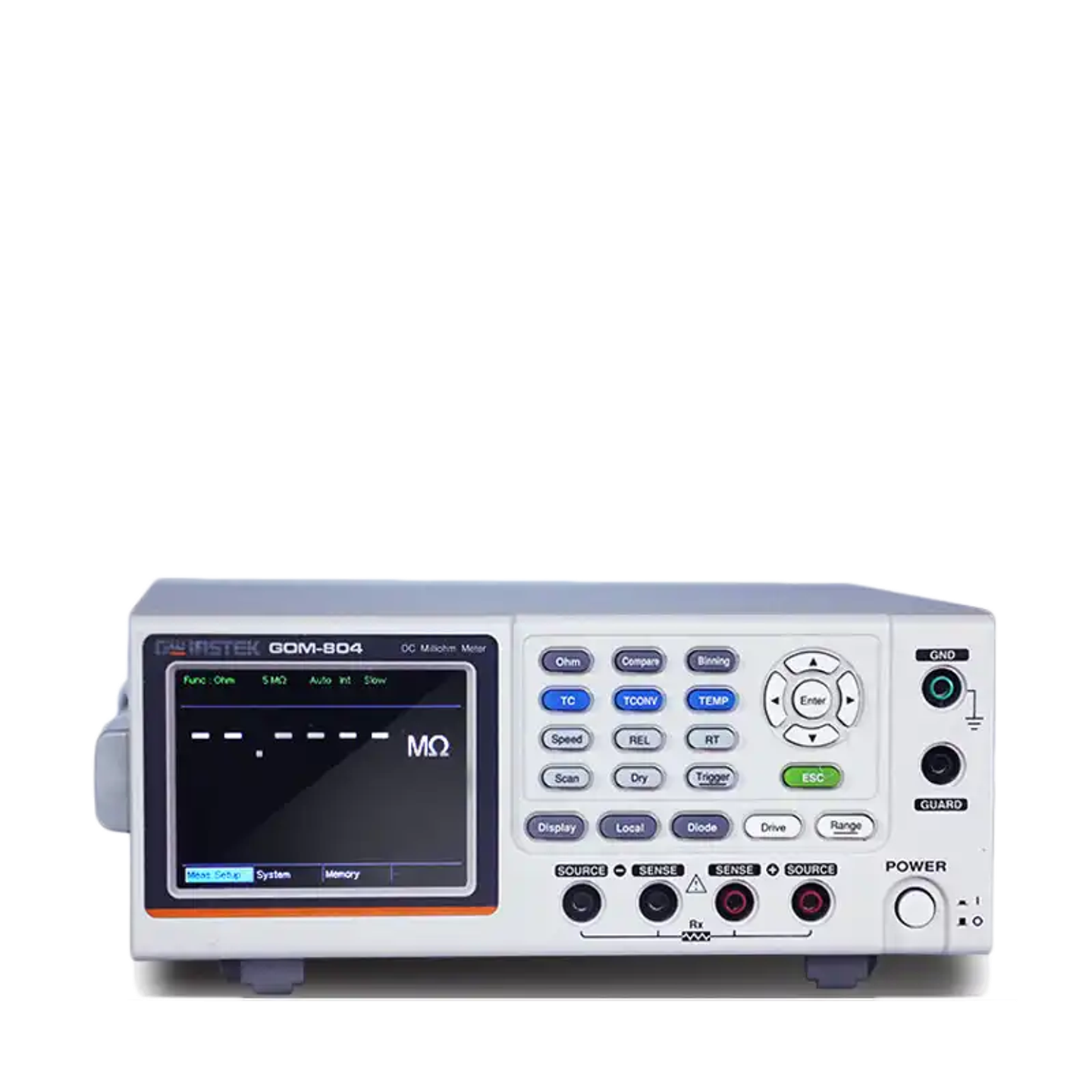

Micro-Ohm Tester
Brand
GWINSTEK
|
Model
GOM-804
|
🇹🇼 Taiwan
• Utilizes pulse current technology to minimize heating effects during measurement.
• Suitable for measuring low resistance items such as conductors and media.
• Equipped with DC current output mode, ideal for inductive component testing.
• Offers various measurement ranges to meet different needs.
Out of Stock
Views: 1
Description
The GOM-804 Micro-Ohm Tester is designed for precise measurement of low resistance, suitable for testing conductors and other medium impedances. This instrument offers accurate readings through DC current output mode, making it ideal for inductive component applications. Its pulse current technology effectively reduces thermal effects caused by electromotive force, ensuring measurement accuracy and widely used in electronic testing and maintenance.
Specifications
- 精確度約 ±(0.05%) 視量測檔位
- 取樣率快速：60 Time/s 慢速：10 Time/s
- 電阻5m / 50m / 5 / 50 / 500 / 5K / 50K / 500K / 5MΩ
- 溫度範圍-50~399.9°C
- 解析度0.1µΩ
Features
- 驅動勢DC+
- 波形觸發手動、外部
- 資料傳輸USB、RS232、GPIB(限工廠組裝)
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Display3.5`(320x240) TFT LCD
- Power SupplyMax 25VA
- Dimensions223 × 102 × 283 mm
- Weight3kg
- AccessoryQuick guide x 1, power cord x 1, test lead GTL-308 x 1, CD x1 (electronic file of the complete user manual)
