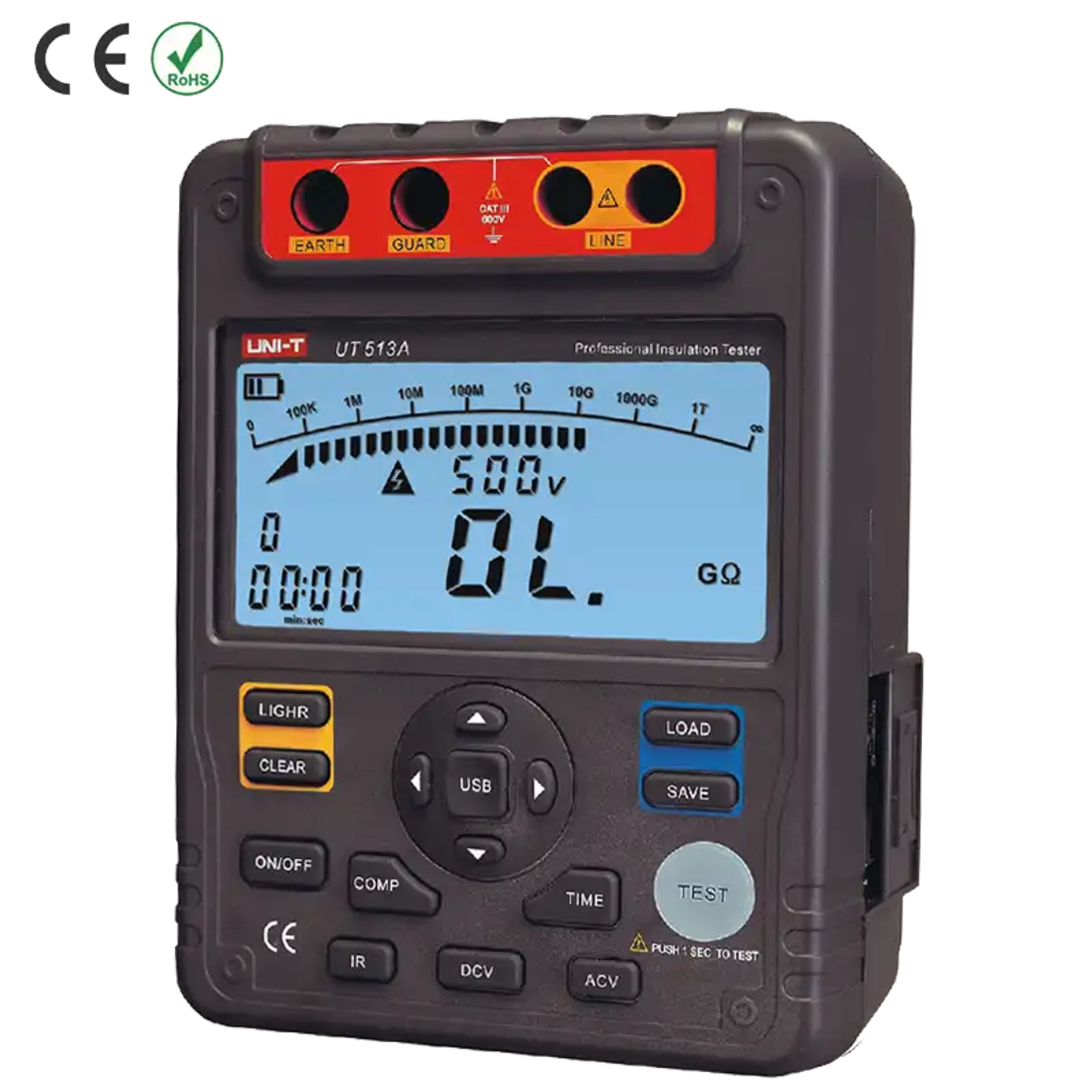

Insulation Resistance Tester
Brand
UNI-T
|
Model
UT-513A
|
🇨🇳 China
The UT-513A offers both low and high resistance measurement ranges,
with selectable high voltage output options of 500V, 1,000V, 1,500V, and 2,500V.
It includes USB data transmission, can record up to 18 data points,
and features a 30-segment analog bar and a 15-minute timer setting.
Price
NT$ 6,720
Out of Stock
Views: 277
Description
The UT-513A Insulation Resistance Tester is designed for rapid assessment of insulation capabilities in various electromechanical equipment, such as large transformers, current transformers, generators, high-voltage motors, and cables. It features insulation resistance testing with PI (Polarization Index) and DAR (Dielectric Absorption Ratio) functions, allowing users to record and analyze data to accurately determine insulation conditions and ensure safe operation of equipment.
Specifications
- Short Circuit Current小於 3mA
- Test Voltage0.5M~20G Ω ±(3%+5)
- Insulation Range2.5M~100G Ω ±(3%+5)
- 5,000V 測試電壓5.0M~1,000G Ω ±(3%+5)
- DC Voltage600 V ±(2%+3)
- AC Voltage600 V ±(2%+3)
- Output Voltage0~20%
Features
- Data TransmissionUSB
- Data Logging18 筆
- Analog Bar Graph30格
- Timer Setting15分鐘
- High Impedance Mode500V/1,000V/1,500V/2,500V
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyDC 1.5V Battery(LR14) x 8
- Dimensions202 x 155 x 94 mm
- WeightApprox. 2,000 g
- AccessoriesBattery, Carrying Case, CD, Alligator clip test lead, Manual
