10A微歐姆計
Brand
TECPEL
|
Model
UO-9010A
|
🇹🇼 Taiwan
The UO-9010A 10A Micro-Ohm Meter features:
- High-precision low resistance measurement

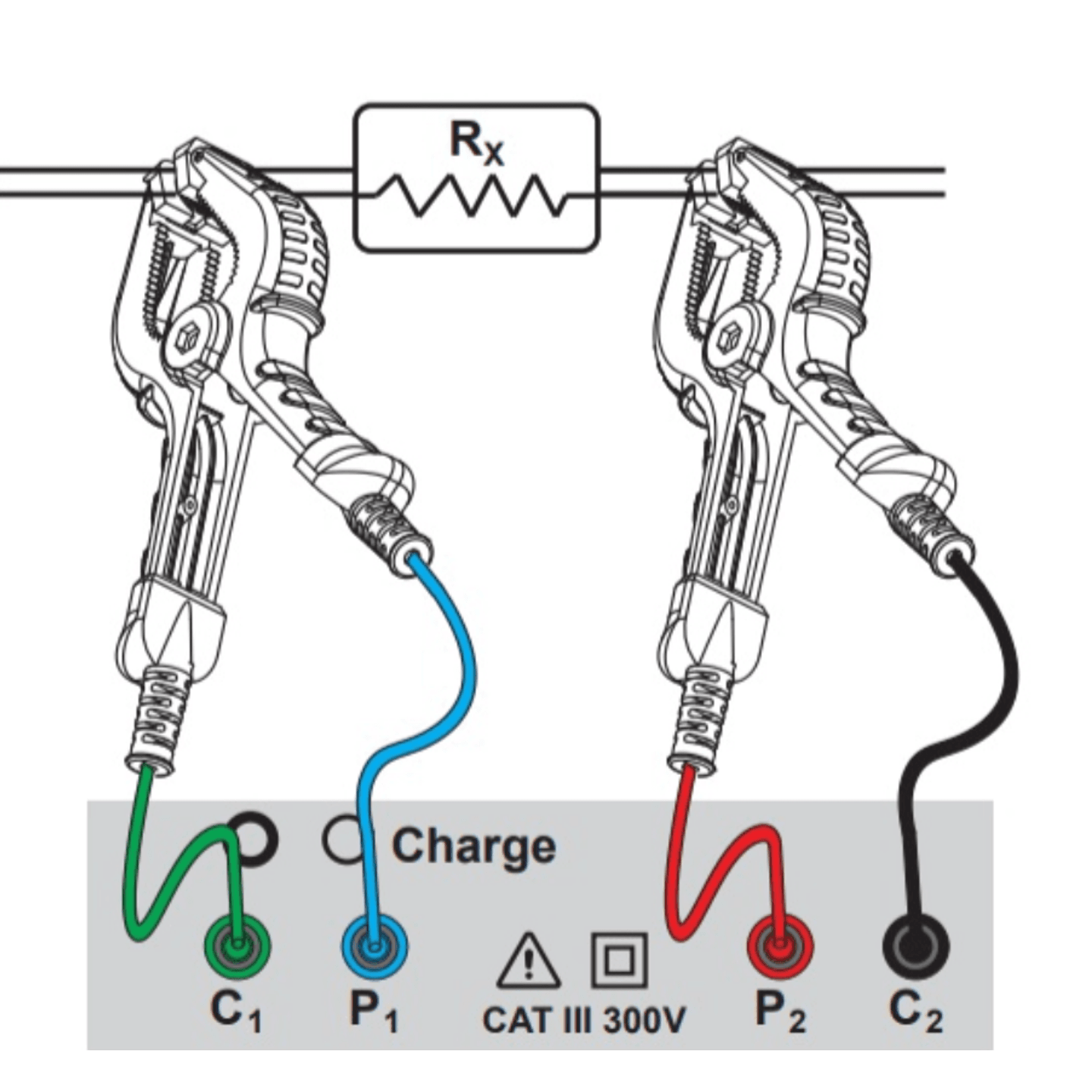

- Four-wire measurement technology
- Multiple measurement range options
- Suitable for various testing needs
- Rugged and durable design
- User-friendly operation interface
Out of Stock
Views: 4
Description
The UO-9010A 10A Micro-ohmmeter is a high-precision test instrument designed specifically for accurate measurement of low resistance values.
This instrument adopts advanced four-wire measurement technology to ensure outstanding accuracy across various measurement ranges, making it ideal for low-impedance testing of electronic components, cables, and circuit boards.
Its rugged design and user-friendly operation interface enable stable performance even in harsh environments.
Specifications
- Measurement Method4-wire measurement
- Resistance Range10A: 200.0μΩ / 2000μΩ, 1A: 20.00mΩ / 200.0mΩ, 100mA: 2.000Ω / 20.00Ω, 10mA: 200.0Ω
- Resolution200.0μΩ / 0.1μΩ, 2000μΩ / 1μΩ, 20.00mΩ / 0.01mΩ, 200.0mΩ / 0.1mΩ, 2.000Ω / 1mΩ, 20.00Ω / 0.01Ω, 200.0Ω / 0.1Ω
- Accuracy200.0μΩ ~ 2000μΩ: ±(2% + 8dgt), 20.00mΩ ~ 200.0Ω: ±(1% + 4dgt)
- Safety RatingEN 61010-1 CAT III 300V, EN 61326-1
Features
- 量測範圍多種選擇
- 精確度高準確度
- 四線法測量支援
Attributes
- Operating Environment0 ~ 40 °C / below 80% RH
- Storage Environment-10 ~ 50°C / 80% RH
- Power SupplyRechargeable Battery DC14.8V 5200mAh 79.69Wh
- Dimensions322(L) × 260(W) × 135(D)mm
- WeightApprox. 3137 g
