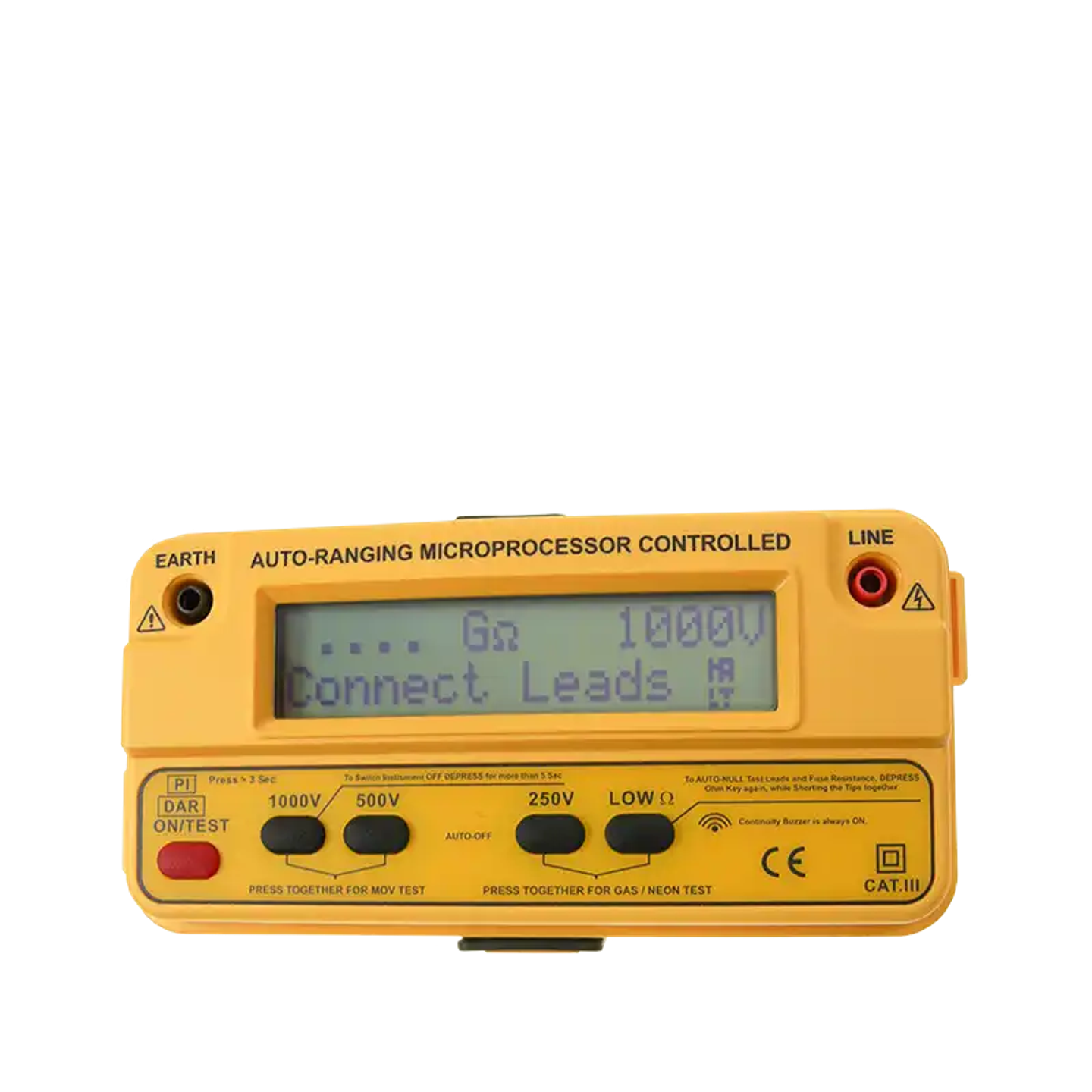

Insulation Resistance Tester
Brand
TECPEL
|
Model
DIM-572
|
🇹🇼 Taiwan
The DIM-572 offers high voltage and low resistance testing capabilities, suitable for testing various resistance objects.
- Three selectable test voltages: 250V, 500V, 1000V
- Display quickly shows analog bar graph
- Built-in timer function, adjustable up to 30 minutes
- Records up to 18 test data points
Out of Stock
Views: 172
Description
The DIM-572 Insulation Resistance Tester features microprocessor control and a wide LCD display that quickly shows test voltage through an analog bar graph. It offers three test voltage options: 250V, 500V, and 1000V, suitable for high-voltage power output testing to ensure adequate resistance between two points. This device is designed for evaluating the insulation properties of electrical equipment, widely used in electrical, electronic, and industrial fields.
Specifications
- Test Voltage2K~2G Ω
- Resolution0.01 / 0.1 / 1M Ω
- Accuracy±(3%)@ 大於 1M / ±(5%)@ 介於30K~1M / ±(20%)@ 小於 30K Ω
- Output Voltage0.01~1,999Ω ±(1%+3)
- DC Voltage950 V
- AC Voltage700 V
Features
- Data Logging18 筆
- Analog Bar Graph30格
- Timer Setting最久 30分鐘
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyDC 1.5V Battery (LR14) x 8
- Dimensions202 x 155 x 94 mm
- WeightApprox. 1,200 g
- AccessoriesBattery, Carrying case, Alligator clip test lead, Manual
