Contact Tachometer
Brand
SHIMPO
|
Model
DT-105N
|
🇯🇵 Japan
The DT-105N Contact Tachometer is known for its high precision, fast updates, and versatile measurement units, catering to users needing precise rotational speed measurements.
Key features include:
- Over-range indication
- Approximately 65 hours of battery life
- Powered by 2 x 1.5V AA batteries
- Max/Min value functionality
Out of Stock
Views: 0
Description
The DT-105N Contact Tachometer is a precision instrument designed for measuring rotational speeds across various industrial applications. With a 5-digit LCD display, it offers multiple measurement units and features a durable aluminum alloy casing, making it suitable for harsh industrial environments while ensuring accuracy and reliability.
Specifications
- 顯示範圍0.10 - 25,000RPM
- 精確度±0.06 rpm: 0.10 - 999.9 rpm; ±0.6 rpm: 1,000.0 - 9,999.9 rpm; ±0.006% of reading ±1 digit (±2 rpm max.) 25,000 rpm
- 顯示器5 位數，12 mm 高 LCD
- 量測單位轉速: RPH, RPM; 英尺: FPH, FPM; 英里: MPH; 碼: YPH, YPM; 吋: IPM; 米: mPH, mPM; 長度: m, cm, inch, feet, yards; 總轉數: REV
- 記憶系統可儲存13組讀數, 保留5分鐘
- 偵測光耦合器，60脈衝/轉
- 更新時間1秒
Features
- 超量程指示數字閃爍
- 電池壽命約 65 小時
- 電源需求2顆 1.5V AA 電池
- 最大/最小值是
Attributes
- Operating Temperature0° - 45°C
- ConstructionDie-cast aluminum housing
- DimensionsL 182.5 mm x W 60 mm x H 46 mm
- Weight400 g

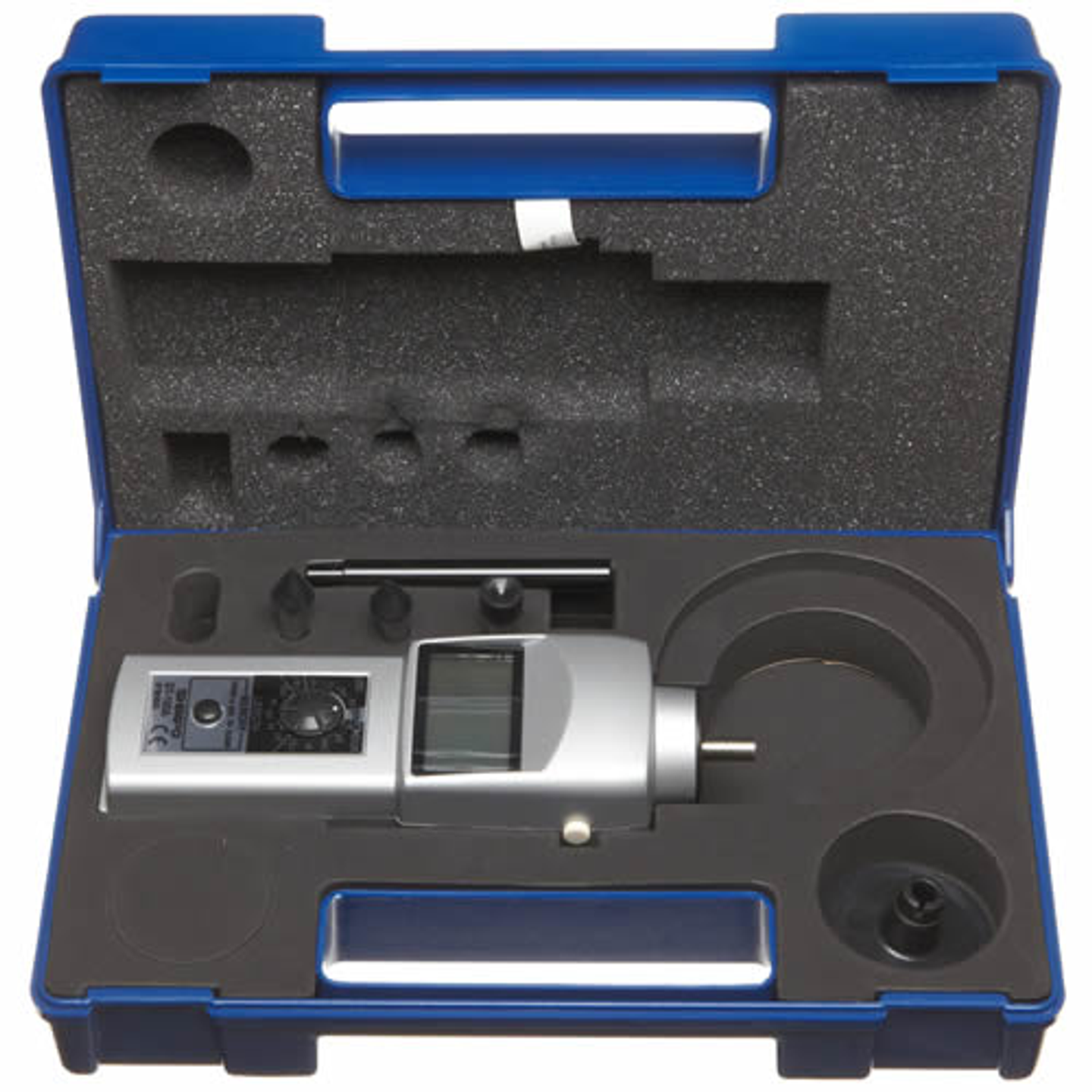

- AccessoryTwo AA Batteries, cone and funnel adapters, extension shaft, carrying case, NIST certificate, master wheel (6” dia.)
