雷射光電/接觸兩用轉速計

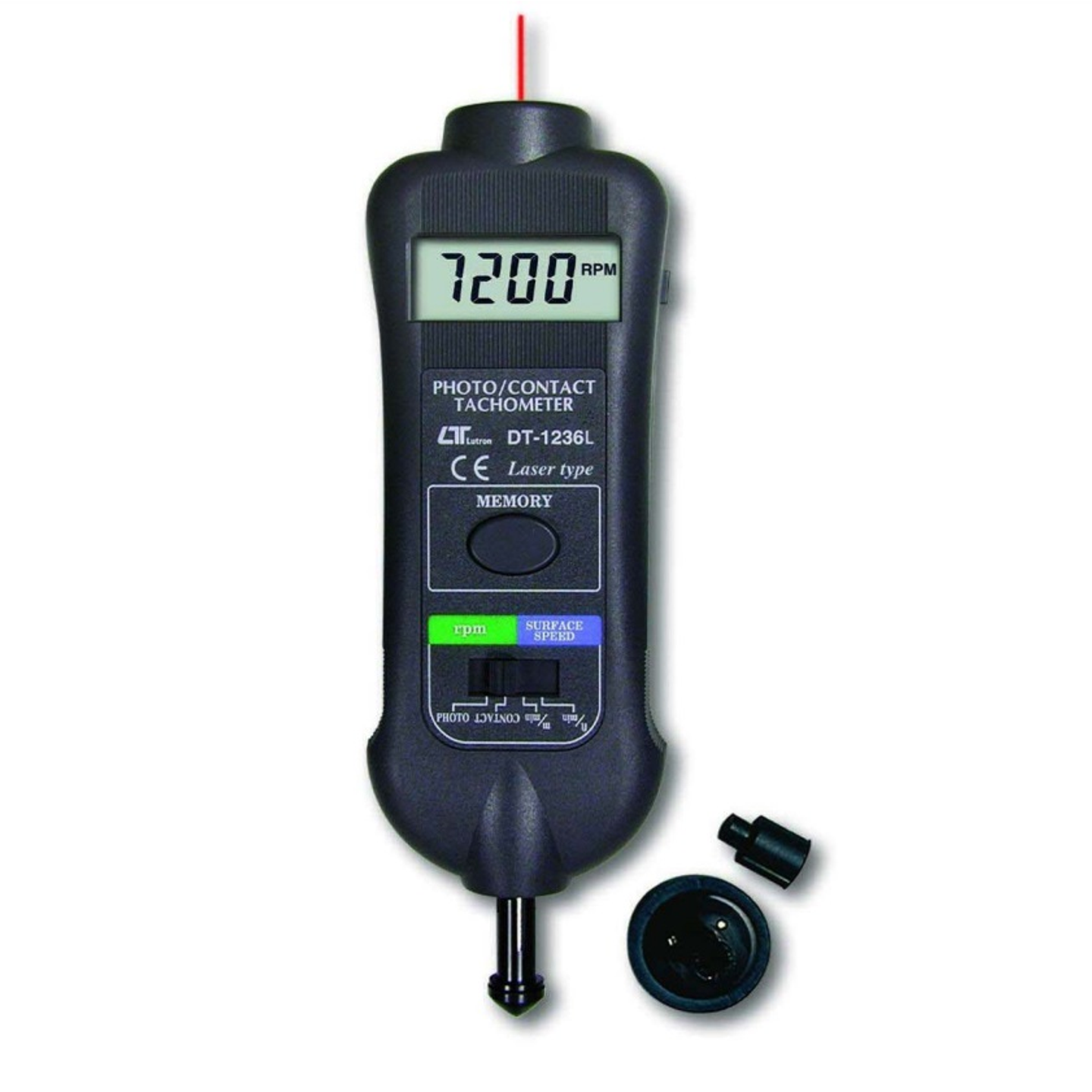

Name: LUTRON DT-1236L 雷射光電/接觸兩用轉速計
Brand: LUTRON
SKU: DT-1236L
Price: 7625 TWD
Availability: OutOfStock

Brand LUTRON | Model DT-1236L | 🇹🇼 Taiwan

Lutron DT-1236L tachometer combines photo and contact measurement methods, covering RPM and surface speed (m/min, ft/min), making it suitable for various industrial applications. With an accuracy of ±0.05% + 1 digit, it can automatically record maximum, minimum, and last measured values, and is equipped with a high visibility LCD display to provide clear and accurate readings.

Price NT$ 7,625

Out of Stock

Lutron DT-1236L offers high precision and a wide range of photo and contact tachometer measurements. Its multifunctional design and automatic memory feature make it an ideal choice for industrial measurements. A tachometer is a vital instrument in mechanical engineering, designed to accurately measure the rotational speed (RPM or frequency) of electronic machinery. It finds extensive application across various manufacturing industries, including electrical appliances, electric fans, paper production, plastics, synthetic fibers, washing machines, automotive, aerospace, and marine engineering.

Measuring Range0.5 ~ 19999 RPM
Surface Speed Range0.05 ~ 1999.9 m/min, 0.2 ~ 6560 ft/min
ResolutionRPM: 0.1 RPM ( < 1000 RPM ), 1 RPM ( ≥ 1000 RPM )
Display5 digits, 10 mm ( 0.4" ) LCD.
Accuracy± ( 0.05% + 1 digit )
Detecting Distance5 ~ 200 cm
Light Intensity1 mW class 2 laser diode
Time BaseQuartz crystal
CircuitExclusive one-chip microcomputer LSI circuit
Power SupplyPhoto mode: Approx. DC 21 mA, Contact mode: Approx. DC 7 mA
Operating Temperature0 ~ 50 ℃ (32 ~ 122 ℉)
Operating HumidityLess than 80% RH
Weight280g (including batteries)
Dimensions215 x 67 x 38 mm ( 8.5 x 2.6 x 1.5 inch )
AccessoryCarrying case 1 PC, Reflecting tape (600 mm) 1 PC, Spare RPM cone rubber 1 PC, Spare RPM funnel rubber 1 PC, Surface speed test wheel 1 PC, Operation manual 1 PC
