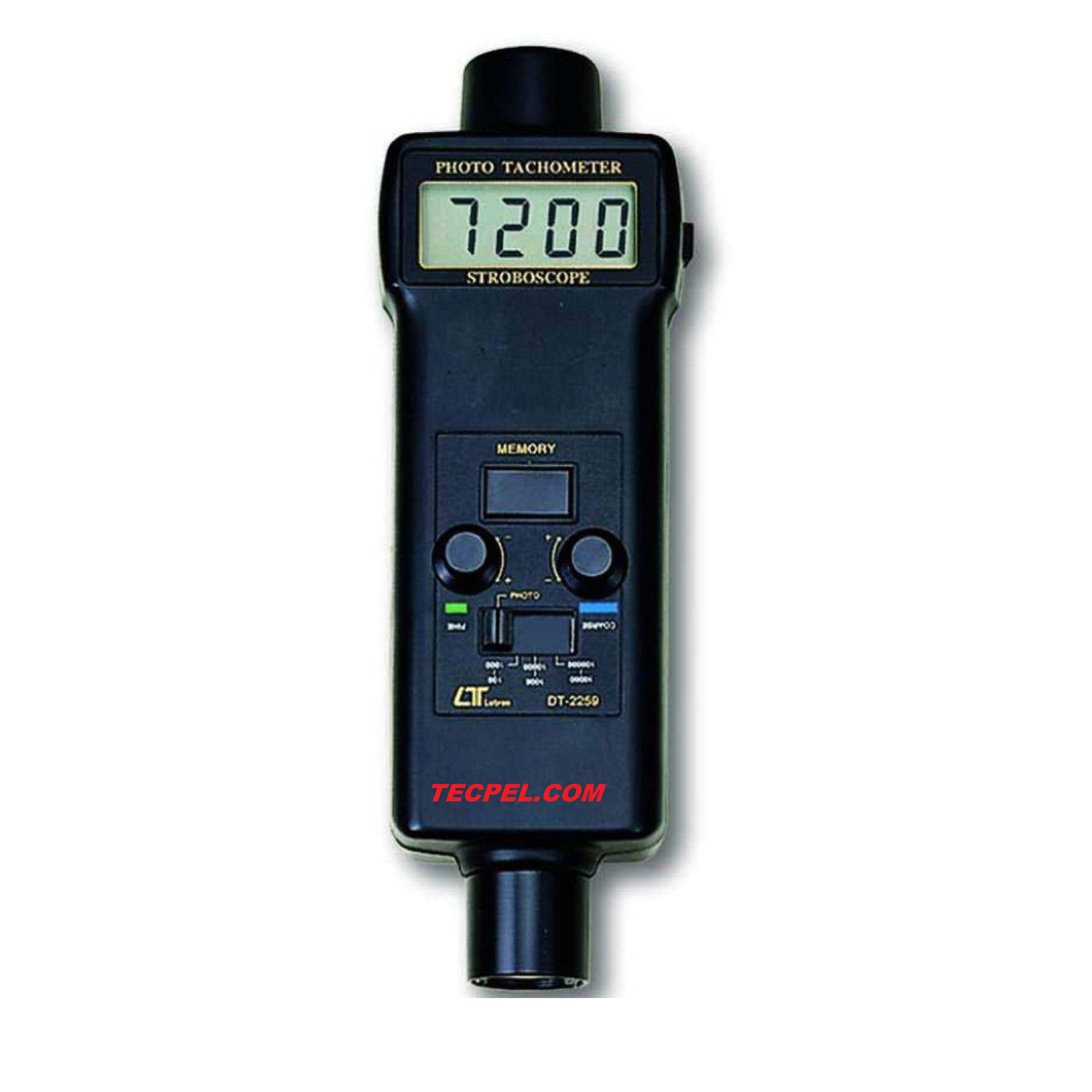

光學/閃頻兩用轉速計

Brand LUTRON | Model DT-2259 | 🇹🇼 Taiwan

• Advanced microprocessor technology provides accurate and stable speed measurements • Digital Optical Tachometer: Non-contact measurement range from 0.5 to 100,000 RPM • Digital Stroboscopic Tachometer: Measurement range from 100 to 100,000 RPM with precise display • Memory function records last, maximum, and minimum values • High visibility LCD display for easy reading • Durable ABS plastic housing with ergonomic design • Portable, powered by 4 x 1.5V batteries

Out of Stock

The DT-2259 Optical/Stroboscopic Dual-Purpose Tachometer is a high-precision instrument designed for industrial equipment, offering a wide range of speed measurement capabilities. It accurately measures the speed of various devices such as gears, fans, centrifuges, pumps, and motors. Equipped with advanced microprocessor technology, it ensures stable and precise data display, making it ideal for both field testing and routine maintenance.

Display5位，10 mm（0.4吋）LCD顯示
Accuracy±0.1%
Sampling Rate1秒（60 RPM）
時間基準石英晶體
Advanced Circuitry專用單晶片微處理器電路
Operating Temperature0 ~ 50 ℃
Operating Environment Humidity80% RH 以下
Weight300 克 (含電池)
Dimensions215 x 65 x 38 mm
Accessories攜帶箱, 使用說��書1份
Measuring Range100 ~ 100,000 FPM/RPM
Resolution0.1 FPM/RPM (<1,000 FPM/RPM), 1 FPM/RPM (≥1,000 FPM/RPM)

Accuracy±0.1%
Digital Display高精度 LCD 顯示屏
Memory Function記錄最大/最小/最後值
能源效率高是
Max/Min是
Portability是
Measuring Range100 ~ 100,000 FPM/RPM
閃光燈高效橙色 LED 燈

Operating TemperatureTemperature 0 ~ 50 ℃, Humidity below 80% RH
Storage TemperatureTemperature -20 ~ 60°C, Humidity below 80%RH
Altitude LimitShould be below 2,000 meters
Power Supply4 x 1.5V batteries
Dimensions215 x 65 x 38 mm
Weight300 grams (including battery)
