Optical / Contact Tachometer
Brand
SHIMPO
|
Model
DT-205NRC
|
🇯🇵 Japan
Key features of the DT-205NRC include:

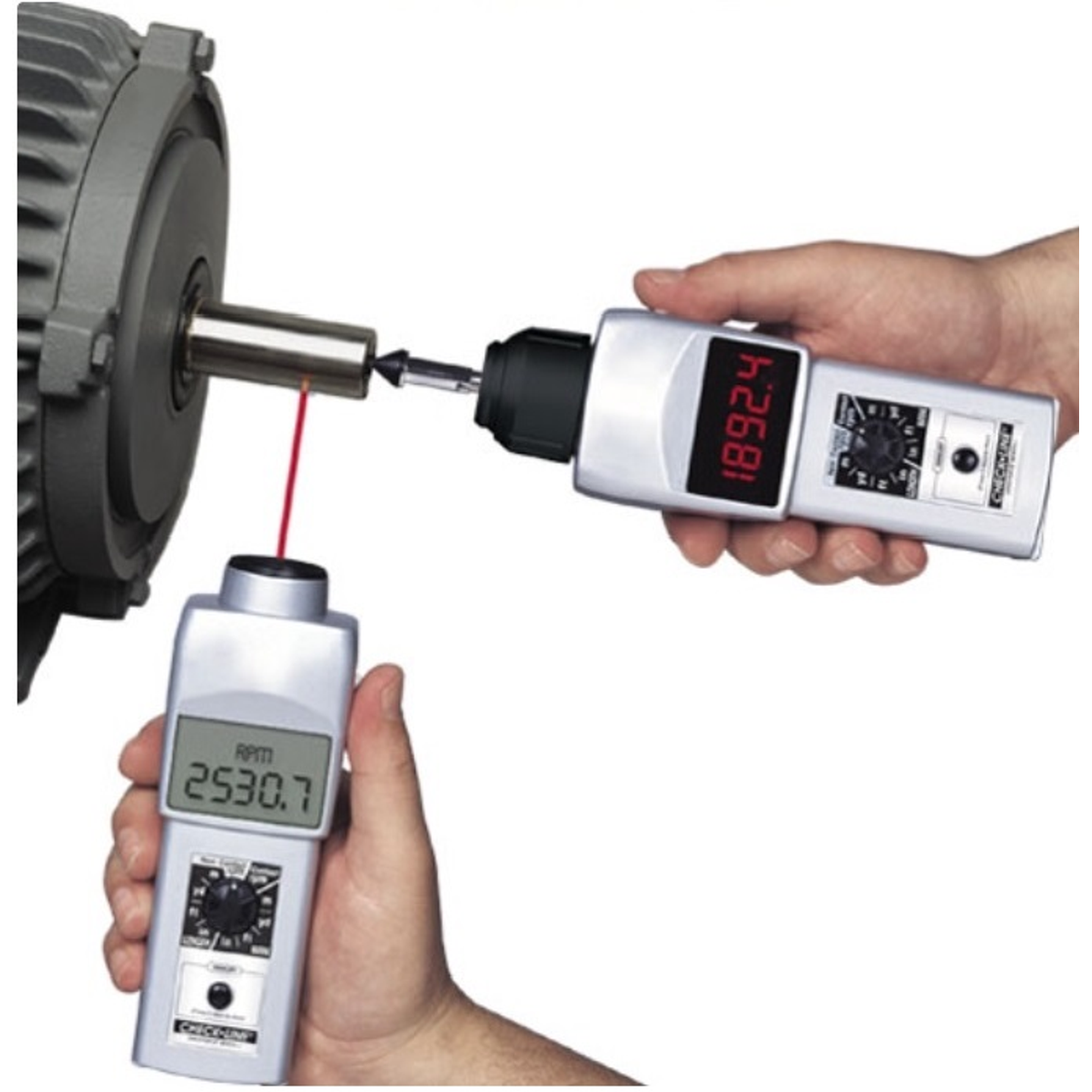

- Two measurement modes: contact and optical reflection
- Contact measurement range: 0.8 to 25,000 RPM
- Optical reflection measurement range: 6.0 to 99,999 RPM
- Memory function for maximum, minimum, and ten recorded values
- Auto power-off function after approximately 5 minutes of inactivity
- Low battery indication feature
Out of Stock
Views: 0
Description
The DT-205NRC is an optical/contact tachometer produced by Japan's SHIMPO, featuring high accuracy and reliability for a variety of measurement needs. This tachometer can not only measure rotational speed but also length and speed, equipped with a memory function that stores maximum, minimum, and final measurement values, allowing for up to ten data records, making it especially suitable for professionals requiring precise measurements.
Specifications
- 精確度±(0.006%＋1)
- 光學範圍6~99,999 RPM
- 接觸範圍0.8~25,000 RPM
- 表面移動0.05~19,99.9 m/min
- 解析度0.1 RPM / 0.01 m/min
- 非接觸測試距離5~15mm
- 顯示更新1秒
Features
- 自動關機約 5分鐘
- 量測記錄10筆
- 安全等級數值閃爍
- 低電量指示LO BAT
- 測量方式光電/接觸兩用
- 多功能測量長度、速度、回轉數
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V Battery (AA) x ２
- Dimensions167 x 60 x 46 mm
- Weight365g
- AccessoryCarrying case, Reflective paper (35 pieces), Contact cone head x2, Contact funnel head, Extension rod, Surface speed test roller, Manual
