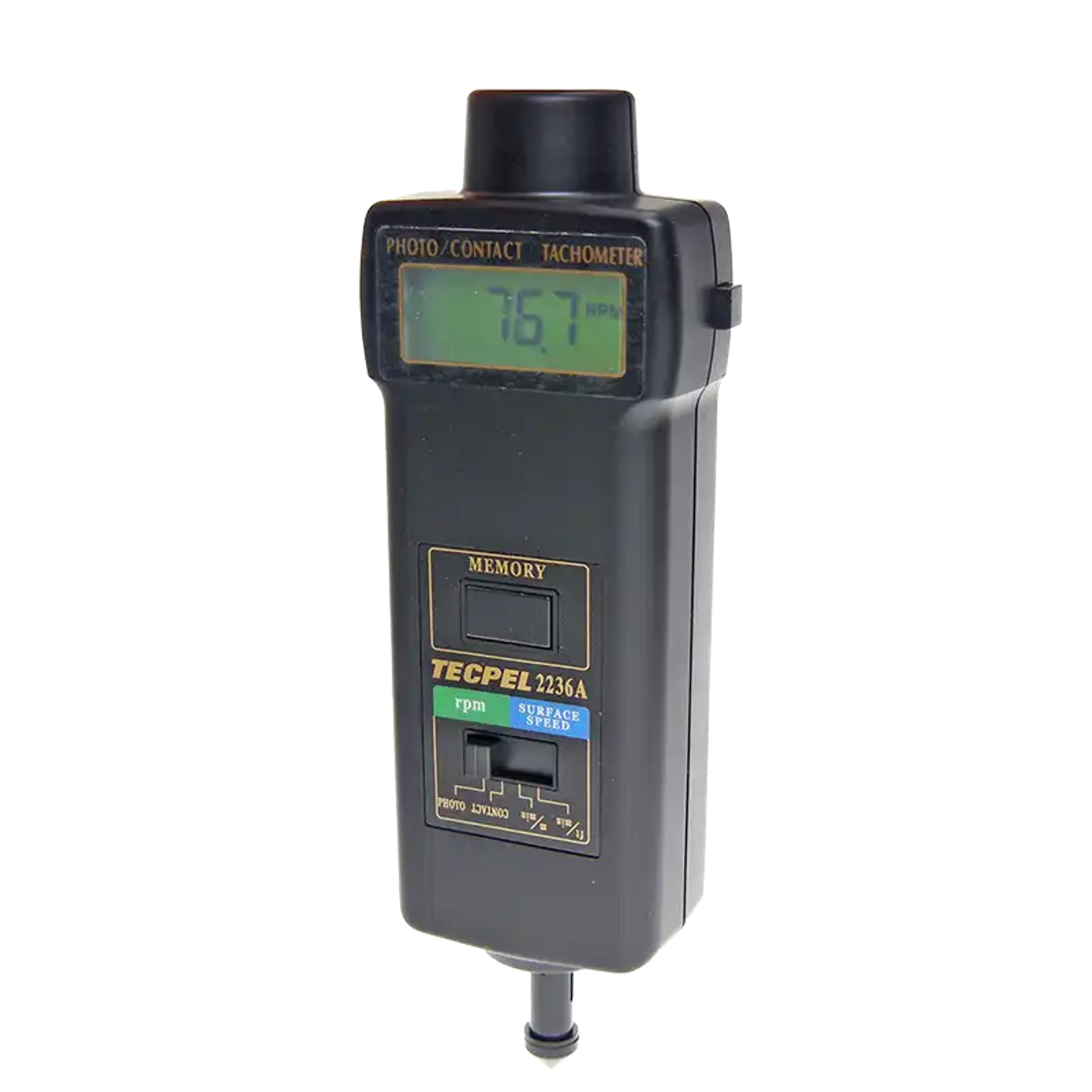

Optical / Contact Tachometer
Brand
TECPEL
|
Model
DT-2236A
|
🇹🇼 Taiwan
The DT-2236A is a high-precision optical/contact tachometer suitable for a variety of speed measurement needs. Key features include:
Optical and contact measurement methods for flexible application scenarios.
High-precision measurements ensure accurate results.
Multiple speed unit options, including RPM, m/min, and ft/min.
Clear LCD display for easy data reading.
Automatic range selection improves measurement accuracy.
Maximum/minimum value recording for tracking changes.
Automatic shut-off feature to extend battery life.
Price
NT$ 5,565
Out of Stock
Views: 55
Description
The DT-2236A Optical/Contact Tachometer is a high-performance instrument designed for measuring the rotational speed of machinery or equipment. Utilizing a high-sensitivity sensor and a 4MHz clock chip, it quickly senses the rotational speed of the target, ensuring accurate measurements even in unstable conditions. The instrument supports both optical and contact measurement methods and features an easy-to-read LCD display for convenient data retrieval. Automatic range selection and maximum/minimum value recording further enhance usability, making it an indispensable tool in various industrial and mechanical applications.
Specifications
- Display Counts5位數
- Measuring Range5.0~99,999 RPM
- RPM Range0.5～19,999 RPM
- 表面移動0.05~1,999.9 公尺/分鐘
- Resolution5~30mm
- Accuracy1秒
- Display Update小於1秒
Features
- Measurement UnitRPM、m/min、ft/min
- Display5 digits
- Auto Power Offabout 5 seconds
- Crystal Oscillator4MHz
- Optical/Contact SwitchYes
- Air Velocity Measurement UnitProduct: DT-2236A, Campo: Función de medición
- 測量單位_esRPM、m/min、ft/min
- 光學/接觸切換_esSí
Attributes
- Operating Temperature0~50°C / less than 70%RH non condensing
- Storage Temperature0~50 °C / less 80%RH non condensing
- Altitude Limitless than 1,000 M
- Power Supply4×1.5VAA（UM-3）
- Power ConsumptionOptical ：approx. DC153mA, Contact ：Approx. DC10mA
- Dimensions172 x 63 x 36 mm
- Weight190g (含電池)
- AccessoriesCarrying case, reflective paper (60cm), contact cone head, contact funnel head, surface speed test roller, surface speed head, instructions
