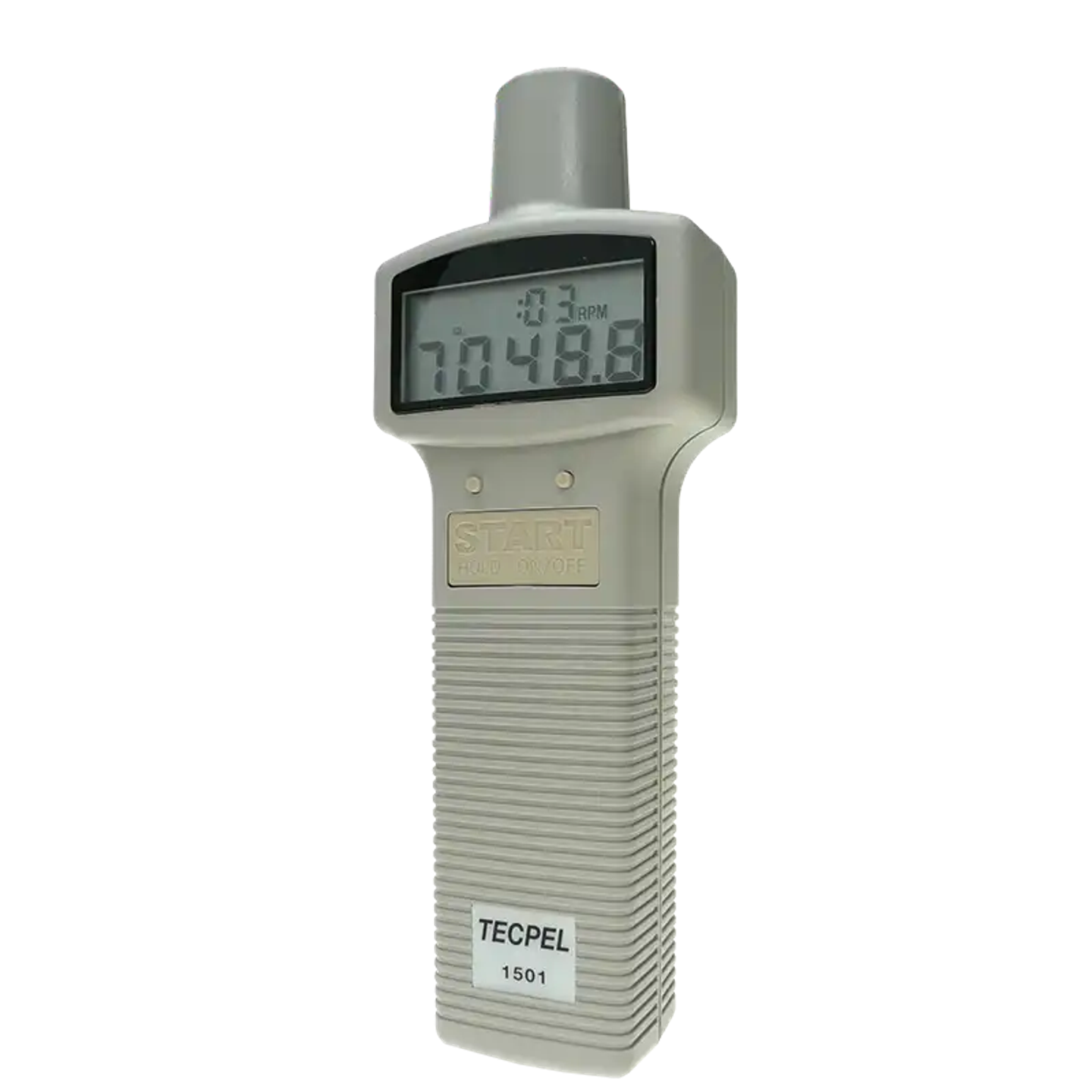

Optical Tachometer Computer connection
Brand
TECPEL
|
Model
RM-1501
|
🇹🇼 Taiwan
• High accuracy and reliability
• Supports multiple speed units
• RS232 computer connection
• Quartz oscillator 4MHz
• Non-contact measurement distance 5~30mm
Downloads
Price
NT$ 5,250
Out of Stock
Views: 48
Description
The RM-1501 Optical Tachometer is a high-precision measuring instrument that can quickly and safely sense the rotational speed of targets without direct contact with the shaft. This device utilizes infrared technology to provide accurate speed measurements, suitable for testing various motors and rotating machinery, and can connect to a computer for data analysis and storage.
Specifications
- Accuracy±(0.04%+2 RPM)
- Measuring Range10.00~99,999 RPM
- Frequency0.2~2,000 RPS
- 表面移動 m/min1.000~2,999.9 公尺/分鐘
- 表面移動 ft/min4.00~10,000 英尺/分鐘
- 表面移動 yard/min2.00~3,000 碼/分鐘
- Resolution0.01 RPM ／ 0.001 m/min ／ 0.01 ft/min ／ 0.01 yard/min ／ 0.001 Hz
- Distance Range5~30mm
Features
- CommunicationRS232
- Crystal Oscillator4MHz
Attributes
- Operating Temperature0~50°C / lower than 70%RH without dew。
- Storage Temperature0~50 °C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyPhotoelectric type: about DC153mA, Contact type: about DC10mA
- Dimensions172 x 63 x 36 mm
- Weight190g (Battery including)
- AccessoriesCarrying box, Reflective paper, Manual
