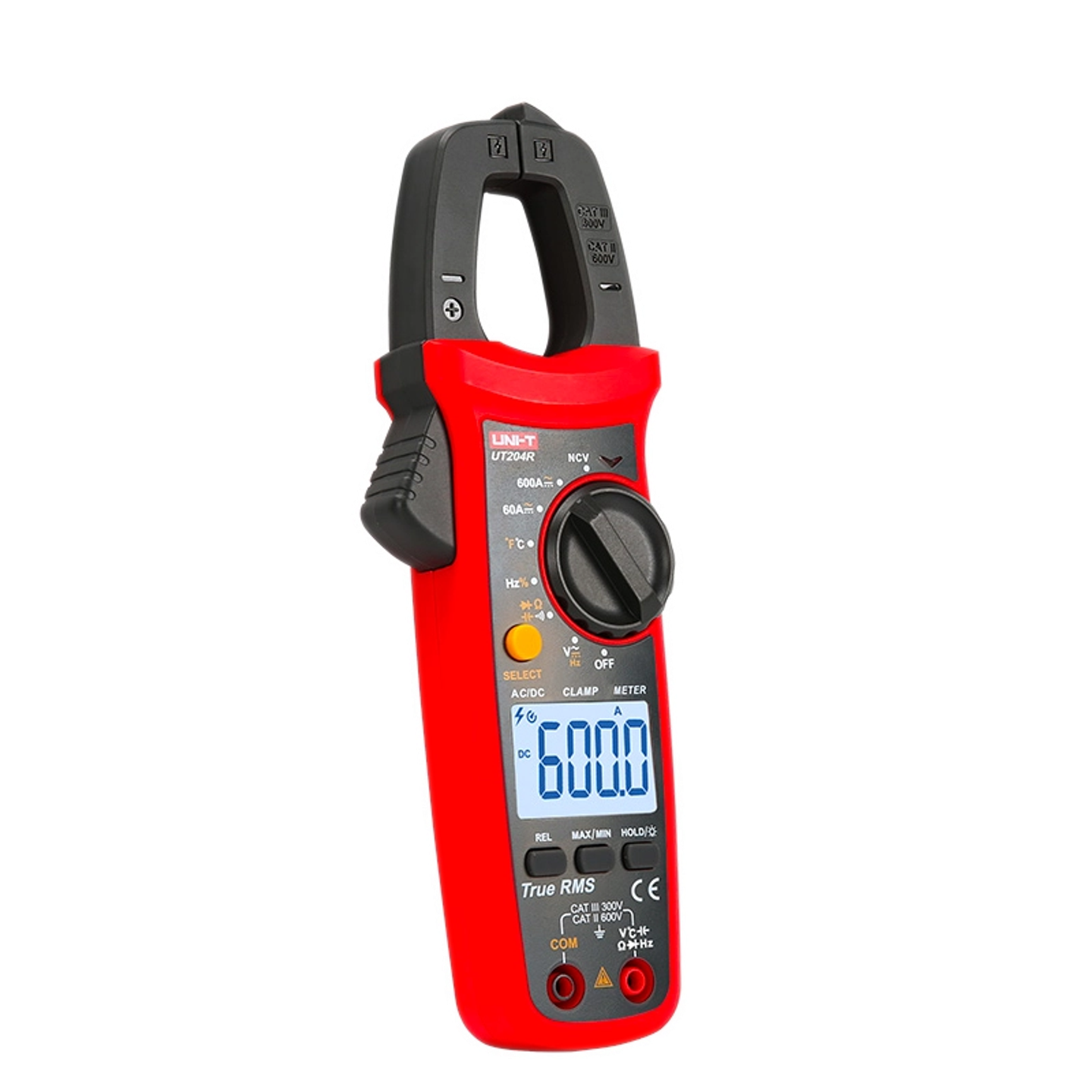

AC/DC Digital Clamp Meter
Brand
UNI-T
|
Model
UT-204R
|
🇨🇳 China
The UT-204R Digital AC/DC Clamp Meter complies with EN61010-2010 CAT II 600V/CAT III 300V standards and includes the following features:
- Overload protection
- Temperature measurement
- Capacitance measurement
- High reliability and safety
- Multiple measurement modes
Price
NT$ 1,550
Out of Stock
Views: 56
Description
The UT-204R AC/DC Digital Clamp Meter is a high-precision multi-functional clamp meter designed for AC and DC measurements. Featuring True RMS measurement and a backlit display, it is perfect for use in various environments. The large LCD screen clearly shows measurement results and supports capacitance measurements up to 60mF, making it an ideal tool for electricians and maintenance technicians.
Specifications
- Display Counts6,099 位數
- Jaw OpeningØ28 mm
- AC Current60.00 / 600.0 A ±(2%+5)
- DC Current60.00 / 600.0 A ±(2%+5)
- DC Voltage600.0m / 6.000 / 60.00 / 600.0 V ±(0.5%+2)
- AC Voltage6.000 / 60.00 / 600.0 V ±(0.8%+5)
- Resistance600.0 / 6.000k / 60.00k / 600.0k / 6.000M / 60.00M Ω ±(0.8%+2)
- Capacitance60.00n / 600.0n / 6.000μ / 60.00μ / 600.0μ / 6.000m / 60.00m F ±(4.0%+5)
- Frequency10 ~ 10M Hz ±(0.1%+4)
- Temperature Range-40 ~ 1,000 °C ( -40 ~ 1832 °F) ±(2.0%+5)
Features
- Diode TestEFLo / EFHI
- Input Impedance10MΩ
Attributes
- Operating Temperature0 to 40°C / lower than 70%RH without dew。
- Storage Temperature10 to 50 °C / lower than 50%RH without dew。
- Altitude LimitLower than 2,000 meters
- Power SupplyAAA 1.5 Battery x 2
- Dimensions215 × 63.5 × 36 mm
- Weight235g
- AccessoriesTest Lead、 Temperature Sensor、 Battery 、Carrying Bag、Manual
- Safety RatingUL STD 61010-1, 61010-2-032, 61010-2-033; CSA STD C22.2 No. 61010-1, 61010-2-032, 61010-2-033.
