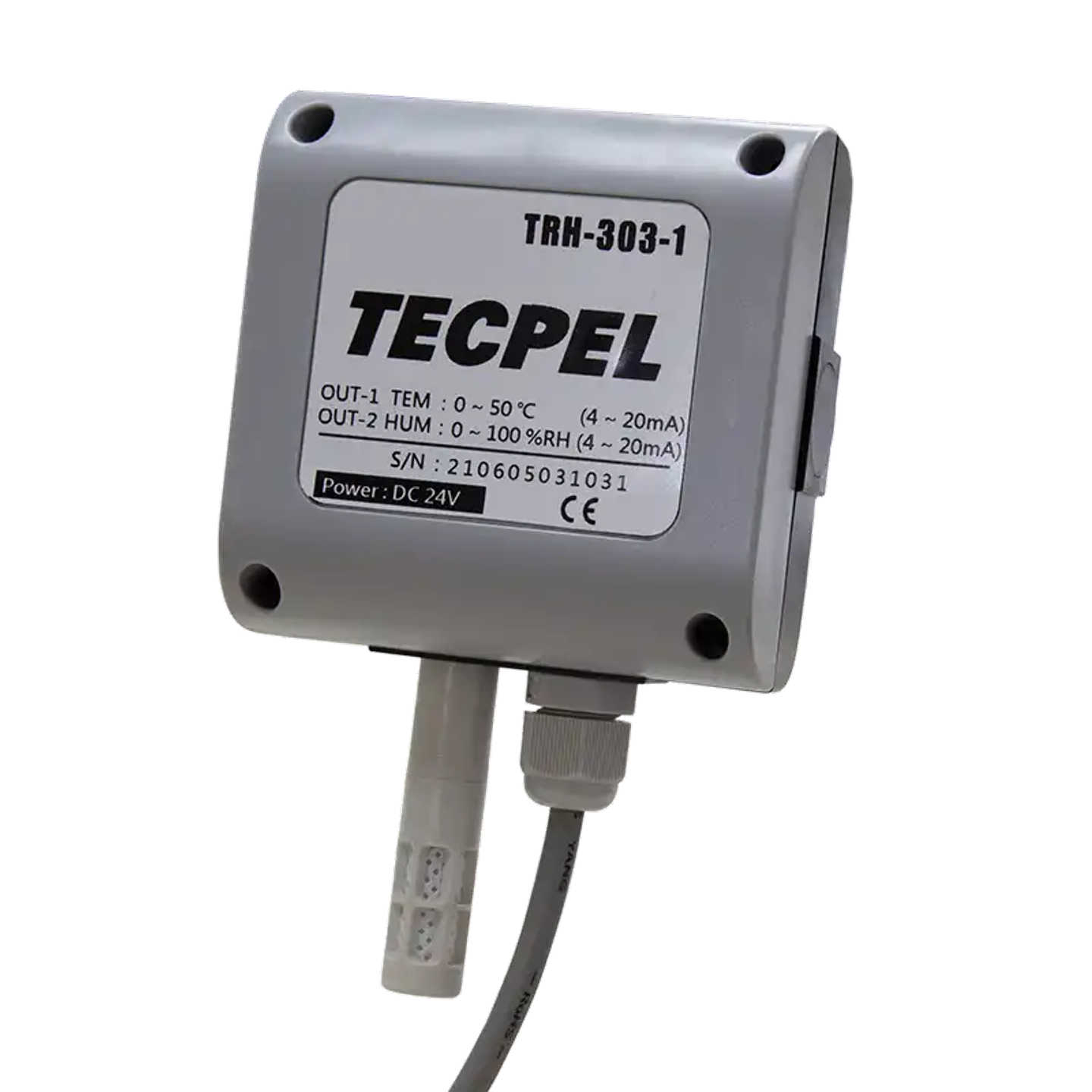

Environmental Temperature and Humidity Transmitter
Brand
TECPEL
|
Model
TRH-303-1
|
🇹🇼 Taiwan
The TRH-303 series temperature and humidity transmitters feature:
- Support for voltage or current analog signal transmission
- Output formats including 4~20mA, 0~10V, 0~5V, 0~1V
- Suitable for various environmental monitoring needs
Out of Stock
Views: 69
Description
The TRH-303-1 Environmental Temperature and Humidity Transmitter transmits measured temperature and humidity values via voltage or current signals to display boards or backend systems in real-time. It supports various output formats, ensuring seamless integration into existing systems for accurate environmental data monitoring.
Specifications
- Sensor Type±0.008% RH / °C (Effect @ 0% RH)
- Humidity0~100% RH
- Measuring Range0~50 °C
- Accuracy±(0.2% + 3%RH) 於25 °C 且20~80%RH範圍
- Auto Temperature Compensation °C (Effect @ 0% RH) / ±0.008% RH
- Response Time約 20 秒 (可達90%)
Features
- Protection RatingIP54 (main body) / IP20 (sensor)
- Load ImpedanceLess than 500Ω
- Signal Output4~20mA
- Flame-Retardant MaterialCP-110
- Output Calibration10% of zero point and full scale
Attributes
- Operating Temperature0~50°C / lower than 90%RH without dew。
- Storage Temperature-10~40°C / lower than 70%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyDC 24V
- Dimensions130 × 80 × 40mm (Excluding terminals and protruding parts)
- WeightApprox. 150 g
