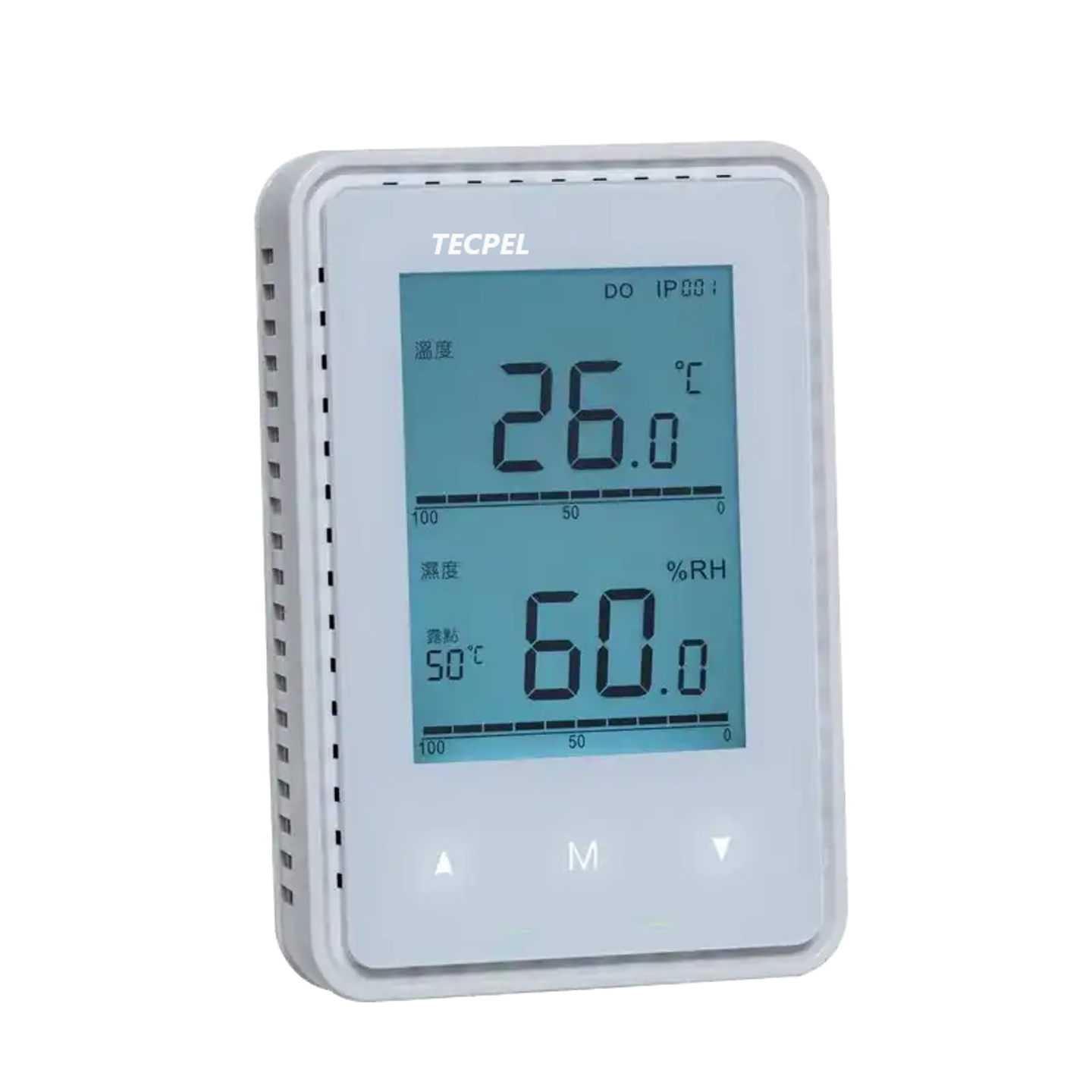

Temperature, Humidity and Dew Point Display with Alarm Feature
Brand
TECPEL
|
Model
TRH-403
|
🇹🇼 Taiwan
The TRH-403 temperature and humidity transmitter can simultaneously measure temperature, humidity, and dew point, and supports 4 ~ 20mA, 0 ~ 10V, and Modbus RS485 communication for easy integration with PLCs, monitoring panels, and backend systems.
Featuring high-precision sensing, alarm control output, and a large LCD display, it is ideal for factories, server rooms, and environmental monitoring applications.
Price
NT$ 4,725
In Stock
Views: 2
Description
TRH-403 is not just a standard display-type thermo-hygrometer, but an industrial-grade temperature and humidity transmitter that can be directly integrated into automation and monitoring systems. In addition to simultaneously measuring temperature, humidity, and dew point, it can also transmit data in real time to PLCs, display boards, or backend systems via 4 ~ 20mA, 0 ~ 10V, and Modbus RS-485, making it ideal for environments requiring long-term stable monitoring and remote management.
The product features high-precision sensing, a large LCD display, and alarm control output. It can be used together with dehumidification, air conditioning, ventilation, and temperature control equipment for automatic control, greatly improving environmental management efficiency. It is widely used in factories, server rooms, warehousing, biotechnology, agriculture, laboratories, and smart buildings.
Specifications
- Measurement TypeTemperature, Humidity, Dew Point(conversion)
- Temperature Range-9.9 to 60 ℃
- Humidity Range0 to 100% RH (at 0 to 60 °C)
- Dew Point-10 to 50 ℃
- Weight°C (Temperature、 Dew Point )/ %RH (Relative Humidity)
- Accuracy±0.4 °C / ±3 %RH
- Resolution0.1℃ / 0.1 %RH /1℃ (Dew Point)
Features
- Waterproof RatingIP 20 (Main Structure)
- Junction5-10mm cables Waterproof fast wire connector and terminal block
- Signal Output4~20mA / 0~20mA / 0~10V / MODBUS RS485
- DO ContactUse switch contacts
- ButtonFull capacitive touch button (finger touch sensor)
Attributes
- Operating Temperature-10 to 60°C / lower than 100%RH without dew
- Storage Temperature-10~40°C / lower than 70%RH without dew
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 24V
- Dimensions120 x 80 x 25 mm
- WeightApprox. 155 g
