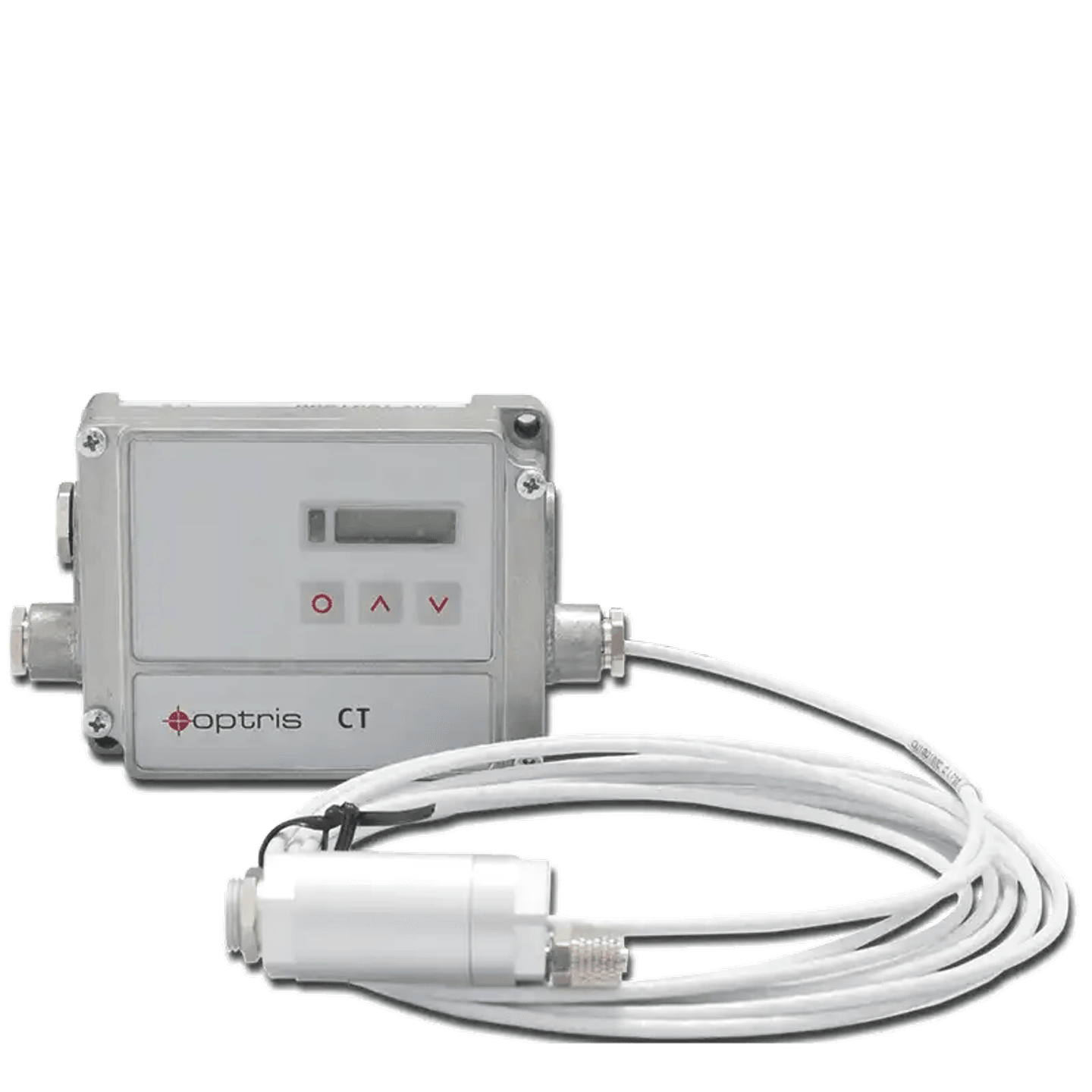

Advanced Infrared Temperature Transmitter
Brand
OPTRIS
|
Model
IRS-22
|
🇩🇪 Germany
The IRS-22 is primarily used in conjunction with industrial instruments, featuring:
- Outputs voltage, current, and thermocouple signals to controllers
- Dry contact functionality for alarm integration
- High-temperature resistance suitable for diverse environments
Out of Stock
Views: 0
Description
The IRS-22 Advanced Infrared Temperature Transmitter is designed for long-term fixed position measurement of surface temperatures. It accurately outputs digital and analog signals to various industrial controllers. Its high-temperature resistance and multiple output options make it suitable for various industrial environments, effectively enhancing production efficiency and safety.
Specifications
- Temperature Range-40 ~ 900 °C
- Infrared Sensing Wavelength8~14 μm
- Accuracy±1% or +1 °C
- Optical Resolution22:1
- Response Time150m sec (95%)
Features
- Sensor Temperature ResistanceUp to 180 °C
- Emissivity (ε)0.100~1.100 adjustable
- Current Signal0~20mA, 4~20mA
- Voltage Signal0~5V
- Probe TypeK, J Type
- Alarm FunctionHigh temperature: Red light / Low temperature: Blue light / Normal: Green light / Dry contact
- VibrationIEC 68-2-6:3G, 11~200Hz any direction
- Shock ProtectionIEC 68-2-27:50G, 11mS any direction
Attributes
- Operating Temperature0~50 °C / less than 80%RH, non-condensing
- Storage Temperature-10~40 °C / less than 70%RH, non-condensing
- Altitude LimitationBelow 1,000 meters
- Power SupplyDC 24V
- DimensionsControl box 120 x 70 x x30 mm
- Weight200 g
- AccessoriesManual.
