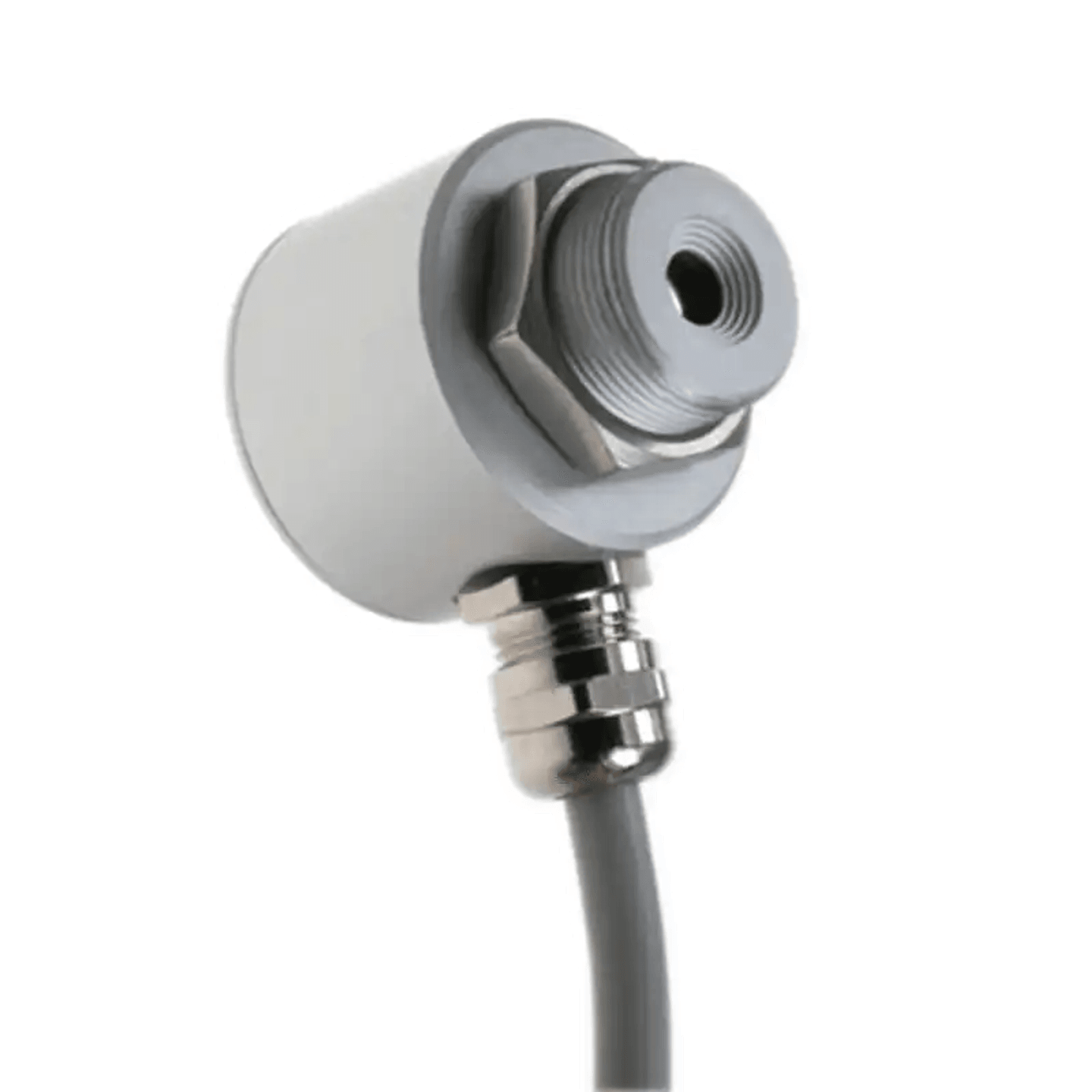

Infrared Temperature Transmitter
Brand
TECPEL
|
Model
IRS-20
|
🇨🇳 China
The IRS-20 is primarily used in conjunction with industrial instruments, transmitting a 4-20mA current signal to connect with relevant temperature monitoring equipment, and requires pairing with a display head or industrial monitoring system.
- Suitable for high-temperature environments
- Stable signal output
- Accurate temperature measurement
Out of Stock
Views: 57
Description
The IRS-20 Infrared Temperature Transmitter is designed for long-term fixed position measurements, accurately reflecting the surface temperature of objects. It is ideal for industrial production lines and high-temperature boiler applications, offering stable performance to enhance production efficiency.
Specifications
- Temperature Range500 ms (95%)
- Spectral Range8~14 μm
- Accuracy±1.5% 或 +1.5 °C
- Optical Resolution15:1
- Response Time500m 秒(95%)
Features
- Emissivity0.95 fixed
- Signal Output4~20mA
Attributes
- Operating Temperature0~40 °C / less than 80%RH, no condensation
- Storage Temperature-10~40 °C / less than 70%RH, no condensation
- Altitude LimitBelow 1,000 meters
- Power SupplyDC 24V
- Dimensions35(diameter) x 38.5 mm
- Weight200 g
- AccessoriesManual.
