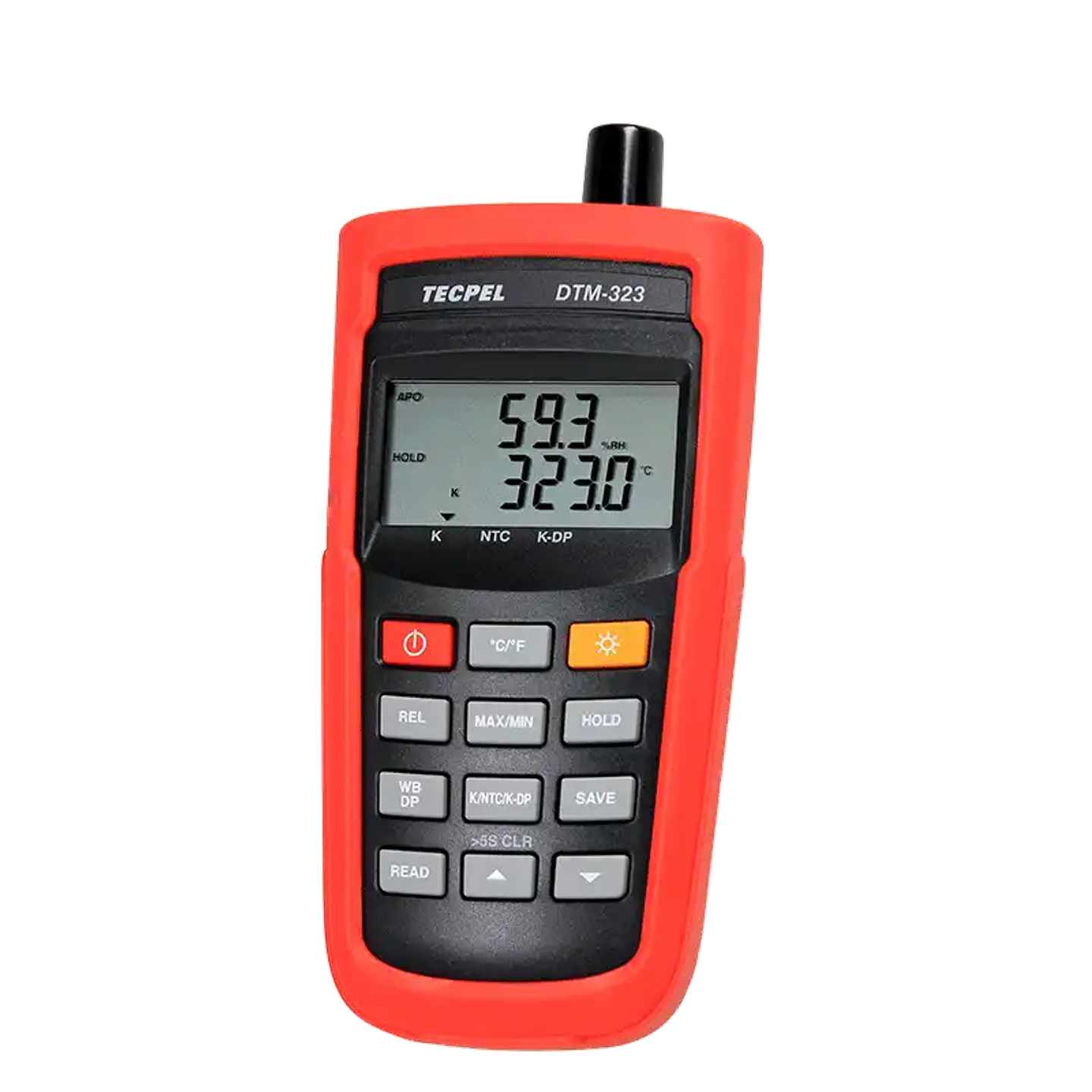

Temperature, humidity and dew point meter
Brand
TECPEL
|
Model
DTM-323
High-precision temperature and humidity meter with external temperature sensing line
Calculates wet bulb and dew point temperature
Wide measurement range suitable for various environments
User-friendly with clear display
Out of Stock
Views: 5
Description
The DTM-323 Temperature, Humidity, and Dew Point Meter is a high-precision measuring instrument designed for accurate monitoring of temperature and humidity in the environment. This device features an external temperature sensing line and can simultaneously calculate wet bulb temperature and dew point temperature, making it suitable for various applications, including climate research, HVAC systems, and industrial environments.
Specifications
- Display Digits5 digits
- Temperature Range-50~1,000 °C (-50~1,832 °F)
- Temperature (NTC)-10~50 °C (14~122 °F)
- Temperature (K)-50~1,000 °C (-50~1,832 °F)
- Accuracy±2.5 %RH @25 °C (10~90 %RH), approx. ±5 %RH for the rest
- Resolution0.1 °C / 1 °C (above 200 °C)
- Sensor TypeK-Type
- Response TimeApprox. 60 seconds to reach 90%
Features
- External Sensor ProbeSupported
- Wet and Dry Bulb Temperature CalculationSupported
- Dew Point Temperature CalculationSupported
Attributes
- Operating Temperature0~50 °C / less than 90 %RH, non-condensing
- Storage Temperature-20~60 °C / 10~70 %RH, non-condensing
- Elevation LimitationBelow 1,000 meters
- Power Supply1.5V AAA battery x 4
- Dimensions160 x 83 x 38mm
- Weight265 g
- AccessoriesBattery x4, thermocouple temperature wire, manual
