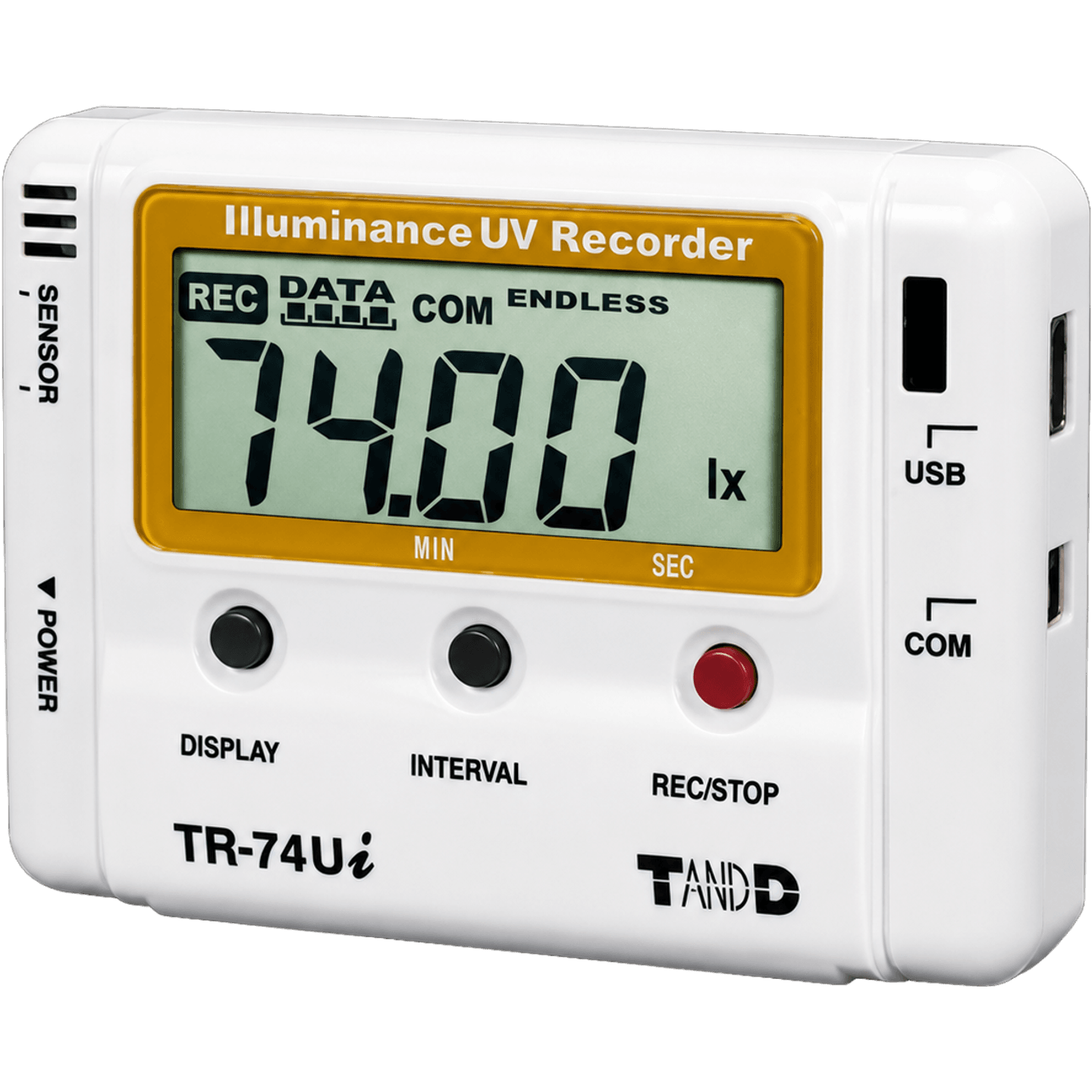

Accumulating Light, High accuracy Humidity and Temperature Data Logger

Brand T&D | Model TR-74Ui-S | 🇯🇵 Japan
Made in Japan PC Interface Data Logger
TR-74Ui-S can measure temperature, humidity, illuminance, and ultraviolet rays at the same time and can store 8,000 data sets. Then download to the computer via USB for browsing.
Out of Stock
Views: 2

Description

Japan TandD High accuracy temperature and humidity recorder, with low power consumption and high accuracy is a highly reliable environmental recorder. TR-74Ui-Scan measure temperature, humidity, illuminance, and ultraviolet rays at the same time and can store 8,000 data sets. Then download it to the computer via USB for browsing. The cumulative amount of ultraviolet and illuminance can be displayed on the instrument, and no software download is required for statistics. This is an image showing a modern art gallery showing an exhibition of brightness and UV management. The gallery uses large areas of UV-filtered glass windows and strategically placed LED lighting to protect the artwork, as well as information panels explaining the importance of light management in preserving art. Part of the gallery houses a greenhouse area illustrating the use of natural light management in maintaining plant health. The entire space is clean and modern and filled with visitors admiring the artwork and greenhouse plants.

Specifications

  • Light Intensitylx / klx ( lx * 1,000) / Mlxh ( lx * 1,000,000 hourly accumulation)
  • UV Intensity260~400 nm ( UVA / UVB )
  • Humidity Range0~55 °C / 10~95 %RH (Sensor :THA-3151)
  • Temperature Unit Selectable°C / °F
  • Humidity Unit%RH (Relative Humidity)
  • Accuracy±5% lx / ±5% UV / ±0.5 °C / ±5 %RH
  • Resolution(0.01 lx) / (0.001 mW/cm2) / (0.1 °C) / (1 %RH)

Features

  • Units of MeasurementIlluminance (klxh, Mlxh) / UV intensity (mW/cm2h, W/cm2h)
  • Temperature Unit Selectable°C / °F
  • Data TransmissionUSB
  • DATA CAPACITY8,000 set
  • RECORDING MODRLOnetime / Endless
  • Recording Interval1 Sec.~ 60 Min,(15 choices)

Attributes

  • Operating Temperature0~50°C / lower than 90%RH without dew。
  • Storage Temperature-10~40°C / lower than 70%RH without dew。
  • Elevation LimitationLower than 1,000 meters
  • Power Supply1.5V AA Battery
  • Dimensions55 × 78 × 18mm
  • WeightApprox. 40 g (Without Battery)
  • AccessoryAA Battery、(ISA-3151) sensor x1、SHA-3151 High Precision Sensor x1、Software Disc、Manual
