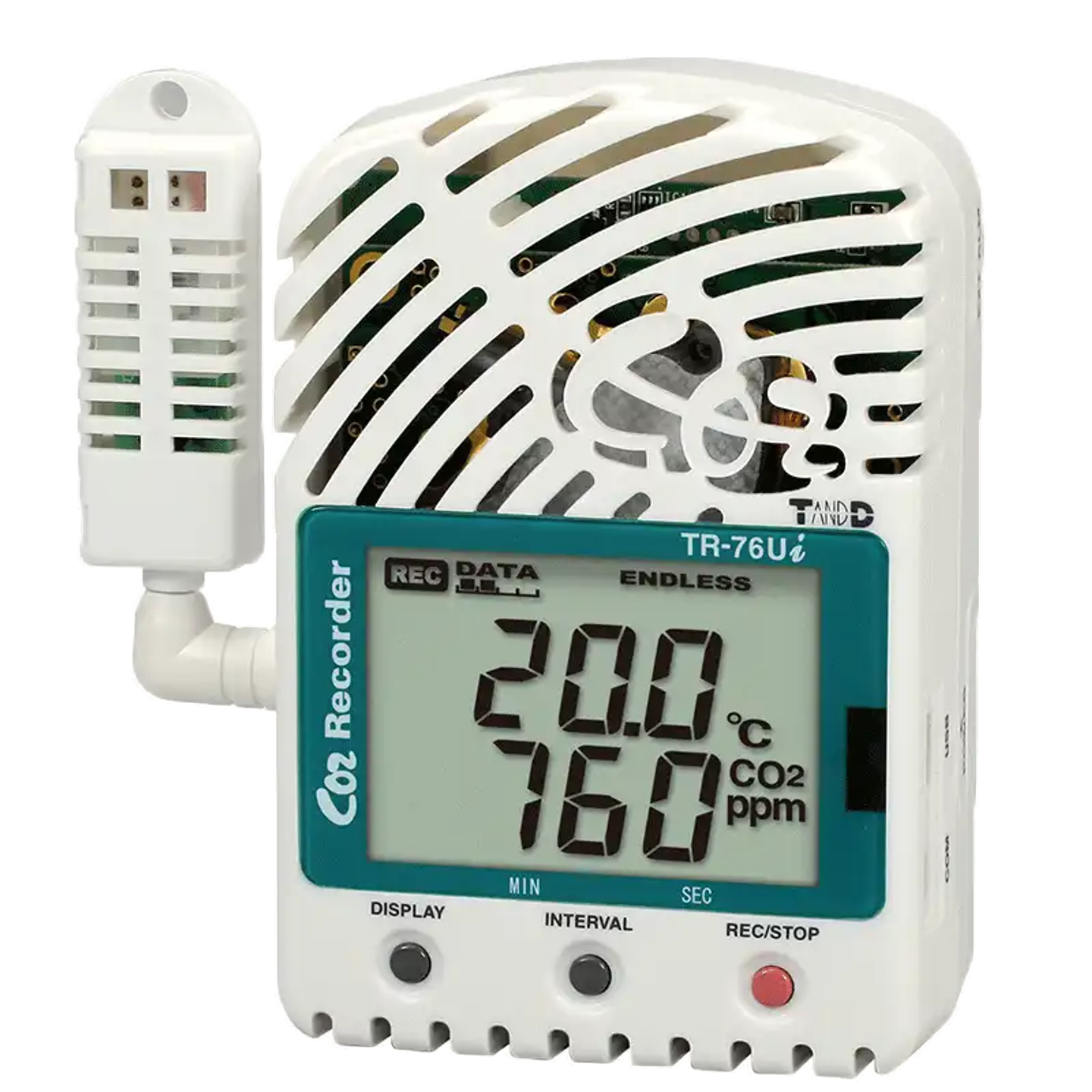

T&D CO2 / Thermo-Hygrometer Data Logger
Brand
T&D
|
Model
TR-76Ui
|
🇯🇵 Japan
The TR-76Ui is designed for long-term monitoring of indoor CO2 concentrations, and offers the following features:
- Large-aperture design for accurate CO2 measurement
- Stores up to 8,000 measurements of CO2, temperature, and humidity
- Easily download data to a computer via USB or an optical reader
- Multiple recording modes to match different needs
Price
NT$ 12,500
Out of Stock
Views: 2
Description
The T&D CO2 / Thermo-Hygrometer Data Logger TR-76Ui from Japan features low power consumption and high accuracy. It can simultaneously display CO2 concentration, temperature, and humidity values, and includes an alarm function. The alarm can use dry-contact output to control connected devices such as exhaust fans and heat recovery ventilators, helping maintain the best indoor environment.
Specifications
- CO2 Range±50 ppm ±5% of reading
- Temperature Range0~55 °C (Sensor: THA-3001)
- Humidity Range10~95 %RH (Sensor: THA-3001)
- Temperature Unit Switch°C (Celsius) / °F (Fahrenheit)
- Humidity Unit%RH (Relative humidity)
- Accuracy±5 %RH
- Resolution1 ppm / 0.1 °C / 1 %RH
Features
- Temperature Unit SwitchCelsius °C / Fahrenheit °F
- Data TransferUSB / Optical transfer
- Data Logging8,000 records
- Recording ModeOne-time / Endless
- Recording Interval1 second ~ 60 minutes (15-step selection)
- Alarm FunctionDry contact
Attributes
- Operating Temperature0~50 °C / below 90 %RH (no condensation)
- Storage Temperature-10~40 °C / below 70 %RH (no condensation)
- Altitude LimitBelow 1,000 m
- Power Supply1.5 V AA alkaline batteries x4 / AC110V transformer
- Dimensions96 mm × 66 mm × 46 mm
- WeightApprox. 40 g (without battery)
- Included AccessoriesAA alkaline batteries x4, Sensor: THA-3001, USB cable, Transformer (AC110V), Software disc, Instruction manual
