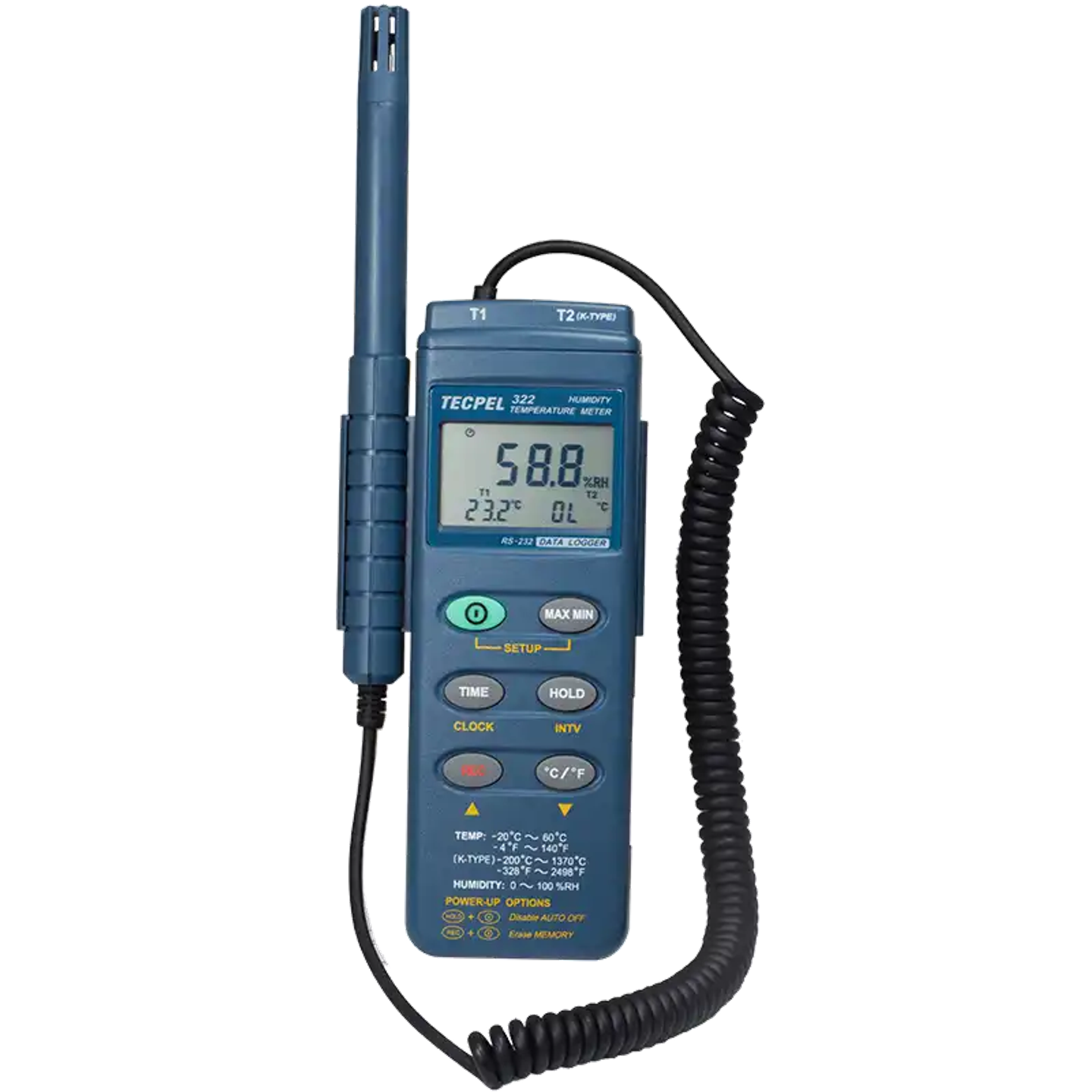

DTM-322 Temperature and HUmidity data logger
Brand
TECPEL
|
Model
DTM-322
The DTM-322 temperature data logger, paired with a thermocouple sensor, can quickly measure object surface temperature, allowing you to easily monitor every subtle change.
It features a built-in storage capacity of up to 16,000 data records and allows you to freely set the logging interval from 1 second to 60 minutes, making long-term monitoring more convenient.
Price
NT$ 8,295
Out of Stock
Views: 5
Description
The DTM-322 Temperature and Humidity Data Logger is a professional-grade measuring instrument featuring high-precision temperature and humidity measurement functions. It can also be connected to an external thermocouple temperature sensor for measuring the temperature of object surfaces.
The device comes with dedicated software, allowing users to transfer and analyze data through a computer connection, making it suitable for various applications such as environmental monitoring, laboratories, and industrial use.
Specifications
- Temperature RangeT1: -20 ~ 60 °C (-4 ~ 140 °F)
- Humidity RangeT1: 0 ~ 100 %RH
- Thermocouple InputT2: -200 ~ 1,370 °C (-328 ~ 2,498 °F) K-type
- AccuracyThermocouple ±(0.3%+1 °C) between -200~200 °C
- Resolution0.1 °C / 0.1 %RH
- SensorElectronic capacitive polymer film sensor / NTC (thermistor)
Features
- Time Displaymm:ss
- Data Logging16,000 records (up to 255 sets)
- Logging Interval1 second ~ 60 minutes
- Temperature Unit SwitchingCelsius °C / Fahrenheit °F
- Measurement DisplayPrimary: Humidity / Secondary: T1 temperature and T2 temperature
Attributes
- Operating Temperature0~50°C / lower than 90%RH without dew。
- Storage Temperature-10~40°C / lower than 70%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply9V Battery x 1
- Dimensions186 x 64 x 30mm
- WeightApprox. 320 g
- Accessory9V Battery , Manual
