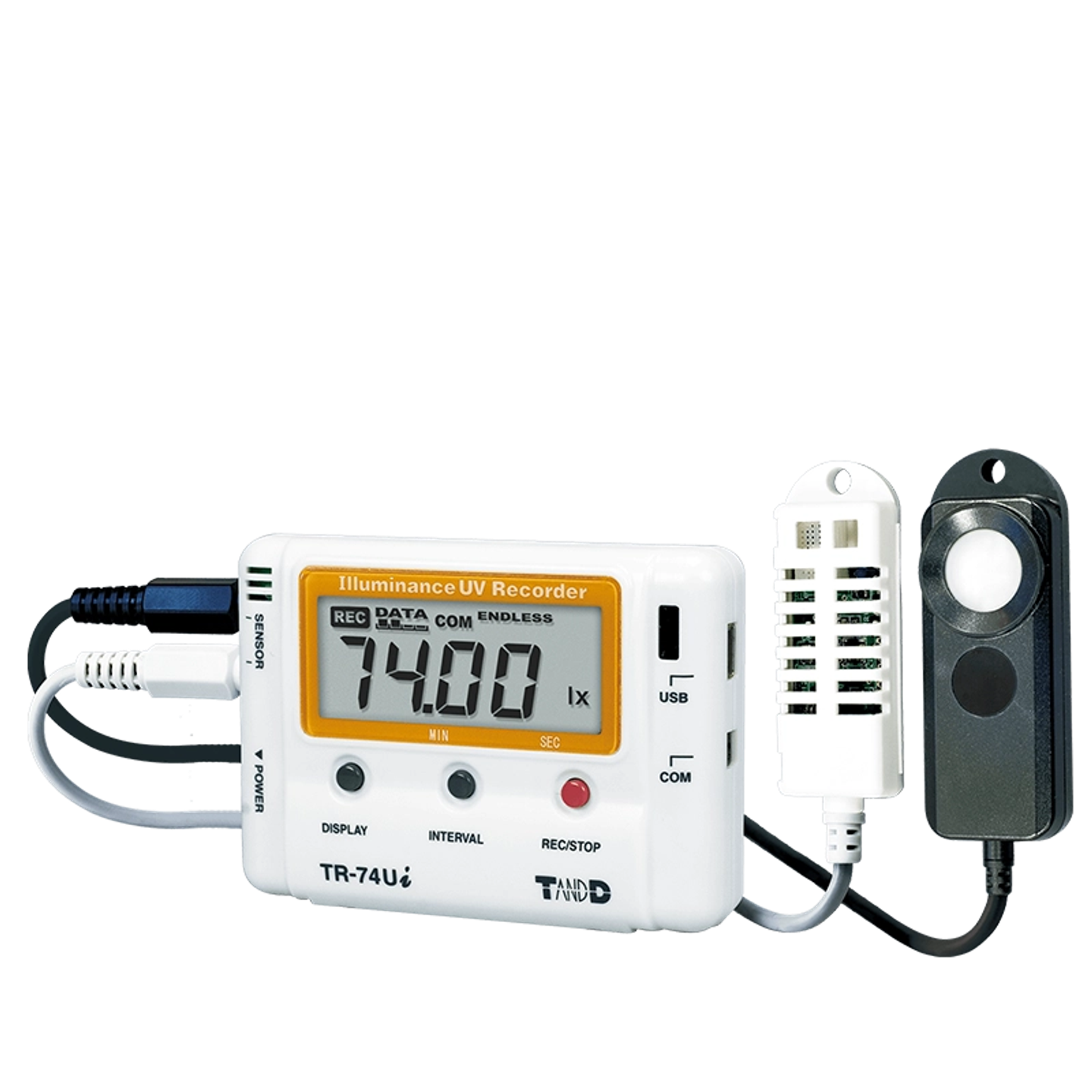

Accumulating Light, Humidity and Temperature Data Logger

Brand T&D | Model TR-74Ui | 🇯🇵 Japan

TR-74Ui can measure temperature, humidity, illuminance, ultraviolet rays at the same time and can store 8,000 data sets. Then download to the computer via USB for browsing.

Out of Stock

Product: TR-74Ui, Field: Function Introduction The Japanese TandD temperature and humidity logger features low power consumption and high accuracy, making it a reliable environmental recorder. The TR-74Ui can simultaneously measure temperature, humidity, illuminance, and ultraviolet (UV), and can store up to 8,000 data points. Afterwards, you can download the data to a computer via USB for viewing. The instrument also displays the accumulated UV and illuminance totals directly on the device, so there is no need to download via software to obtain statistics. This is an image showcasing a modern art gallery, featuring an exhibition on brightness and UV management. The gallery uses large-area UV-filtering glass windows and strategically placed LED lighting to protect artworks, along with informational display boards explaining the importance of light management in preserving art pieces. Part of the gallery includes a greenhouse area, demonstrating the application of natural light management in maintaining plant health. The entire space is clean and modern, filled with visitors who are viewing the artworks and greenhouse plants.

Light Intensitylx (lux) / klx (lux x 1,000) / Mlxh (lux x 1,000,000 cumulative per hour)
UV Intensity260~400 nm (UVA / UVB)
Humidity0~55 °C / 10~95 %RH (sensor: THA-3151)
Temperature Unit Selectable °C / °F
Humidity Unit%RH (relative humidity)
Accuracy±5% lx / ±5% UV / ±0.5 °C / ±5 %RH
Resolution(0.01 lx) / (0.001 mW/cm2) / (0.1 °C) / (1 %RH)

Cumulative DisplayIlluminance (klxh, Mlxh) / Ultraviolet (mW/cm2h, W/cm2h)
Temperature Unit SelectableCelsius °C / Fahrenheit °F
Data TransmissionUSB
Data Logging8,000 records
Acquisition ModeOne-time (Onetime) / Endless
Recording Interval1 second ~ 60 minutes (15 selectable steps)
照度(klxh, Mlxh) / 紫外線(mW/cm2h, W/cm2h)iluminancia (klx, Mlx) / ultravioleta (mW/cm², W/cm²)

Operating Temperature0~50 °C / Less than 90%RH, non-condensing
Storage Temperature-10~40 °C / Less than 70%RH, non-condensing
Altitude LimitBelow 1,000 meters
Power Supply1.5V AA alkaline battery (size AA)
Dimensions55 × 78 × 18mm
WeightApprox. 40 g (excluding battery)
AccessoriesAA alkaline battery, 1× (ISA-3151) sensor, 1× (THA-3151) sensor, software CD, instruction manual
