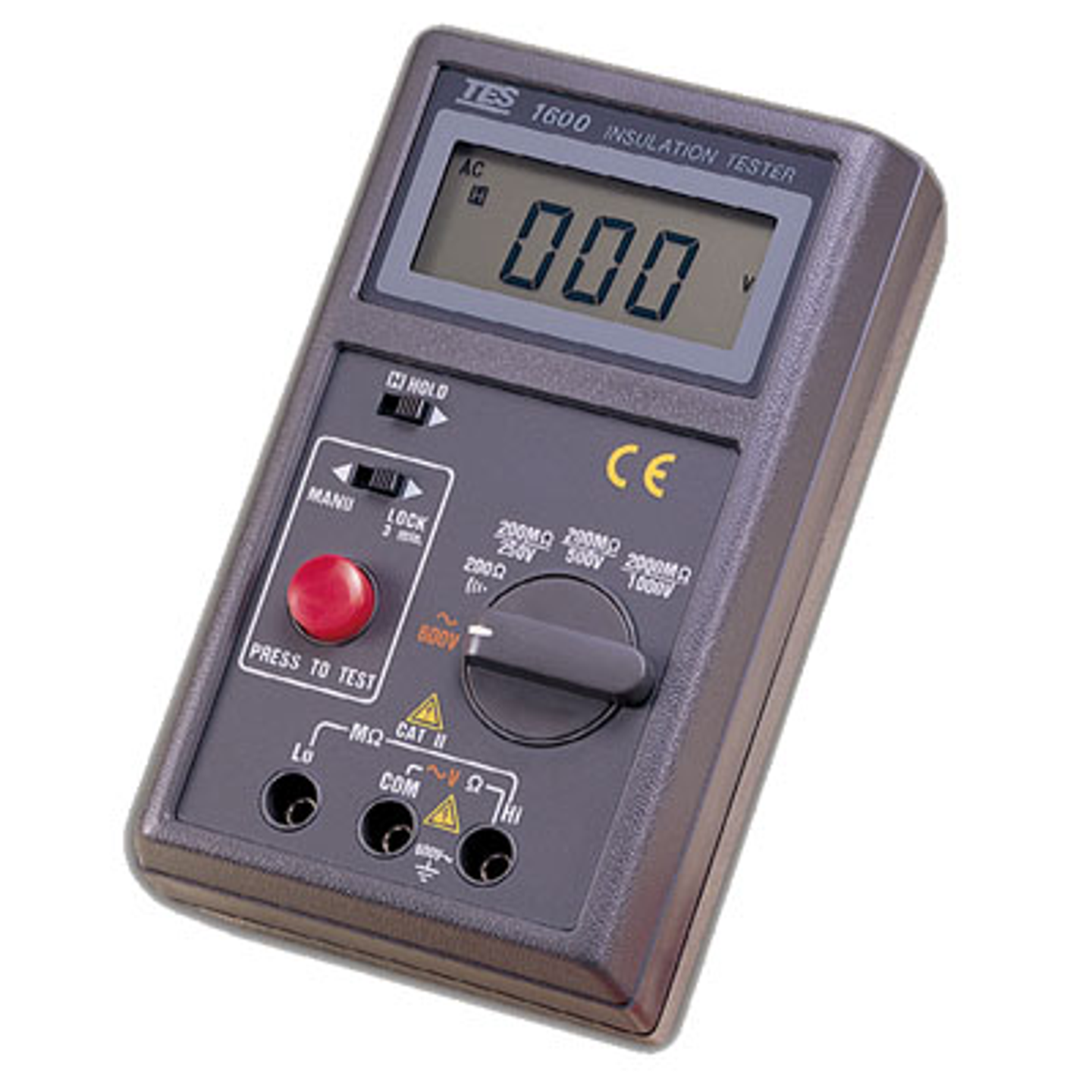

TES-1600 Insulation Resistance Tester Mega Ohm Meter
Brand
TES
|
Model
TES-1600
|
🇹🇼 Taiwan
Key features of the TES-1600 Insulation Resistance Tester:
- LCD display with 16.5mm character height, maximum reading of 1999
- Automatic unit symbol display
- Easy operation with rotary switch
- 3-minute automatic measurement lock
- Continuity measurement function
- Battery operation and overload protection
- Safety test probes
- 1mA testing current
- Suitable for insulation testing of various electrical equipment
Price
NT$ 3,045
Out of Stock
Views: 0
Description
The TES-1600 Insulation Resistance Tester is a portable digital meter designed for quick measurement of insulation resistance in electrical equipment. Its LCD display clearly shows measurement data, making it easy to operate for electricians and technicians in various environments. This device features automatic zeroing and continuity testing functions, along with overload protection for safe usage, making it an ideal tool for insulation testing of various electrical devices.
Specifications
- 250V 測試電壓200M Ω ±(3%+5位), 測試電壓 250V±10%, 測試電流於250K Ω負載
- 500V 測試電壓200M Ω ±(3%+5位), 測試電壓 500V±10%, 測試電流 1mA於500K Ω負載
- 1,000V 測試電壓2,000M Ω ±(3%+5位), 測試電壓 1000V±10%, 測試電流 1mA於1MΩ負載
- 交流電壓600 V ±(0.8 %+3)
- 電阻200Ω ±(1%讀值+2位) 3.3V 500Vrms
- 導通測試200Ω 約 <100Ω 3.3V 500Vrms
Features
- 讀值顯示液晶顯示器字高16.5mm，最大讀值1999
- 取樣率取樣率 2.5次/秒
- 歸零調整自動歸零調整
- 旋轉開關簡便操作
- 自動鎖定3分鐘自動鎖定測量
- 導通測試導通測量功能
- 過載保護電池動作、過載保護
- 安全性測試棒配備安全性測試棒
- 測試電流1mA 測試電流
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V Battery (AA) x 6
- Dimensions205 x 90 x 55 mm
- Weight500g (Battery including)
- AccessoryBattery, Carrying bag, Test stick, Manual
