磁場測試儀

Brand TES | Model TES-1394S | 🇹🇼 Taiwan
磁場測試儀
TES-1394S - 1
TES-1394S - 2
TES-1394S - 3

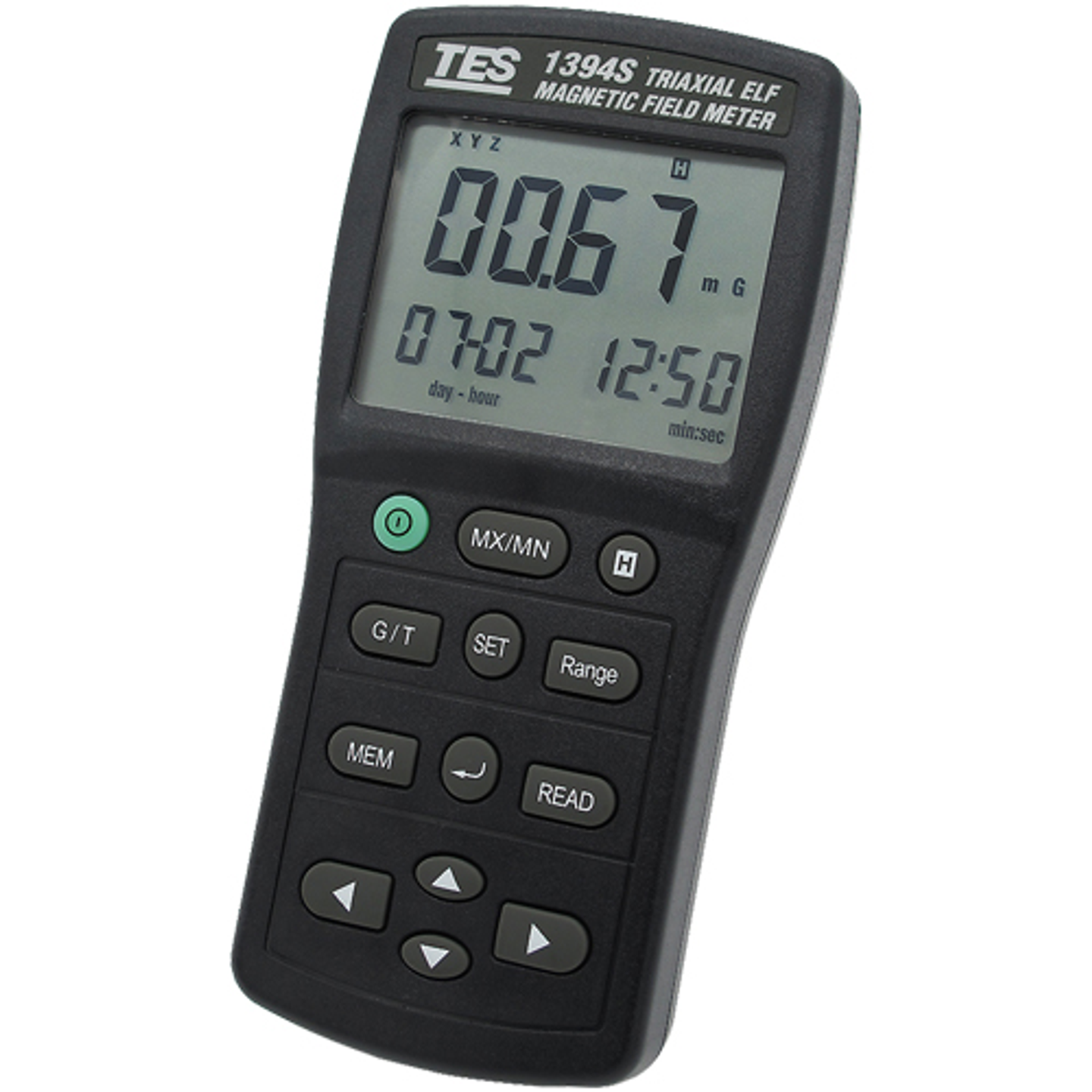

Key features of the TES-1394S Magnetic Field Tester include: - High-performance electromagnetic field tester for accurate measurement of radiation levels. - Portable design for easy operation. - Dual display units supported. - Data memory function can store up to 2000 data points. - Automatic data logging via microSD card. - Manual and automatic data memory options.
Price NT$ 14,230
Out of Stock
Views: 53

Description

The TES-1394S Magnetic Field Tester is a professional electromagnetic radiation measurement tool that offers a fast, reliable, and user-friendly way to measure electromagnetic field levels. This instrument is suitable for detecting electromagnetic fields from power lines, household appliances, and industrial equipment. It features dual display units and data memory capabilities, automatically storing data on a microSD card, specifically designed to address electromagnetic field measurements from power lines, computer monitors, televisions, and other related devices.

Specifications

  • Display3顯示液晶顯示器
  • Measuring Range20/200/2000 毫高斯 2/20/200微泰斯拉
  • Resolution0.01/0.1/1 毫高斯 0.001/0.01/0.1 微泰斯拉
  • 感測頭三軸
  • Data LoggingmicroSD卡 4GB (1394S)
  • Bandwidth30 Hz到2KHz
  • Accuracy20mG/2µT ± (3% + 30位)，± (3% + 3位)於50Hz或60Hz，± (5% + 3位)於40Hz到200Hz，-3dB於30Hz到2000Hz
  • Overload ProtectionLCD顯示 “OL”
  • Sampling Rate約0.5 秒
  • Power Supply6顆AAA電池
  • Battery Life約33小時(1393) / 約40小時(1394S)
  • Operating Temperature0℃到50℃, 低於80%RH
  • Storage Temperature-10℃到60℃, 低於70%RH
  • Weight約165公克 (1393) / 約225公克 (1394S)
  • Dimensions150(長) ×72 (寬) ×35(高) mm

Features

  • 雙顯示單位yes
  • Data Holdyes
  • Max/Minyes
  • 資料記憶及讀取2000筆資料
  • 手動資料記憶99筆(1394S)
  • 自動資料記憶microSD卡4GB (TES-1394S)
  • PC連線功能yes (TES-1394S)

Attributes

  • Power Supply6 AAA batteries
  • Weightapprox. 225g (TES-1394S)
  • Dimensions150(L) ×72 (W) ×35(H) mm
  • AccessoriesManual, 6 AAA batteries, software CD, micro USB cable
