電磁波測試器

Brand LUTRON | Model EMF-827 | 🇹🇼 Taiwan
電磁波測試器

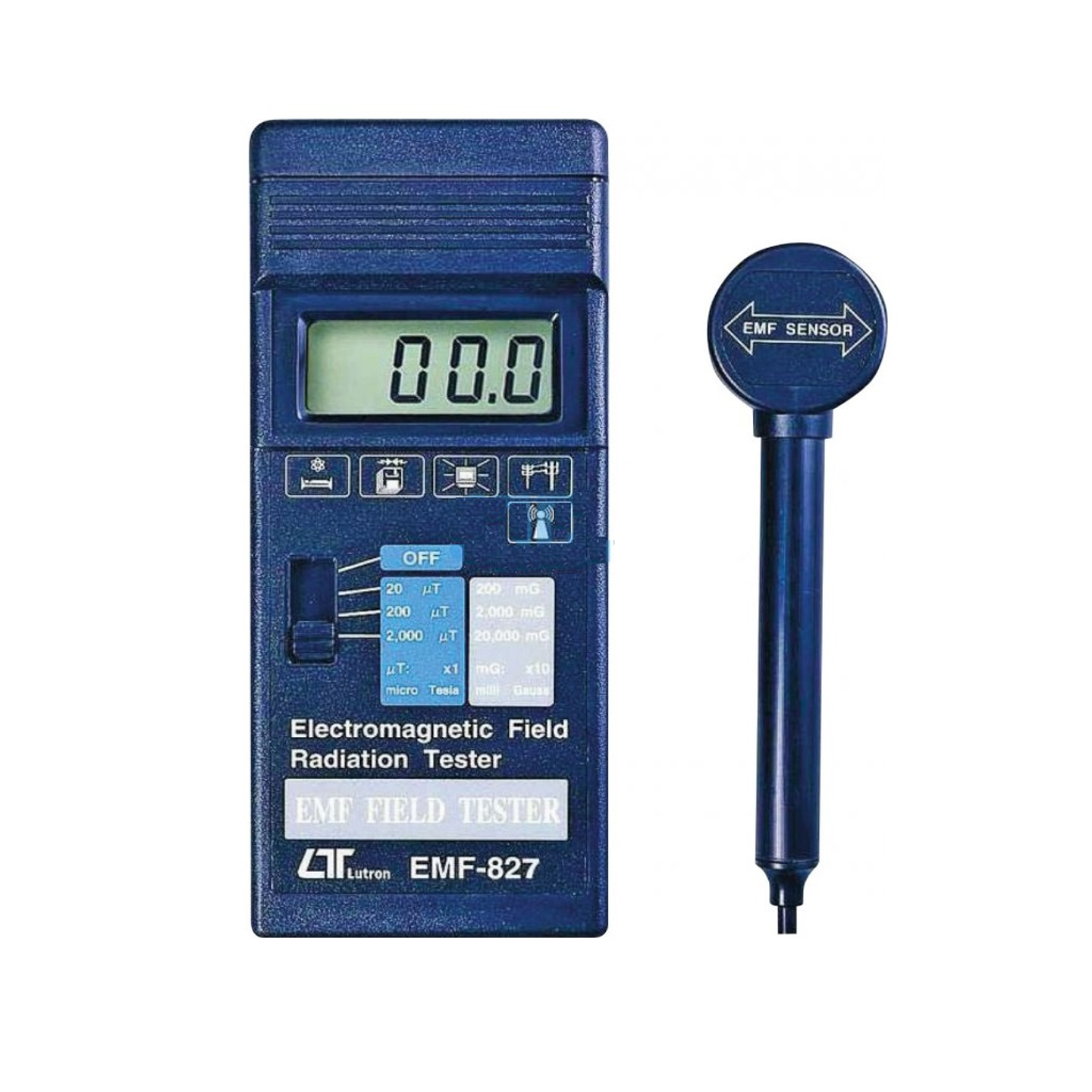

The EMF-827 Electromagnetic Field Tester is designed for precise measurement of electromagnetic fields. It offers multiple measurement ranges, an overload protection display, and an easy-to-read LCD screen, making it suitable for both professional and amateur users. The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices. Separate probe, easy operation & remote measurement. Wide measuring ranges, 20/200/2,000 micro Tesla, 200/2,000/20,000 milli Gauss. The EMF tester is a cost-effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50 Hz/60 Hz.
Price NT$ 3,950
Out of Stock
Views: 0

Description

The EMF-827 is a high-precision electromagnetic field tester suitable for measuring different ranges of Tesla and milli-Gauss values. It features an LCD display, single-axis measurement, and comes with a dedicated probe. Measuring range: 0.1 ~ 20000m Gauss 0.01~2000uTesla Measurement bandwidth: 30 ~ 300Hz Accuracy: ±4% (50/60Hz) Separate design for easy measurement and reading It has a wide range of applications and can measure electromagnetic waves generated by computer screens, audio-visual systems, home appliances, medical equipment, power systems, etc.

Specifications

  • Display Digits3 1/2 digits
  • Tesla Range20 micro Tesla x 0.01 micro Tesla, 200 micro Tesla x 0.1 micro Tesla, 2,000 micro Tesla x 1 micro Tesla
  • milli-Gauss Range200 milli Gauss x 0.1 milli Gauss, 2,000 milli Gauss x 1 milli Gauss, 20,000 milli Gauss x 10 milli Gauss
  • Bandwidth30 Hz to 300 Hz
  • Probe StructureSeparate probe with handle
  • Number of AxesSingle axis
  • Accuracy±(4% + 3 d) - 20 micro Tesla/200 milli Gauss range, ±(5% + 3 d) - 200 micro Tesla/2,000 milli Gauss range, ±(10% + 5 d) - 2,000 micro Tesla/20,000 milli Gauss range
  • Overload ProtectionDisplay shows '1'
  • Sampling TimeApprox. 0.4 second
  • Power SupplyDC 9V battery. 006P, MN1604 (PP3) or equivalent
  • Power CurrentApprox. DC 2 mA
  • Operating Temperature0 to 50 ℃
  • Operating HumidityLess than 80 %RH
  • Weight215 g/0.48 LB (including battery)
  • DimensionsMain instrument: 163 x 68 x 24 mm (6.4 x 2.7 x 0.9 inch), Probe: 175 x 45 x 22 mm (6.9 x 1.8 x 0.9 inch)
  • AccessoryOperation Manual......... 1 PC

Features

  • Peak Holdyes
  • Backlightyes
  • Data Holdyes
  • Max/Minyes
  • Frequency0.4 second

Attributes

  • Operating Temperature0 to 50℃, Humidity less than 80%RH
  • Storage Temperature-20 to 60℃, Humidity less than 80%RH
  • Power SupplyDC 9V Battery
  • Weight215 g, including battery
  • Dimensions163 x 68 x 24 mm (Main instrument), 175 x 45 x 22 mm (Probe)
