交流/直流高斯計

Brand TES | Model TES-3196 | 🇹🇼 Taiwan
交流/直流高斯計

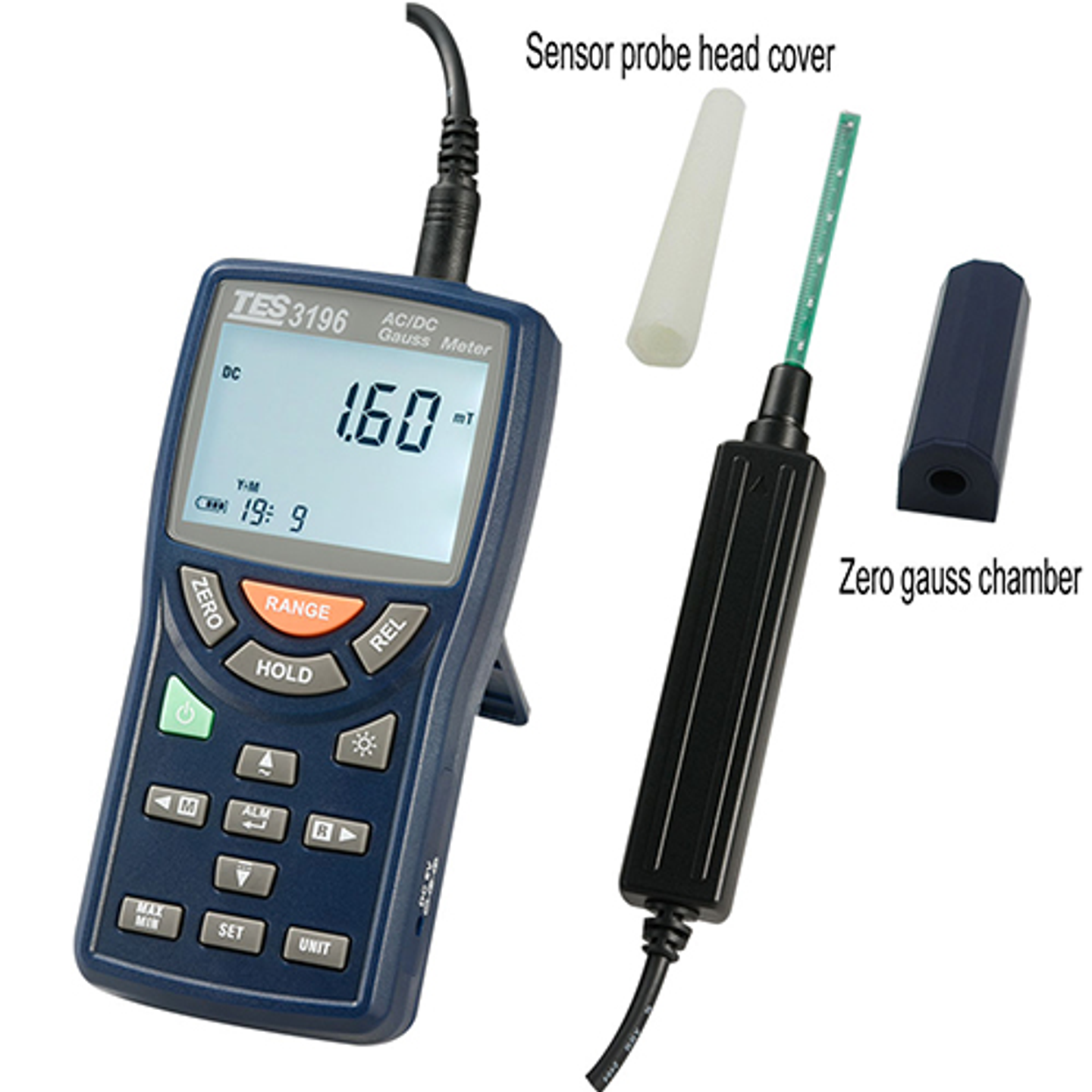

TES-3196 - 1
TES-3196 - 2
The TES-3196 is a high-precision AC/DC Gauss meter using a single-axis Hall effect transverse probe with automatic temperature compensation. Users can select Gauss, Tesla, or Ampere/Meter as measurement units. It features DC zeroing and AC true RMS measurement with reading hold, max/min value recording, relative value, and upper/lower limit alert functions. Additional features include LCD backlight and auto shutdown.
Out of Stock
Views: 0

Description

The TES-3196 AC/DC Gauss Meter uses a single-axis Hall effect transverse probe with automatic temperature compensation, suitable for measuring static and dynamic magnetic field strengths. This is a scaled-down image of a laboratory environment used for DC field meter and AC magnetometer measurements. The image shows a workbench with various measuring instruments, including a DC field meter and an AC magnetometer. The setup contains permanent magnets, electromagnets, small motors, and other magnetizable materials that are measured. The overall environment is professional and orderly, instruments are in use and measurement results are displayed.

Specifications

  • Magnetic Field2000.0G, 20000G (Resolution: 0.1G, 1G, Accuracy: ±(4% of reading+20D)), 200.00mT, 2000.0mT (Resolution: 0.01mT, 0.1mT), Frequency Range: 20Hz - 20kHz
  • Temperature CompensationTemperature sensor at the front end of the Hall effect probe for automatic temperature compensation
  • Measurement AxisSingle-axis transverse probe
  • Manual MemoryUp to 99 groups of data can be stored and retrieved manually
  • Operating Temperature0 to 50°C, up to 90% RH
  • Storage Temperature-25 to 70°C, up to 70% RH
  • Power SupplyFour IEC R6 (size AA) batteries, 6V AC adapter (optional)
  • Battery LifeApprox. 8 hours
  • Dimensions158 (L) x 78 (W) x 40 (H) mm / Approx. 287g
  • AccessoryManual, batteries, carrying case, and zero field chamber

Features

  • Automatic Temperature Compensationyes
  • Data Holdyes
  • Max/Minyes
  • Relative Modeyes
  • Upper/Lower Limit Alertsyes
  • Vector Sum of X, Y, and Z Axesyes
  • Displayyes
  • Auto Power Offyes
  • Data Loggingyes

Attributes

  • Operating TemperatureTemperature 0 ~ 50°C Humidity up to 90% RH
  • Storage TemperatureTemperature -25 ~ 70°C Humidity up to 70% RH
  • Power SupplyFour IEC R6 (size AA) batteries, 6V AC adapter (optional)
  • Battery LifeApprox. 8 hours
  • Dimensions158 (L) x 78 (W) x 40 (H) mm / Approx. 287g
  • AccessoryManual, batteries, carrying case, and zero field chamber
