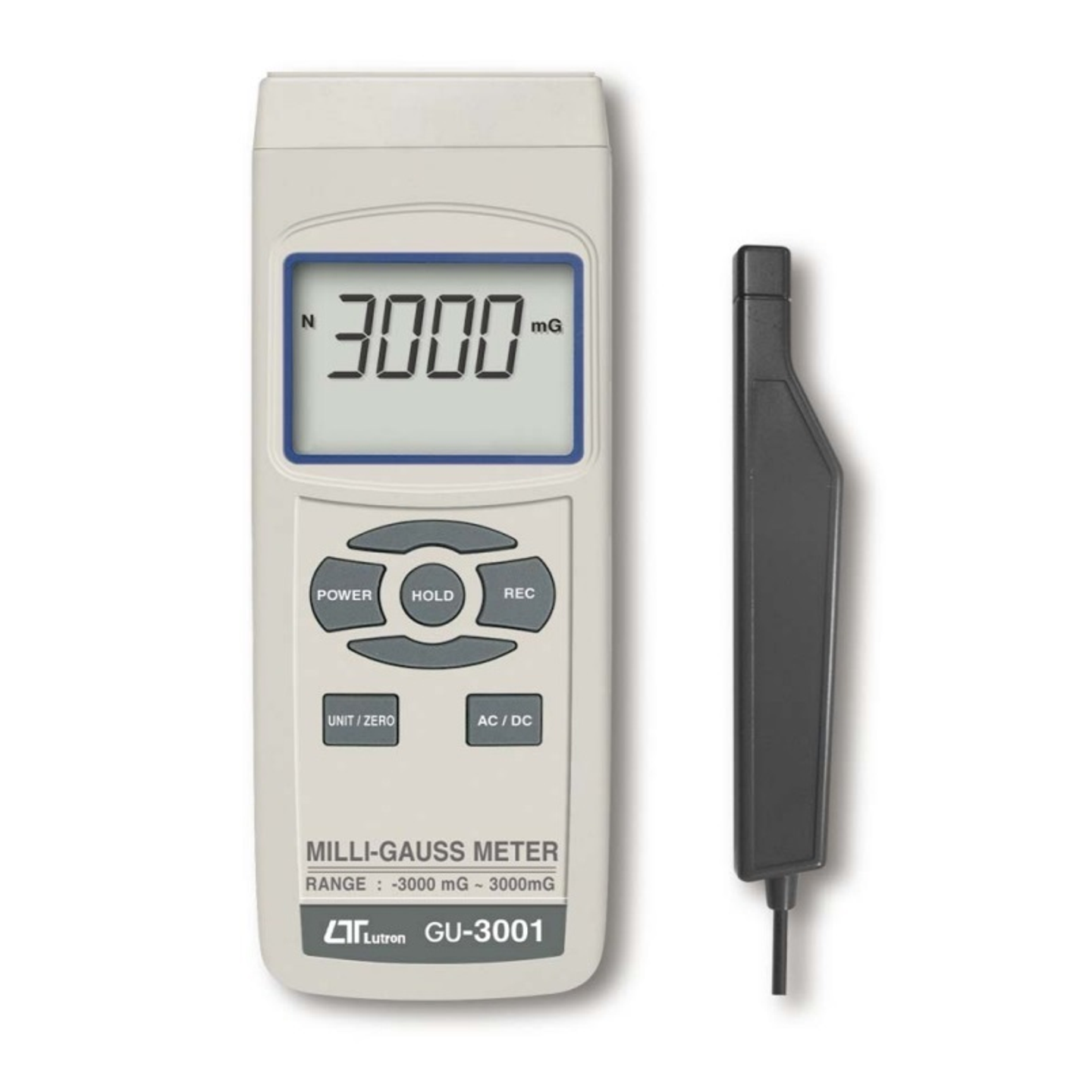

Precision Gauss Meter

Brand LUTRON | Model GU-3001 | 🇹🇼 Taiwan
The GU-3001 precision gauss meter is designed for environmental and magnetic field measurement with an integrated single-chip microprocessor circuit, providing high accuracy and quick response. It features a dual-function LCD display, supports mG and μT units, and is suitable for various applications. It includes data hold and memory recall functions, saving maximum and minimum values for easy operation. Adopts exclusive high-sensitivity sensors (better performance than traditional Hall element sensors) for high-precision magnetic field measurements. Widely used in industrial, mechanical, material, electrical, and laboratory fields for checking the magnetic field values of materials. Suitable for both DC and AC magnetic field measurements. Wide measurement range: ± 3,000 milligauss. This instrument can detect magnetic fields as small as 0.1 milligauss. Features N/S pole indicators. Independent probe design, easy to operate, convenient for long-distance measurements. A precision magnetic meter can even measure the Earth's magnetic field's absolute environment as a reference. Equipped with a zero adjustment button for relative measurements. Large S-TN type LCD screen, high contrast, easy to read. Data hold function to freeze the desired value on the display. Records maximum and minimum readings. Provides RS232/USB computer interface. A built-in microprocessor circuit ensures maximum accuracy and offers special functions and features. It comes with a heavy-duty compact case and a hard-carrying case designed for easy transport and operation. Automatic shut-off function to save battery life. Batteries or a DC 9V adapter can power it.
Price NT$ 17,550
Out of Stock
Views: 0

Description

The GU-3001 precision gauss meter is designed for environmental and magnetic field measurement. It offers high accuracy, a multi-function display, and data output options to meet professional needs.

Specifications

  • CircuitCustom one-chip of microprocessor LSI circuit.
  • DisplayLCD size: 52 mm x 38 mm dual function LCD display.
  • Measurement UnitmG: milligauss
    μT: micro Tesla
  • Measuring Range- 3,000 mG to 3,000 mG.
    - 300 μT to 300 μT.
  • Sound FrequencyDC
    AC: 40 Hz to 10 KHz
  • Resolution0.1 mG: - 199.9 mG to 199.9 mG.
    1 mG: ≧ 200 mG, ≦ -200 mG
    0.01 μT: - 19.99 μT to 19.99 μT.
    0.1 μT: ≧ 20.0 μT, ≦ -20.0 μT.
  • Accuracy± ( 2 % + 2 mG )
    * -1,000 mG to 1,000 mG
    * -100.0 μT to 100.0 μT
  • Field DirectionUniaxial.
  • Data HoldFreeze the display reading.
  • Memory RecallMaximum & Minimum value.
  • Display UpdateApprox. 1 second.
  • Power offManual off by push button or Auto shut off to save battery life.
  • Data TransmissionRS 232/USB PC serial interface.
    * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
    * Connect the optional USB cable USB-01 will get the USB plug.
  • Operating Temperature0 to 50 ℃.
  • Operating HumidityLess than 80 %RH.
  • Power SupplyDC 1.5 V battery ( UM4, AAA ) x 6 PCs, Alkaline/heavy duty type or equivalent.
  • Power CurrentApprox. DC 20.5 mA.
  • DimensionsMain instrument : 173 x 68 x 42 mm
    Probe : 177 x 29 x 17 mm
  • AccessoryRS232 cable, UPCB-02
    USB cable, USB-01
    Data Acquisition software, SW-U801-WIN

Features

  • Beep Soundyes
  • Backlightyes
  • Data Holdyes
  • Max/Minyes
  • Analog Bar36 segments

Attributes

  • Operating TemperatureTemperature 0 ~ 50°C Humidity less than 80%RH
  • Power SupplyDC 1.5 V battery ( UM4, AAA ) x 6 PCs
