高斯計
Brand
LUTRON
|
Model
MG-3002
|
🇹🇼 Taiwan

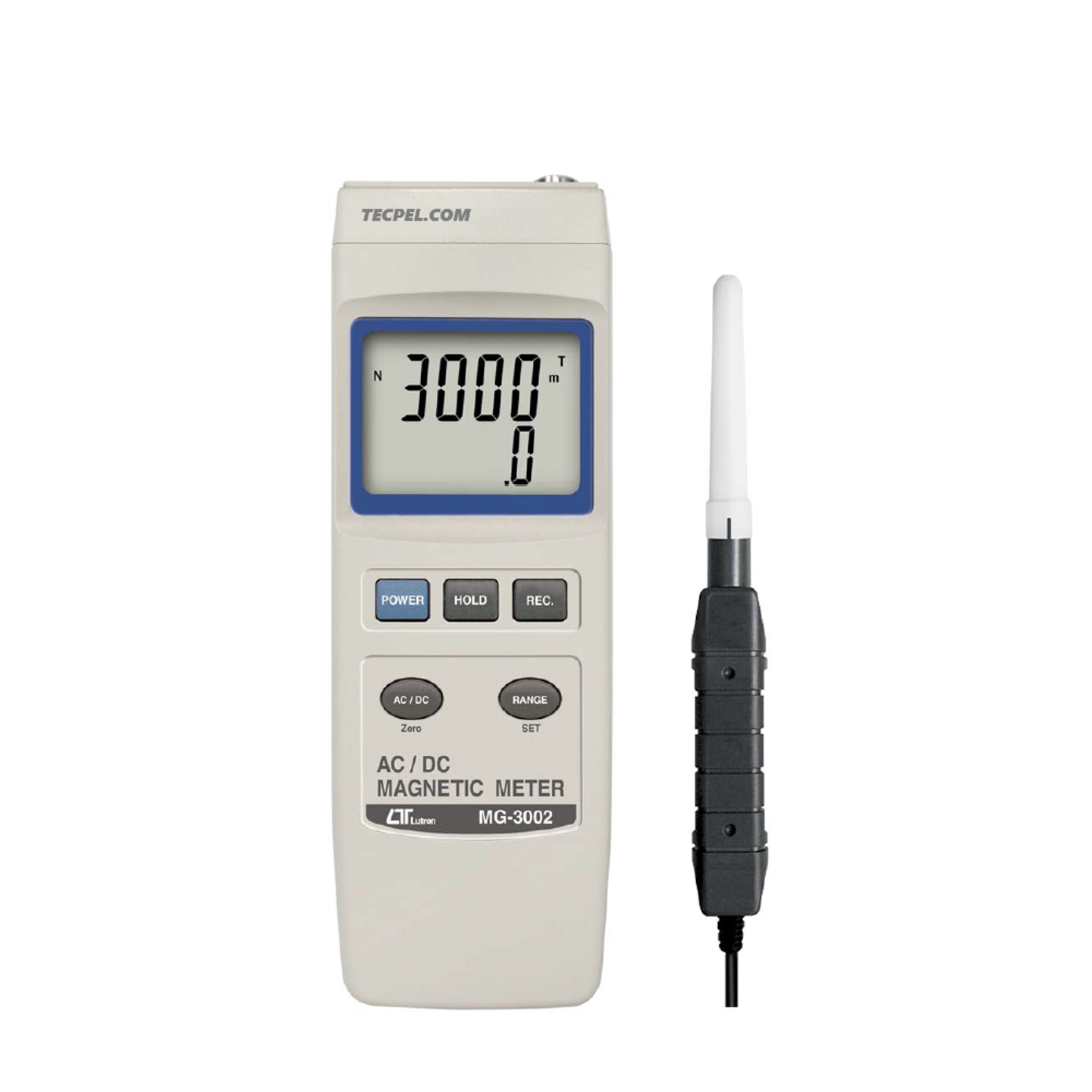

The Lutron MG-3002 Gauss Meter is a high-performance magnetic field measuring instrument capable of accurately measuring both DC and AC magnetic fields over a wide range. It features advanced functions and is designed for industrial, lab, and other professional uses.
Price
NT$ 17,325
Out of Stock
Views: 48
Description
Lutron MG-3002 Gauss Meter can measure DC and AC magnetic fields and provides high-precision magnetic measurements, making it ideal for various applications in industry and laboratory settings.
This is a scaled-down image of a laboratory environment used for DC field meter and AC magnetometer measurements. The image shows a workbench with various measuring instruments, including a DC field meter and an AC magnetometer. The setup contains permanent magnets, electromagnets, small motors, and other magnetizable materials that are measured. The overall environment is professional and orderly, instruments are in use and measurement results are displayed.
Specifications
- Display Counts6,000
- Measuring Range0.1 Gauss ~ 15000 Gauss
- Accuracy±5 %
- Measurement UnitGauss (G) / milli Tesla (mT)
- Sensor TypeHall sensor
- Sound FrequencyAC measurement: 50 Hz / 60 Hz
- Display UpdateApprox. 1 second
- Operating Temperature0 to 50 ℃
- Operating Environment HumidityLess than 85 %RH
- Power SupplyDC 1.5 V battery (UM4, AAA) x 6 or DC 9V adapter
- Power ConsumptionApprox. DC 20.5 mA
- WeightApprox. 270 g (including battery & probe)
- DimensionsMain instrument: 200 x 68 x 30 mm, Probe: 198 x 25 x 19 mm
- Data TransmissionRS-232 / USB
- Storage TemperatureTemperature -20 ~ 60℃ Humidity less than 80%RH
Features
- Magnetic FieldYes
- N/S Pole IndicatorYes
- Data HoldYes
- Max/MinYes
- Auto Temperature CompensationYes
- Auto Power OffYes
Attributes
- DimensionsMain instrument: 200 x 68 x 30 mm, Probe: 198 x 25 x 19 mm
- WeightApprox. 270 g
- AccessoriesRS232 cable, UPCB-02 ; USB cable, USB-01 ; Data Acquisition software, SW-U801-WIN
