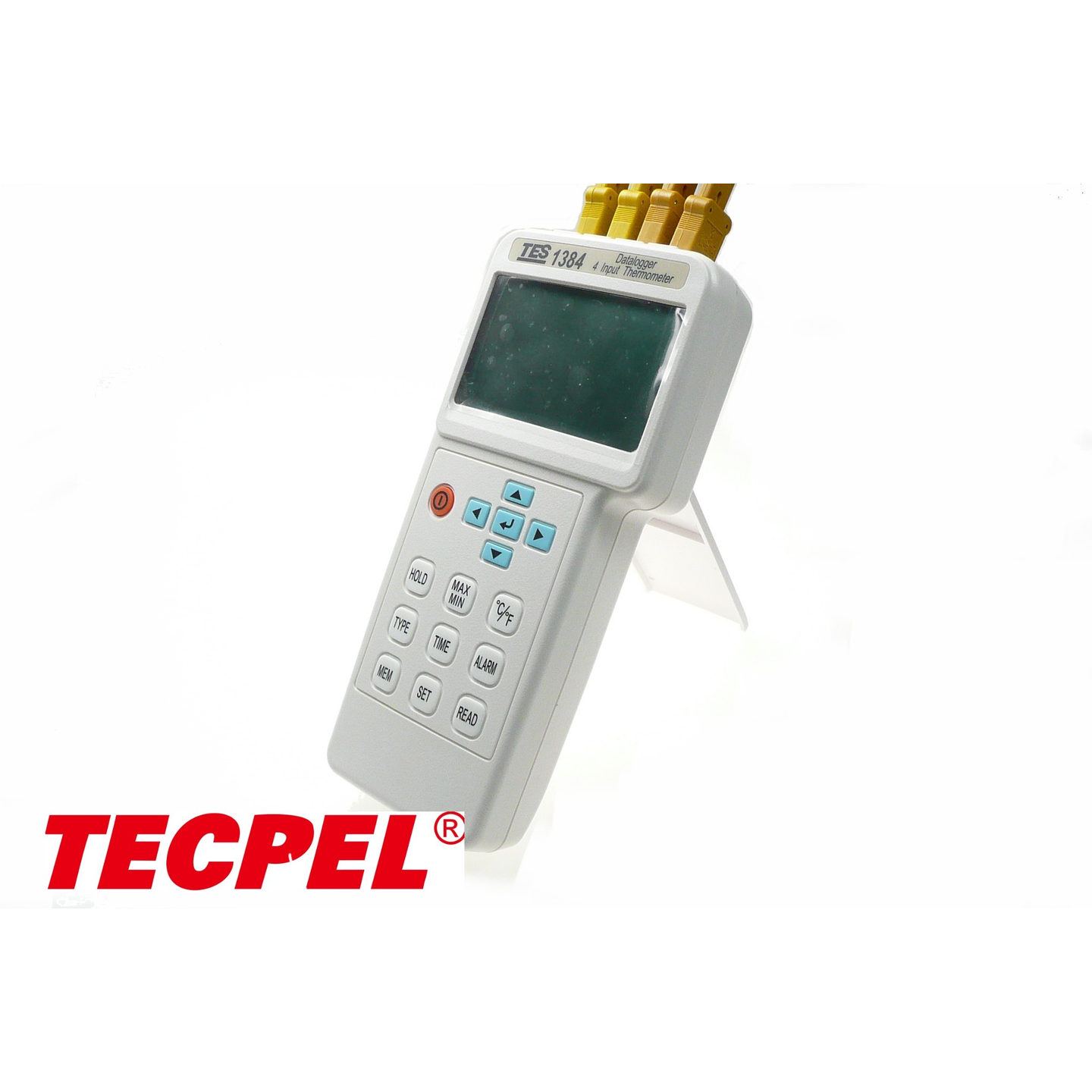

Four-Channel Thermometer USB Data Logger
Brand
TES
|
Model
TES-1384
|
🇹🇼 Taiwan
TES-1384 is a four-channel thermometer/recorder launched by TES Electronics. It has the following features:
High accuracy, measures 11 thermocouple types
4-channel temperature display, can monitor multiple temperature points at the same time
4-channel high and low temperature alarm
Statistical functions such as maximum value, minimum value, average value, etc.
Manual memory and read function
512KB automatic recording capacity
USB interface
TES-1384 is suitable for temperature monitoring and recording in various industries, scientific research and other fields.
100 words synopsis:
TES-1384 four-channel thermometer/recorder, high accuracy, multi-channel, high performance, suitable for industry, scientific research and other fields.
Price
NT$ 6,510
Out of Stock
Views: 0
Description
The input isolation protection voltage between any two channels is 350Vp-p
The high-accuracy thermometer can measure 11 different thermocouples including K, J, E, T, R, S, N, L, U, B, and C.
4-channel T1/T2/T3/T4 temperature display.
4-channel high-low warning temperature value setting.
Displays the maximum value, minimum value, maximum value minus minimum value and current value of the 4 channels.
Independent channel settings (thermocouple type, high – low warning values).
Manual memory and reading function (99 entries)
512KB automatic recording capacity (4 channels: 36,000 items, single channel: 100,000 items)
USB interface
Specifications
- Type-Ｋ Range-200 ~ -150 -150 ~ -100 -100 ~ 999.9 1000 ~ 1370 ±3.0°C ±2.0°C ±0.05% ±1.0°C ±0.2% ±1.0°C
- Type-ＪRange-200 ~ -100 -100 ~ 100 100 ~ 999.9 ±2.5°C ±1.5°C ±0.05% ±1.0°
- Type-Ｅ Range-150 ~ -100 -100 ~ 760 ±3.0°C ±0.05% ±1.0°C
- Temperature Range-200 ~ -150 -150 ~ -100 -100 ~ 400 ±3.0°C ±0.15% ±2.5°C ±0.1% ±1.0°C
- R/S0 ~ 100 100 ~ 300 300 ~ 999.9 1000 ~ 1600
- N0 ~ 999.9 1000 ~ 1300
- L-200 ~ 900
- U0 ~ 600 ±0.1% ±1.0°C
- B600 ~ 999.9 1000 ~ 1760 ±0.05% ±2.0°C ±0.1% ±2.0°C
- C0 ~ 999.9 1000 ~ 1760 ±0.1% ±1.5°C ±0.2% ±1.5°C
- Accuracy±(0.1% + 0.7°C)
- Resolution0.1 (When Display lower than 1,000 )
- Probe TypeK、J、E、T-Type
- Data Logging16,000
- Recording time period1 Sec. to 60 minutes
- Sampling Rate2 seconds per testing circle
Features
- Temperature coefficient0.01% of reading + 0.1℃ per ℃ (0.2℉ per ℉) out of specification +18℃ to 28℃ range
- Channels350Vp-p
- Low Battery Indicator✓
- T1 T2 DIFFERENCE (T1-T2)✓
- Temperature Unit Selectable°C／°F
- Data Hold✓
- Auto Power Off30 Minutes
- Backlight✓
- TRIPOD PLACED HOLE✓
Attributes
- Operating Temperature0~50°C / lower than 90%RH without dew。
- Storage Temperature-10~40°C / lower than 70%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply6 pcs x 1.5V AA alkaline batteries
- Weight405 g (including batteries)
- Dimensions18.7(length) × 7.3(width) × 5.3(thickness) cm
- AccessoryADP-01 AC Power Transmitter (Output DC 9V)、Other Type-K thermocouple probes
