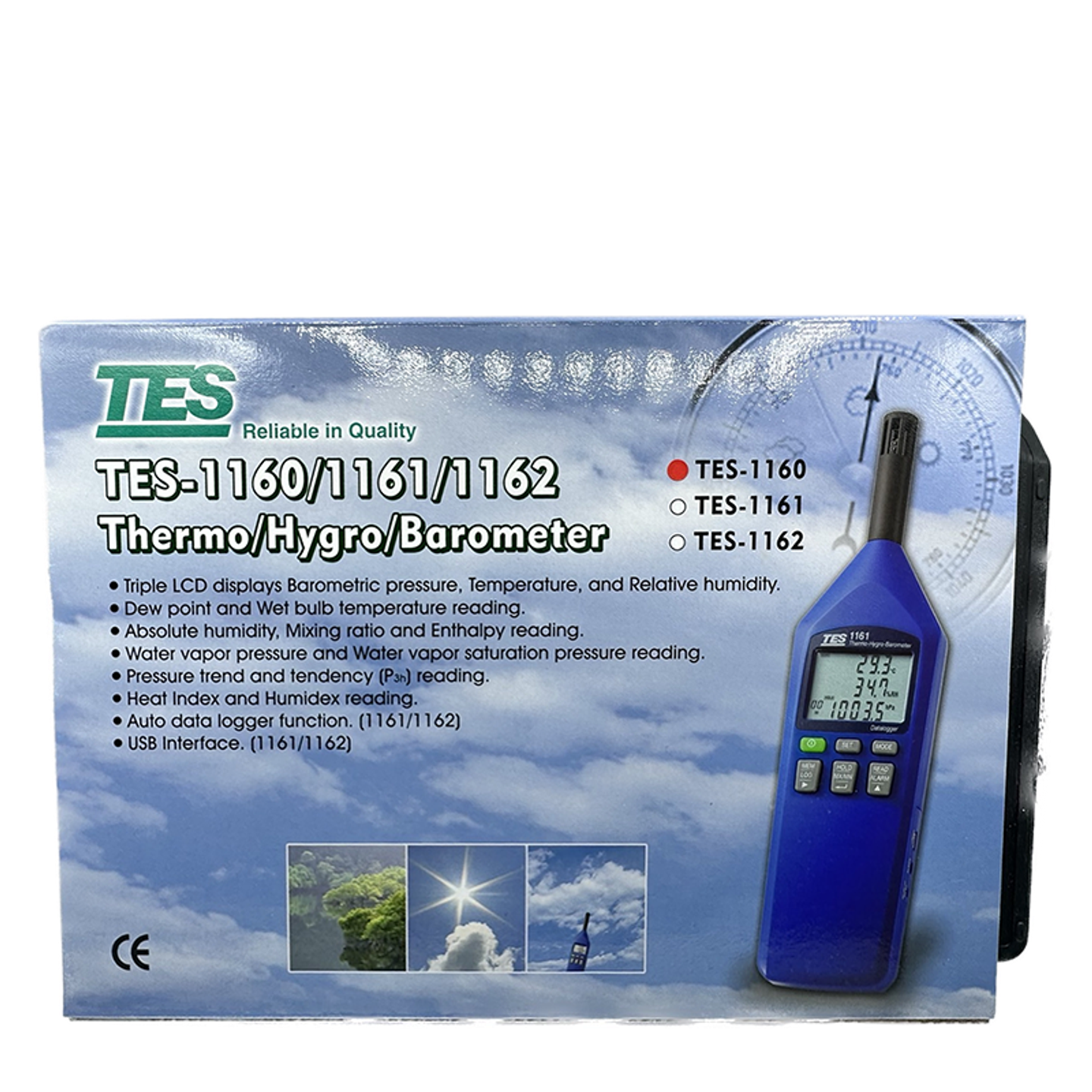

Handheld Weather Meter

Brand TES | Model TES-1160 | 🇹🇼 Taiwan
The TES-1160 is a high quality handheld 3-in-1 measuring instrument from Taiwan, which can measure atmospheric pressure / temperature / humidity functions. Featuring a backlit display, alarm limits, and manual data logging, this efficient environmental monitoring tool has a 1-second sampling rate and rapid thermal response time.
Out of Stock
Views: 0

Description

TES-1160 Temp/Humidity Barometric PressureMeteric is replaced by TES-1160A. This efficient environmental monitoring tool has a 1-second sampling rate and rapid thermal response time. A barometer is an instrument that measures changes in ambient pressure and can be used to predict the weather or measure altitude. The principle of the atmospheric pressure gauge is to use the height of the mercury column or other liquids to represent the weight of the atmospheric column, that is, the atmospheric pressure. The invention of the barometer is credited to Torricelli and Pascal in the 17th century, who experimentally demonstrated the existence of a vacuum and the law of atmospheric pressure with altitude. In general, atmospheric pressure decreases with altitude and is also affected by temperature and humidity. When the atmospheric pressure decreases, it usually indicates that the weather has turned rainy or cold; when the atmospheric pressure increases, it usually means that the weather has turned sunny or warm⁷. Sudden and dramatic changes in atmospheric pressure near the coast, possibly caused by tsunamis, typhoons, or other strong oceanic phenomena⁸. Therefore, atmospheric pressure is essential in indicating agriculture, fishery, aviation, navigation, and other activities.

Specifications

  • Barometric Pressure± 2 hpa
  • Temperature Range-40 to 100 °C
  • Humidity Range0 to 100 %RH
  • Accuracy±3 %RH @ 20 to 80 %RH,and ±5% RH for the rest
  • Resolution0.1

Features

  • Temperature Unit Selectable°C / °F
  • Recorded (manually)99 set
  • Alarm FunctionMax Voltage DC24V / Current DC 50mA / Input impedance 490 Ω

Attributes

  • Operating Temperature0 to 60°C / lower than 90%RH without dew。
  • Storage Temperature-10 to 60°C / lower than 70%RH without dew。。
  • Elevation LimitationLower than 1,000 meters
  • Power SupplyDC 9V Battery (IEC6F22 ,NED 1604)
  • Dimensions249 x 64 26 mm
  • WeightApprox. 178 g(Without Battery)
  • Accessory9V Battery、Micro-USB(1161)、Software Disc、Manual
