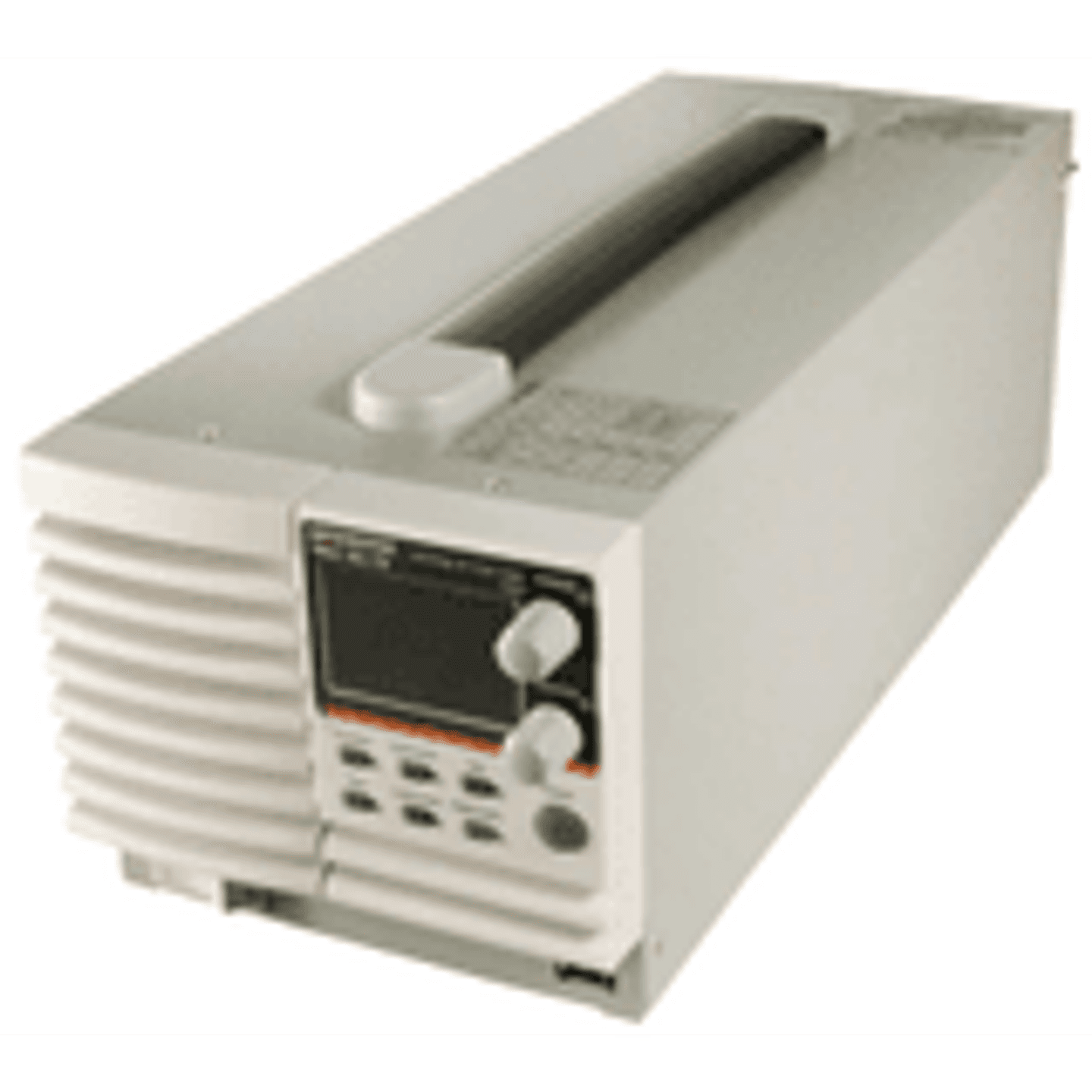

High power Programmable Switching D.C. Power Supply (Multi-Range)
Brand
GWINSTEK
|
Model
PSW80-27
|
🇨🇳 China
The PSW 80-27 is a single output multi-range programmable switching DC Power Supply covering a power range up to 720W. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW 30-36 significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.
Out of Stock
Views: 47
Description
Single-Channel Multi-Range Programmable Switching DC Power Supply, 80V/27A, 720WVoltage Rating: 80V, Output Power: 720WConstant Power Output for Multiple Range (V&I) OperationCV/CC Priority; Particularly Suitable for the Battery and LED IndustryAdjustable Slew RateSeries and Parallel Operation(2 units in Series / 3 units in Parallel Maximum)High Efficiency and High Power Density1/6 Rack Mount Size Design (EIA/JIS Standard)Standard Interface: LAN,USB, Analog Control Interface, GPIB-USBAdaptor(Optional)Labview Driver
Specifications
- Output Voltage≦3mArms
- Output Current0 to 27 A
- Output Power720W
- Accuracy0.05% + 5mV
- Voltage ResolutionRise 50ms /Fall (Full Load) 50ms / Fall 500ms
- Current Resolution1ms
- Voltage Limit Regulation Rate1mV / 1mA
- Voltage Load Regulation Rate45mV
- Current Limit Regulation Rate32mA
- Current Load Regulation Rate32mA
- Voltage Ripple11mVrms (5Hz~1MHz) / 80mVp-p
- Current Ripple54mArms
- Rise Time額定負載 50ms / 空載 50ms
- Fall Time額定負載 50ms / 空載 500ms
- Load Transient Recovery Time1ms
Features
- ChannelsUp to 3 units including the master unit
- Output ControlUp to 2 units including the master unit
- Parallel Operation10% to 110% of rated output voltage range
- Series Operation10% to 110% of rated output current range
- Over Voltage Protection (OVP)Activated by elecated internal temperatures
- Over Current Protection (OCP)設定範圍 2.7 ~ 29.7 A
- Over Temperature Protection (OTP)關閉輸出
- AC-Fail Protection關閉輸出
- Power Limit約額定輸出功率的 105%
- CommunicationUSB、LAN；選配 GPIB（GUG-001 GPIB to USB 轉接器）
- Analog Control可
Attributes
- Operating Temperature0 to 50 °C / 20 to 80%RH without dew
- Storage Temperature20 to 80 °C / lower than 90 %RH without dew
- Altitude LimitUSB / LAN /
- Power Supply85VAC~265VAC; 50 / 60Hz;Single Phase
- Dimensions71 x 124 x 350 mm
- Weight約 5.3 公斤
- Cooling Method內部風扇強制氣冷
