Process Calibrator
Brand
PROVA
|
Model
PROVA-125
|
🇹🇼 Taiwan
Features include:
- DC voltage output ranges of 100mV, 1000mV, and 12V
- Accuracy up to 5 digits
- Supports K, E, J, T type thermocouples
- DC current output up to 20mA
- Frequency range of 1~62.5K Hz
- User-friendly interface for field use
Out of Stock
Views: 0
Description

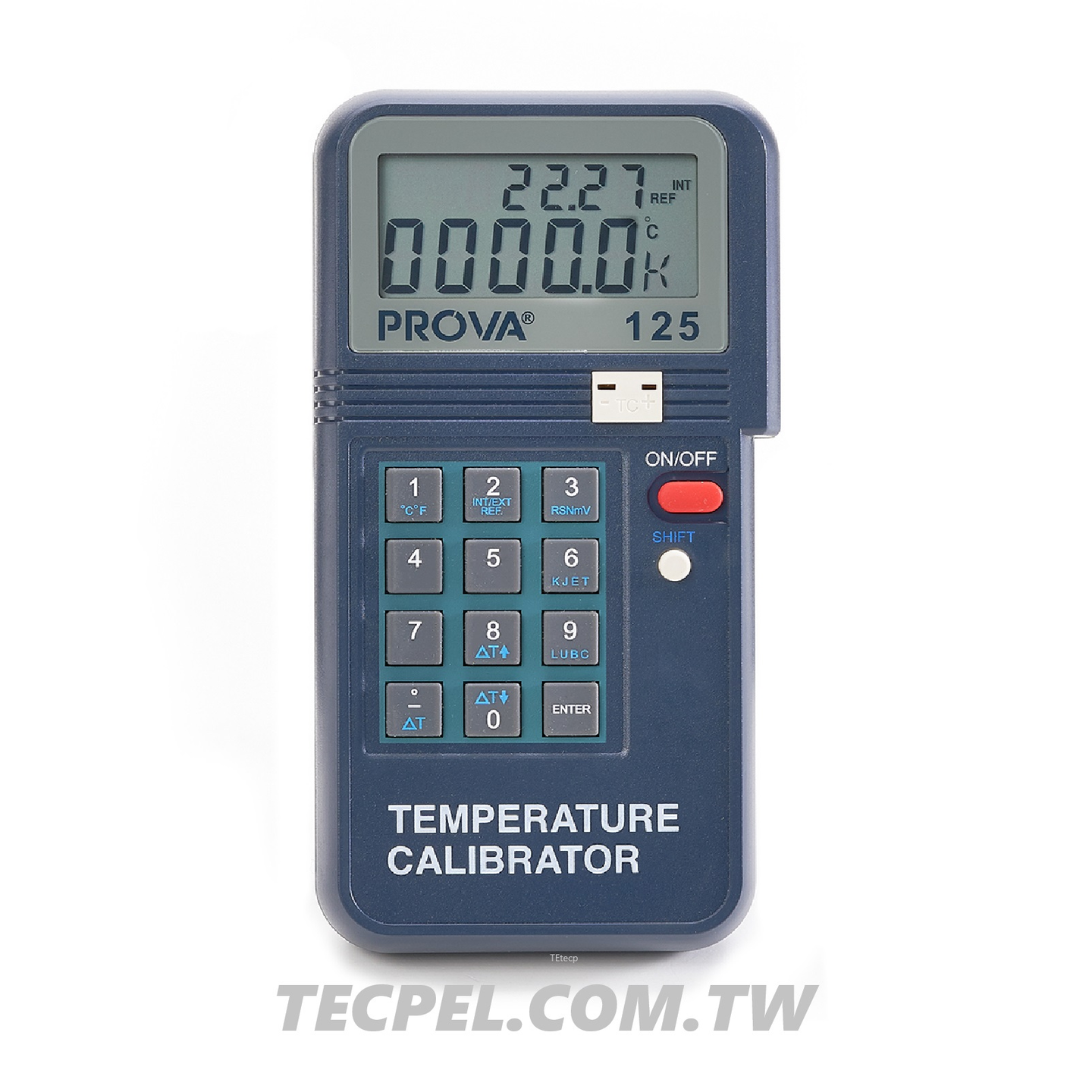

The PROVA-125 Process Calibrator is a high-precision, multifunctional measurement instrument designed for calibrating various sensors and devices. Whether for DC voltage, current, or thermocouples, the PROVA-125 provides accurate outputs and an easy-to-use interface, suitable for both laboratory and field applications. With its five-digit display and multiple output ranges, it is an ideal tool for engineers and technicians.
Specifications
- 精確度5位數
- 直流電壓100m / 1000m / 12 V ±(0.05%+3)
- 直流電流20m A ±(0.05%+4)
- 熱電偶(TC)K. E. J. T
- K-Type-200~1,370 °C (-328~2,400 °F)
- J-Type-100~760 °C (-148~1,400 °F)
- 頻率1~62.5K Hz ±0.04Hz
Features
- 精確度5位數
- 直流電壓100m / 1000m / 12 V ±(0.05%+3)
- 直流電流20m A ±(0.05%+4)
- 熱電偶(TC)K. E. J. T
- K-Type-200~1,370 °C (-328~2,400 °F)
- J-Type-100~760 °C (-148~1,400 °F)
- 頻率1~62.5K Hz ±0.04Hz
Attributes
- Operating Temperature0~50°C / lower than 85%RH without dew。
- Storage Temperature-20~60°C / lower than 85%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply9V Battery
- Dimensions88 x 168 x 26 mm
- Weight330g
- AccessoryCarrying box, Thermocouple wiring, Alligator clip, Measuring rod, External battery box, Battery, Manual
