Process Calibrator
Brand
TECPEL
|
Model
CL-325

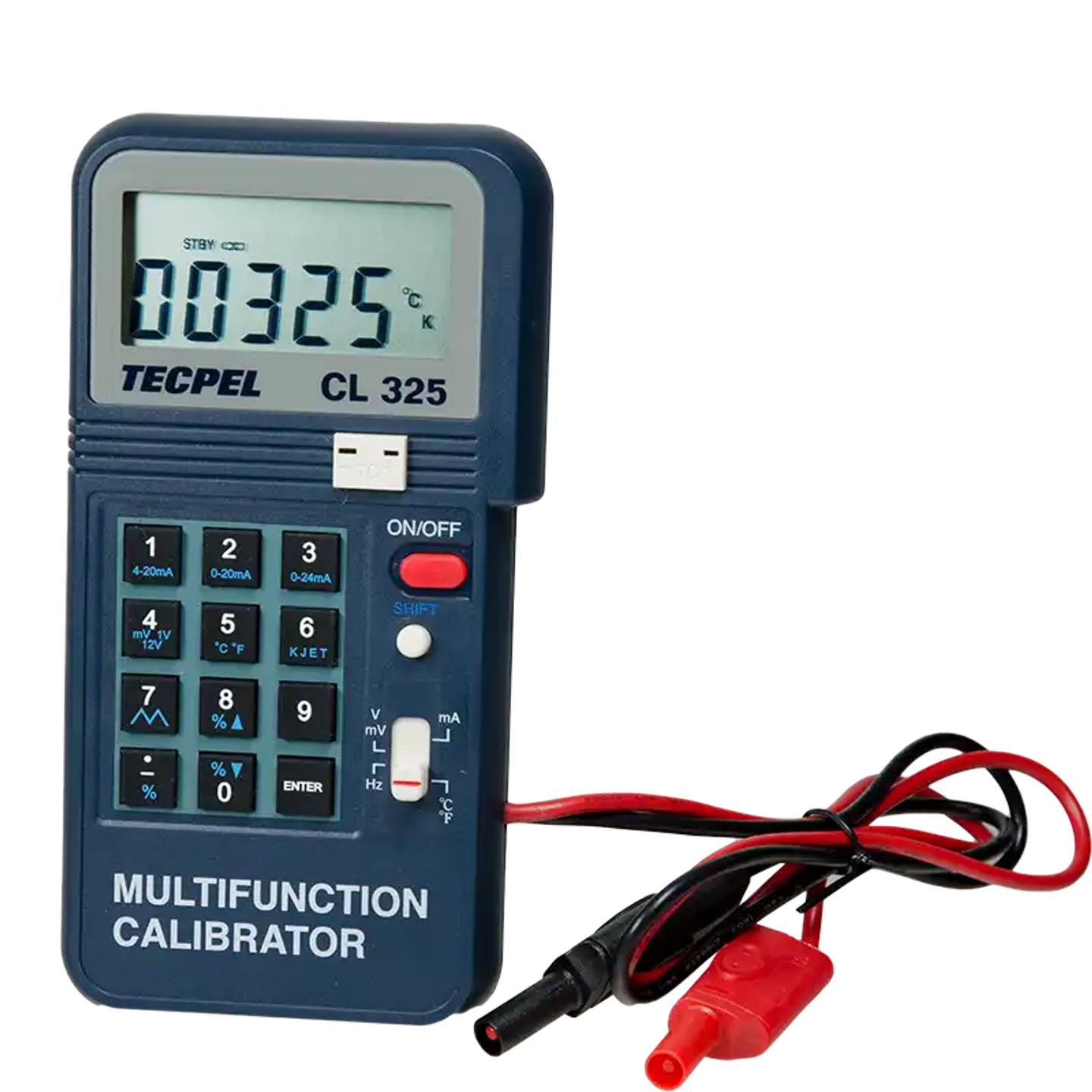

The CL-325 Process Calibrator features various functions, including:
- DC voltage, current, and thermocouple measurements
- Accuracy up to 5 digits
- Alarm, backlight display, and value hold functions
- Max/Min value recording capability
- Suitable for a wide range of working environments
Price
NT$ 11,550
Out of Stock
Views: 66
Description
The CL-325 Process Calibrator is a high-precision calibration tool designed for calibrating and testing various measuring instruments. With its user-friendly interface, users can quickly input the required data and perform accurate function calibrations. Whether in laboratories, factories, or field testing, the CL-325 delivers outstanding performance and reliability, making it an ideal choice for professional technicians.
Specifications
- Accuracy5位數
- DC Voltage100m / 1000m / 12 V ±(0.05%+3)
- DC Current20m A ±(0.05%+4)
- Thermocouple TypeK. E. J. T
- Frequency1~62.5K Hz ±0.04Hz
- Display Counts4+5 位顯示
- Resolution0.1°C, 0.1°F
- 內部溫度參考輸出阻抗100Ω
- 外部溫度參考輸出阻抗100Ω
- Dimensions88 x 168 x 26 mm (3.46" x 6.61" x 1.03")
- Battery Type9V 鹼性電池
- Operating Temperature0°C ~ 50°C (32°F ~ 122°F)
- Operating Environment Humidity少於 85% (相對濕度)
- Storage Temperature少於 85% (相對濕度)
- Weight330g (11.63 oz)
- Accessories手提箱 x 1, 說明書 x 1, 9V 鹼性電池 x 1, K type 熱電偶連接線
Features
- Alarm Function是
- Backlight是
- Data Hold是
- Max/Min是
Attributes
- Operating TemperatureTemperature 0 ~ 50°C, Humidity below 70%RH, no condensation
- Storage TemperatureTemperature -20 ~ 60°C, Humidity below 80%RH, no condensation
- Altitude LimitLower than 1,000 meters
- Power Supply9V Alkaline battery
- Dimensions88 x 168 x 26 mm
- Weight330g
- AccessoriesCarrying box, Thermocouple wiring, Alligator clip, Measuring rod, External battery box, Battery, Manual
- Safety RatingNone
