Process Calibrator
Brand
TECPEL
|
Model
CL-327A
|
🇨🇳 China

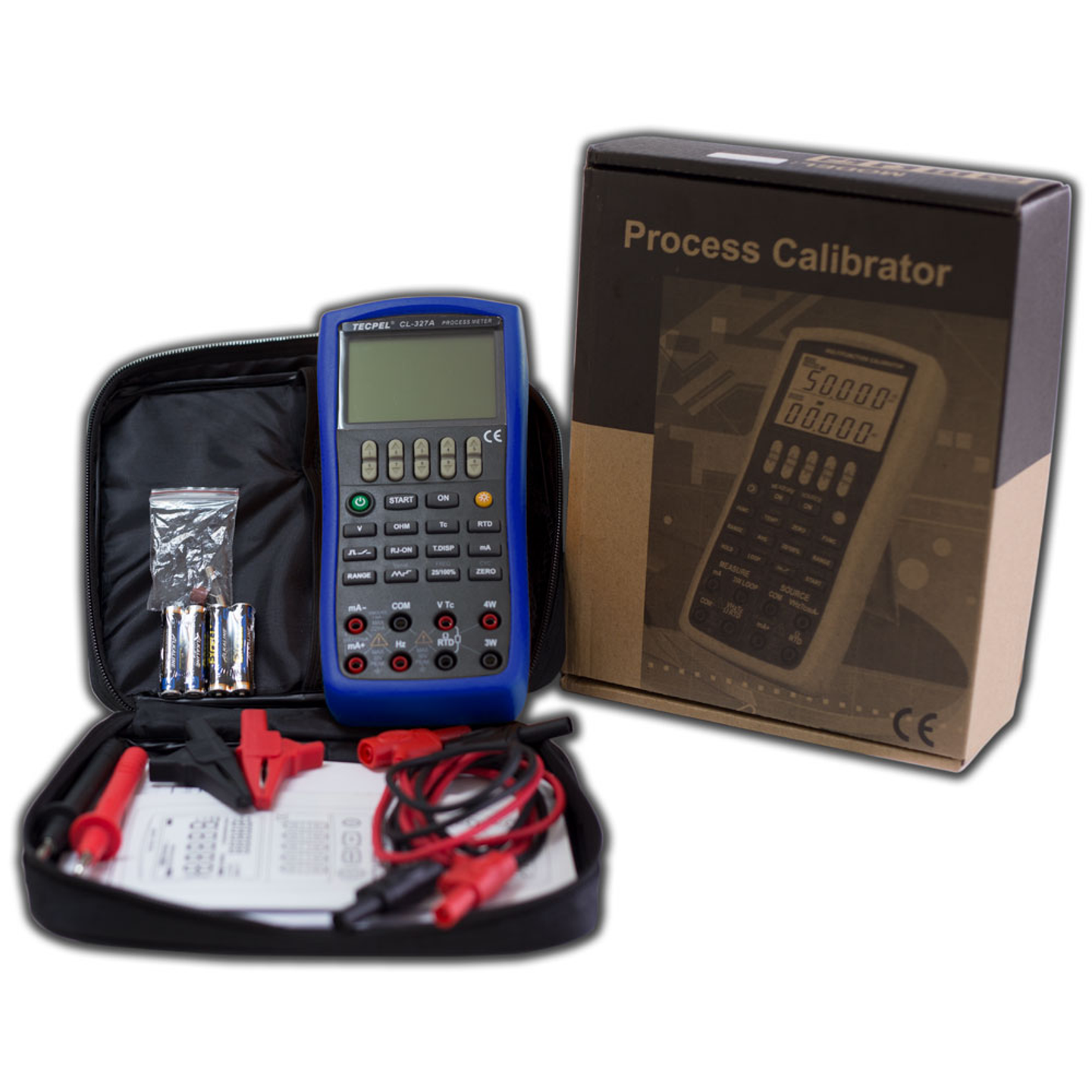

The CL-327A Process Calibrator offers multiple signal simulation functions, including PT-100 temperature, 0~22A current, and 0~28V voltage, along with a 24V loop power supply. It is an essential tool for measuring and calibrating industrial automation systems and instruments, effectively improving work efficiency and productivity while providing cost-effective high-accuracy calibration solutions.
Price
NT$ 15,750
Out of Stock
Views: 1
Description
The CL-327A Process Calibrator is a high-performance device designed to simulate various voltage and current analog signals, making it ideal for testing sensing equipment. It is particularly suited for HVAC engineers, allowing for precise measurement of temperature, pressure, and airflow parameters, as well as system component checks and calibrations. This ensures optimal performance and accuracy in industrial and commercial environments, enhancing overall efficiency and energy savings.
Specifications
- 精確度5位數
- 直流電壓100m / 1000m / 10 V
- 直流電流20m A
- 阻抗(O)400 / 4K / 40K Ω
- R-Type0～1,767 °C
- S-Type0～1,767 °C
- K-Type-200.0～1,372.0 °C
- E-Type-200.0～1,000.0 °C
- J-Type-200.0～1,200.0 °C
- 頻率100 / 1K / 10K Hz
- N-Type-200.0～1,300 °C
- B-Type600～1,820 °C
- L-Type-200.0～900.0 °C
- U-Type-200.0～600.0 °C
- 電阻-50.0~150.0 °C
- 開關量(SWITCH)100 / 1K / 10K / 100K Hz
Features
- 雙排顯示✓
- 25%/100% 步進✓
- 自動關機✓
- 低電量指示✓
- 背光顯示✓
Attributes
- Operating Temperature0~50°C / lower than 80%RH without dew。
- Storage Temperature-20~60°C / lower than 90%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power Supply1.5V AAA x 4
- Dimensions205 × 95 × 42 mm
- Weight500g
- AccessoryCarrying box, Thermocouple wiring, Alligator clip, Measuring rod, External battery box, Battery, Manual
