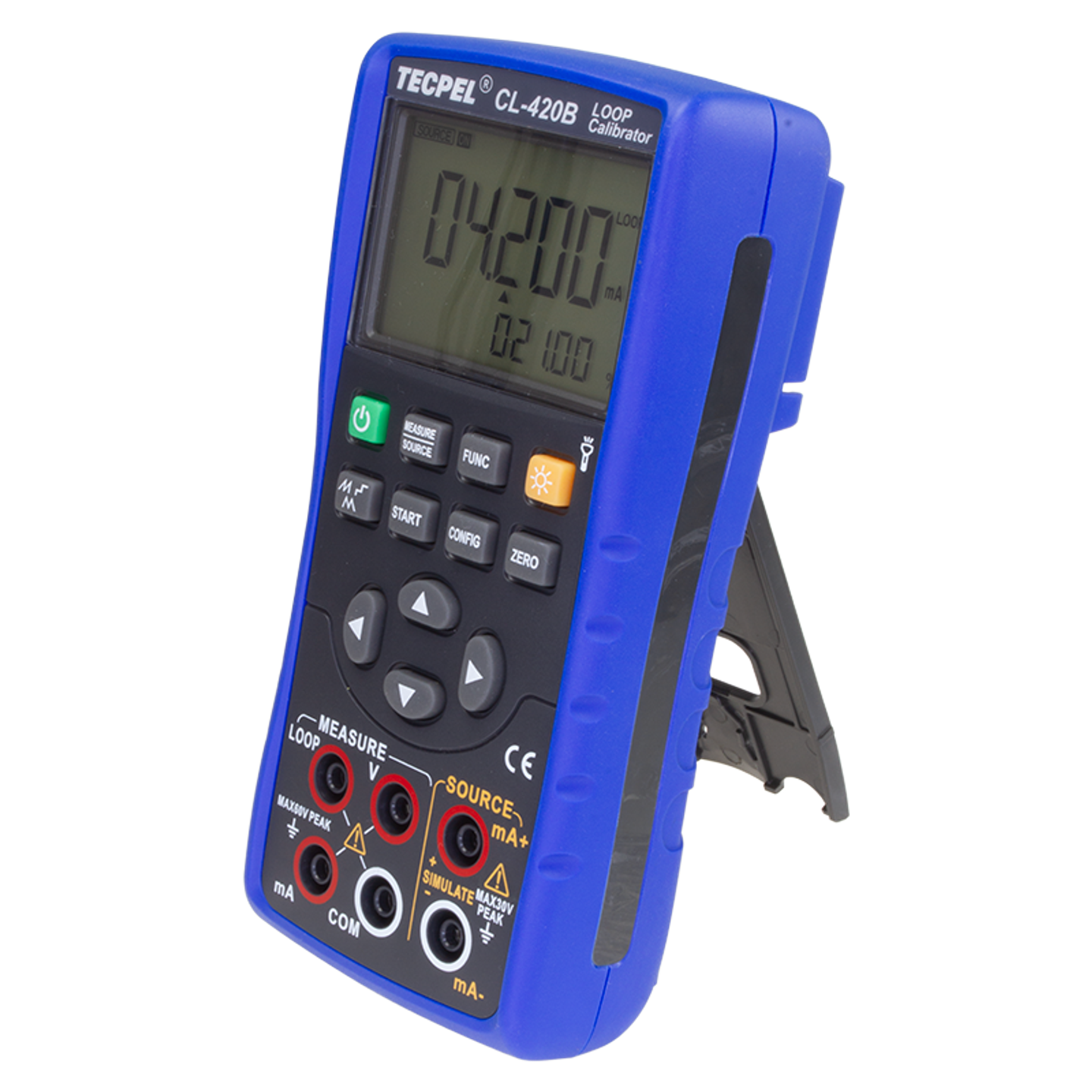

LOOP Calibrator(V/mA)
Brand
TECPEL
|
Model
CL-420B
|
🇨🇳 China
The CL-420B is a multifunctional loop calibrator with the following features:
- Measures ±30.000 V voltage and ±30.000 mA current
- Supports current output for testing sensor return signals
- Suitable for various sensors such as temperature, humidity, water level, wind speed, and pressure
- Features live loop current control
- Portable design, ideal for field engineering use
Price
NT$ 7,500
Out of Stock
Views: 577
Description
The CL-420B Loop Calibrator is a professional handheld device capable of accurately measuring loop current and voltage, as well as outputting current to test the return signals of sensors. This calibrator is suitable for calibrating various signal receivers, digital displays, and industrial sensors, making it ideal for engineers to troubleshoot and test sensors on-site, effectively improving testing efficiency and accuracy.
Specifications
- Accuracy199,999
- measurementDCV±30.000 V ±(0.02% + 2mV)
- measurement DCI±30.000 mA ±(0.02% + 4uA)
- Power SupplyDC 24V ±10%
- DCI30.000 mA ±(0.05% + 4uA)
- Loop Current30.000 mA ±(0.05% + 4uA)
Features
- Voltage Measurement±30.000 V
- Current Measurement±30.000 mA
- Output Current30.000 mA
- Loop Current30.000 mA
- Accuracy199,999
- Power SupplyDC 24V ±10%
- Specificationsupports
- Handheld DesignYes
- Specification suitable for
- Specification Yes
Attributes
- Best Operating Environment18 to 28°C / 20 to 80%RH without dew
- Storage Temperature-10 to 5°C / lower than 90%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V (AA / LR6) Batteries x 3 pcs
- Dimensions190 × 95 × 60 mm
- Weight430g
- Accessoriestest lead (probe with alligator clip), Manual
