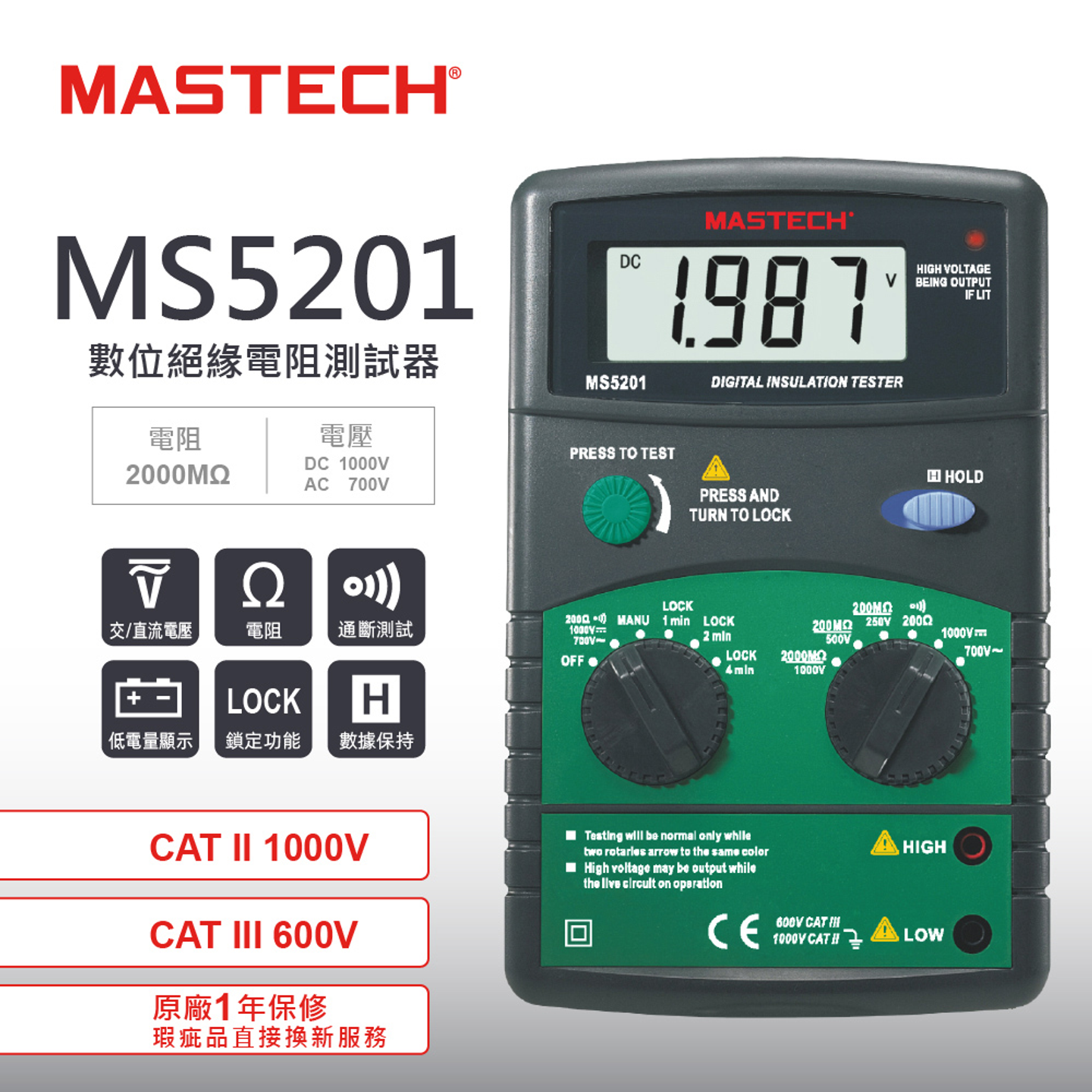

MASTECH MS5201 Digital Insulation Tester
Brand
MASTECH
|
Model
MS5201
|
🇨🇳 China
Low and high resistance measurement modes
Selectable output voltages of 250V, 500V, 1,000V
Suitable for large transformers, generators, and high-voltage equipment
Provides accurate insulation resistance measurements
Ensures safety and reliability of equipment operation
Price
NT$ 3,413
Out of Stock
Views: 184
Description
The MASTECH MS5201 Digital Insulation Tester is a professional testing device featuring low and high resistance measurement modes. It allows users to select output voltages of 250V, 500V, or 1,000V for insulation resistance testing, ensuring the safety and reliability of high voltage equipment. This instrument is particularly suitable for testing large transformers, generators, and other high-voltage equipment, providing accurate measurement data to meet professional needs.
Specifications
- 直流 250V ± 10% 測試電壓200M Ω ±(3%+5)
- 直流 500V ± 10% 測試電壓200M Ω ±(3%+5)
- 直流 1,000V ± 10% 測試電壓50~1000M Ω ±(3%+5) ; 1000~2000M Ω ±(5%+5)
- DC Voltage1V
- AC Voltage1V
- Short Circuit CurrentDC 小於 2mA
- Output Voltage0.1~199.9Ω ±(1.0%+3)
Features
- 低阻抗與高阻抗檔位兩種測量模式可選擇
- Output Voltage250V、500V、1,000V
- Applications大型變壓器、發電機、高壓設備
- Accuracy精確的測試數據
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyDC 1.5V Battery (LR14) x 6
- Dimensions190 x 82 x 32mm
- Weightapprox. 545g (including battery)
- AccessoriesBattery, Carrying case, Alligator clip test lead, Manual
