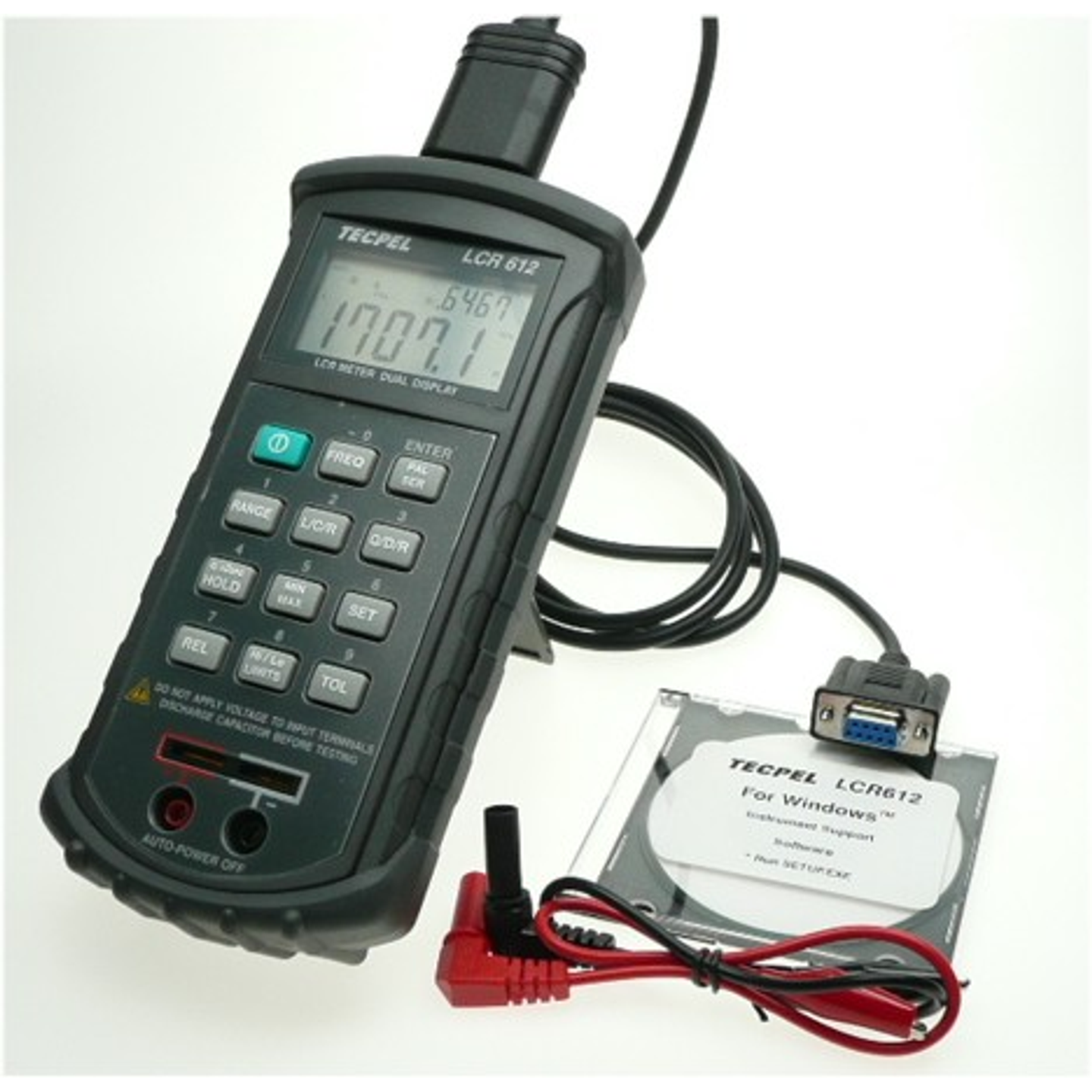

Handheld LCR Meter
Brand
TECPEL
|
Model
LCR-612
|
🇹🇼 Taiwan
Handheld LCR Meter with 20000 display count,
Easy to operate, suitable for beginners,
Measures resistance, capacitance, and inductance,
Stable performance with high accuracy,
Being phased out, LCR-613 is recommended as a replacement.
Out of Stock
Views: 0
Description
The Handheld LCR Meter LCR-612 is a user-friendly and versatile measuring instrument designed for beginners and basic testing needs. With a 20000 display count, it accurately measures resistance, capacitance, and inductance, making it ideal for testing various electronic components. Although this product is being phased out, users can refer to the LCR-613 as a suitable replacement.
Specifications
- 顯示位數19,999 顯示
- 電阻±(0.8%+1)
- 電容±(1%+5)
- 電感±(2%+8)
- 頻率120Hz / 1KHz
- 顯示更新約 每秒1次
Features
- 測試參數四種測試參數 (Ls+(Q,D,Rs)，Lp+(Q,D,Rp)，Cs+(Q,D,Rs)，Cp+(Q,D,Rp))
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew。
- Storage Temperature-10~60 °C / lower than 80%RH without dew。
- Elevation LimitationLower than 1,000 meters
- Power SupplyDC 9V Battery X1 or ( DC 12V adaptor)
- Dimensions192 × 91 × 52.5 mm
- WeightApprox. 365g (Battery including)
- AccessoryTest lead, battery, manual
