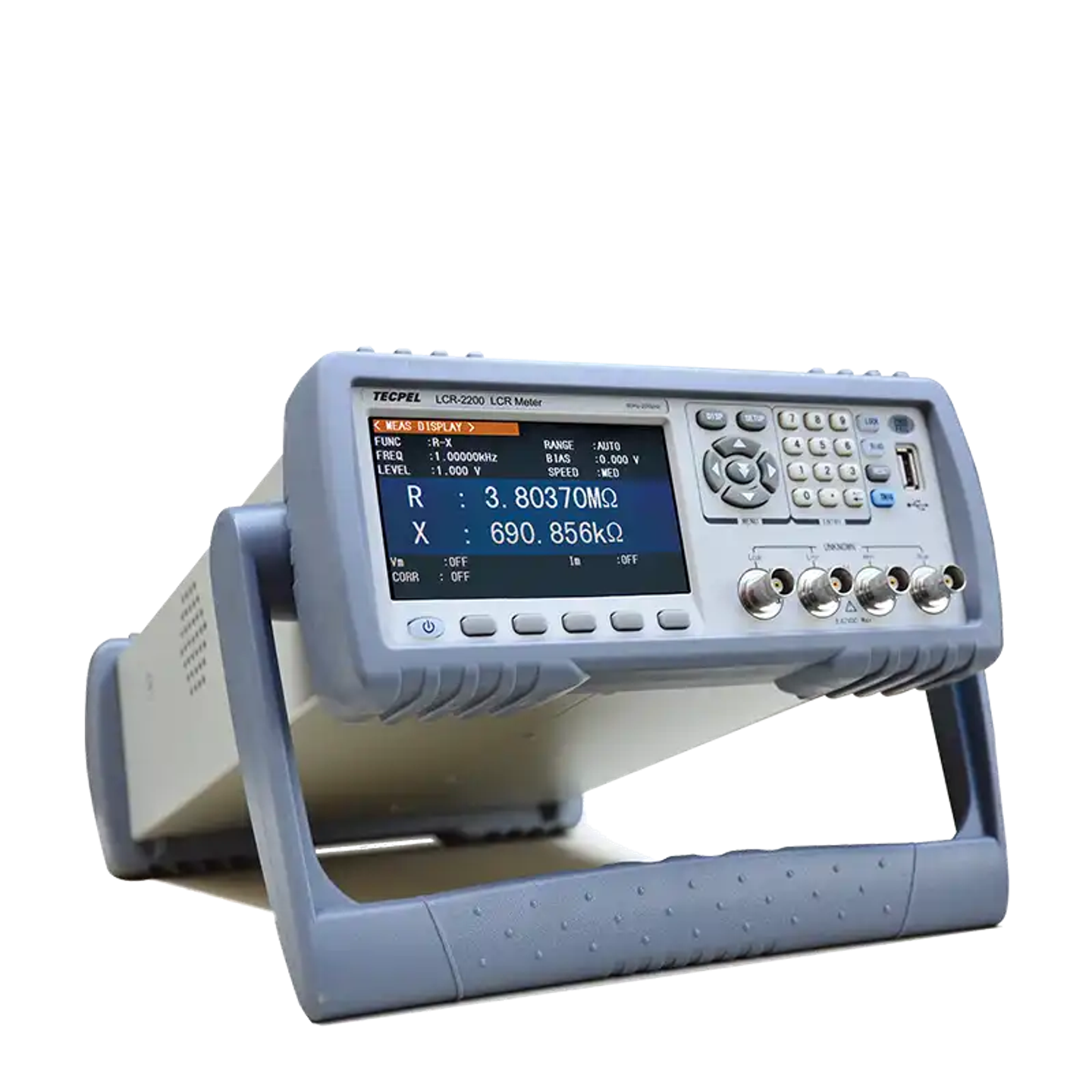

200KHz Desktop LCR Meter
Brand
TECPEL
|
Model
LCR-2200
|
🇨🇳 China
• Test frequency range: 20Hz~200kHz, with a resolution of 15,025 steps
• Basic accuracy: 0.05%
• 201-point data table scanning function
• DCR testing function, resolution of 10μΩ
• Ls-Rd/Lp-Rd function (L, Rd displayed simultaneously)
• Voltage and current monitoring with automatic potential adjustment
• USB flash drive storage support
• RS232, USB, HANDLER interfaces
Out of Stock
Views: 52
Description
The LCR-2200 Desktop LCR Meter is designed for precise measurements, featuring a maximum test frequency of 200KHz and an intuitive color LCD display. It effectively measures capacitors, inductors, and resistors, with a capacitance detection range down to 0.00001pF. The instrument supports both automatic and manual measurement modes, making it suitable for use by engineers and technicians in laboratories and production lines.
Specifications
- Display4.3 TFT
- Display Counts999,999 顯示值
- Signal Output200KHz 15,025點
- Capacitance0.00001p ~ 9.99999 F
- Inductance0.00001μ ~ 99.9999k H
- Resistance0.00001 ~ 99.9999M Ω
- Conductivity Range0.00001μ ~ 99.9999 S
- Voltage Signal Input標準：5m ~ 2 V RMS / 恆定：0.01m ~ 5m V RMS
- Current Signal Input標準：5Oμ ~ 20m A RMS / 恆定：0.001μ ~ 50μ A RMS
- Test Speed快速: 12.5ms / 中速: 83 ms / 慢速: 167 ms
- Test Voltage1V
- Source Output Impedance30Ω、100Ω
Features
- Interface中文／英文
- Cable Length1公尺
- Operating Mode自動、手動
- Trigger ModeINT、MAN、EXT、BUS
- Trigger Holdoff Range0~999秒
- Simultaneous MeasurementL-RDC
Attributes
- Operating Temperature0~40°C / lower than 75%RH without dew。
- Storage Temperature5~40°C / lower than 85%RH without dew。
- Warm-up TimeRecommended more than 15 minutes
- Safety Rating110~200V ; 50/60
- Power ConsumptionApprox. 80VA
- Dimensions235 x 105 x 360 mm
- Weight3600g
- AccessoriesTransmission line, Disc, manual
