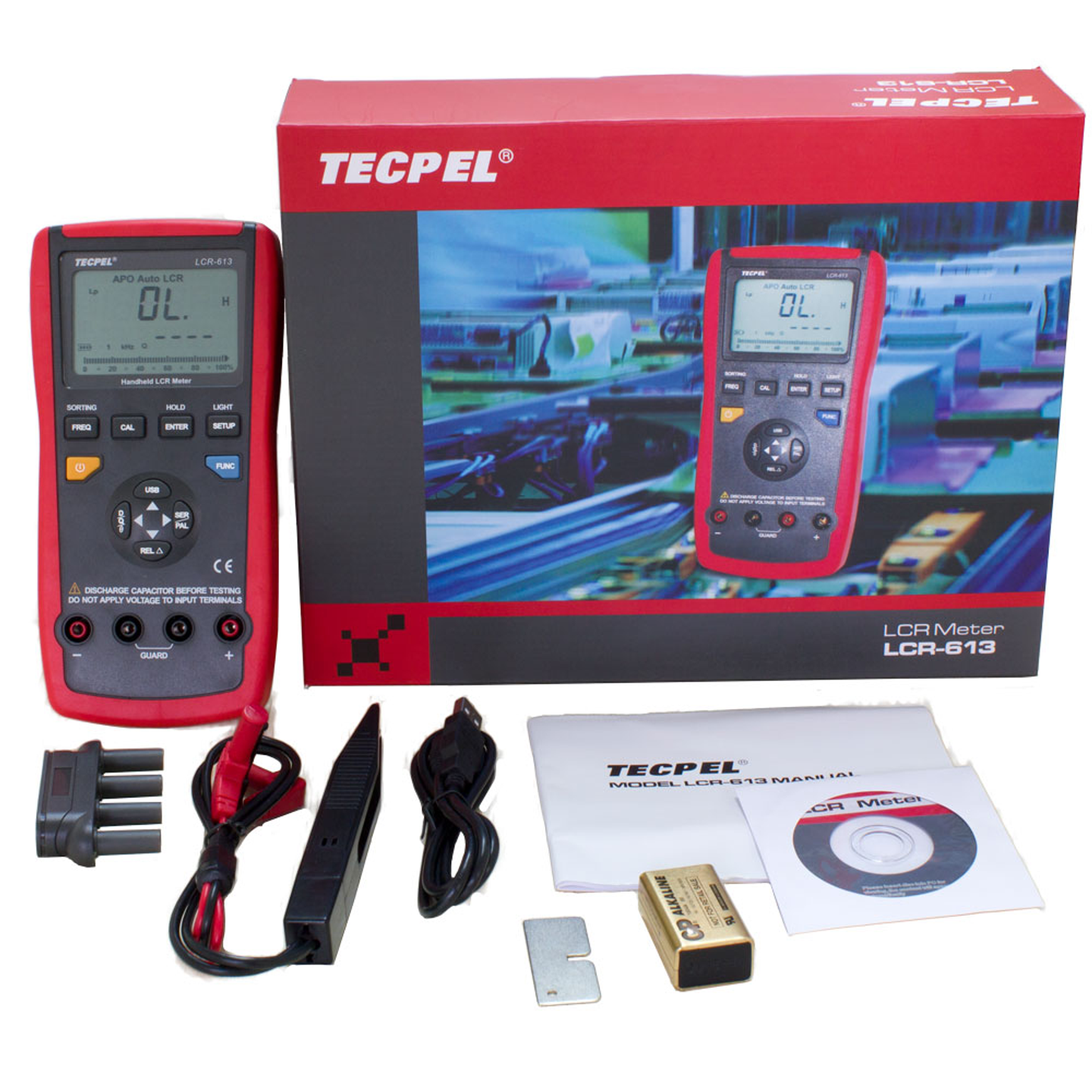

Handheld LCR Meter
Brand
TECPEL
|
Model
LCR-613
|
🇨🇳 China
The LCR-613 is primarily used for testing passive components, including inductors, capacitors, and resistors.
It features series and parallel measurement modes, providing quality factor, loss, and phase angle data.
Offers up to 5 measurement frequencies in AC mode for more precise component parameter measurements.
Price
NT$ 4,725
Out of Stock
Views: 72
Description
The LCR-613 Handheld LCR Meter is designed for testing passive components such as inductors, capacitors, and resistors. It features both series and parallel measurement modes, providing essential testing data like quality factor, loss, and phase angle of electronic components. Additionally, the LCR-613 offers up to five measurement frequencies in AC mode, allowing for more accurate component parameter measurements, making it suitable for electronics engineers and technicians in various applications.
Specifications
- Display Counts19,999 顯示
- Capacitance0.01p ~ 20.00m F
- Inductance0.01μ ~ 2000.0 H
- Resistance0.001 ~ 200.0M Ω
- Frequency100 / 120 / 1K / 10K / 100K Hz
- Test Voltage0.6V rms
- Source Output Impedance120 Ω
Features
- Analog Bar Graph26段
- 損耗量測(Ｄ)2,000顯示值
- Quality Factor (Q)2,000顯示值
- Data TransmissionUSB
Attributes
- Operating Temperature0~40°C / lower than 75%RH without dew。
- Storage Temperature0~50 °C / lower than 75%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyDC 9V Battery
- Dimensions96 x 193 x 47 mm
- WeightApprox. 374g (Battery including)
- AccessoriesSMD test clip, USB transmission line, connector socket, CD, manual
