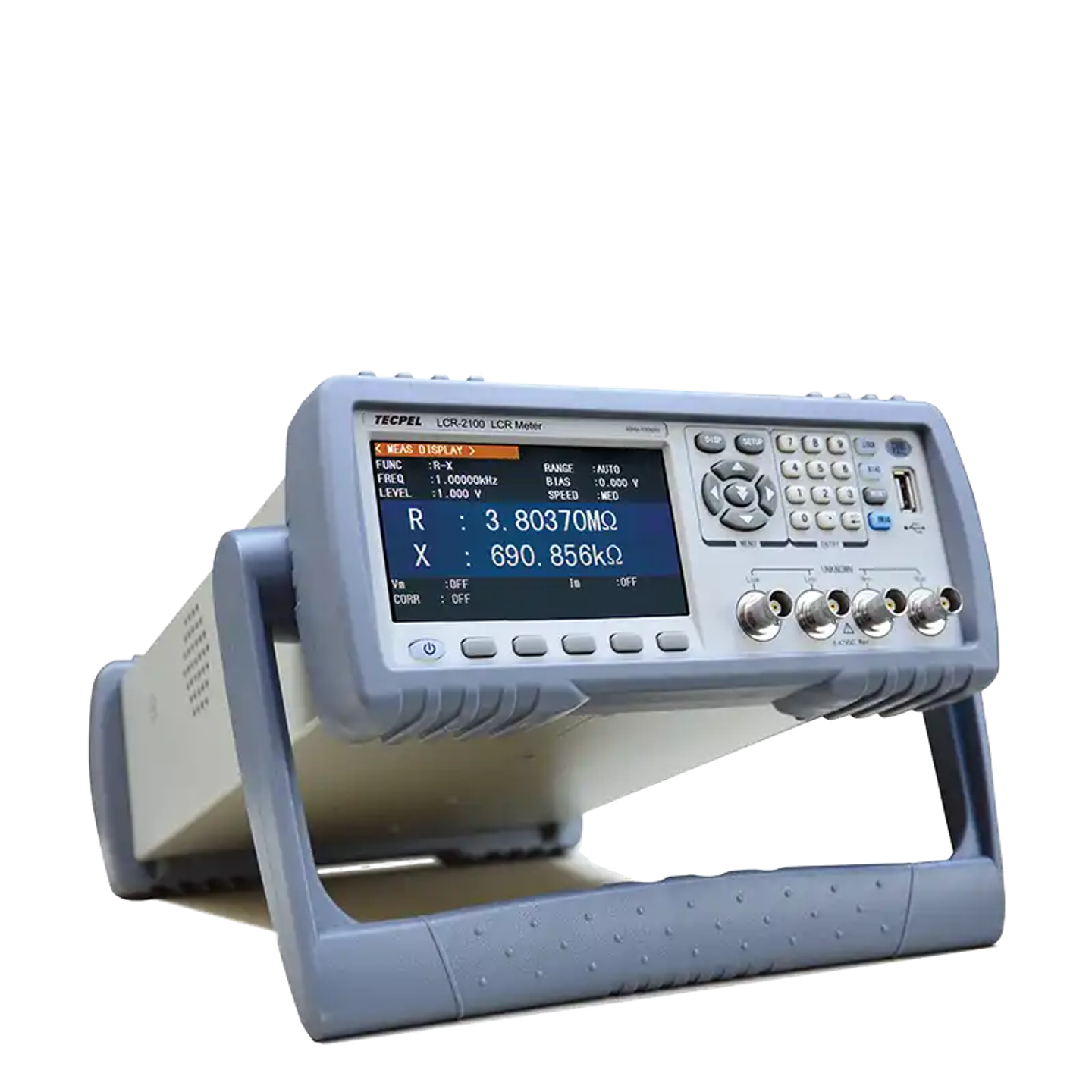

100KHz Desktop LCR Meter
Brand
TECPEL
|
Model
LCR-2100
|
🇨🇳 China
■ Testing frequency range: 20Hz~100kHz, resolution: 34 steps
■ Basic accuracy: 0.05%
■ 201-point data table scanning function
■ DCR testing function, resolution of 10μΩ
■ Ls-Rd/Lp-Rd function (L, Rd displayed simultaneously)
■ Voltage and current monitoring with automatic potential adjustment
■ Supports USB flash drive storage
■ RS232, USB, HANDLER interfaces
Out of Stock
Views: 56
Description
The LCR-2100 desktop LCR meter is designed for accurate measurement of capacitance, inductance, and resistance, with a testing frequency of up to 100KHz, capable of measuring capacitance as low as 0.00001pF. Its color LCD screen provides an intuitive interface for easy data interpretation. This instrument is suitable for testing and analyzing electronic components, widely used in electronic engineering, maintenance, and quality control.
Specifications
- Display4.3 TFT
- Display Counts999,999 顯示值
- Signal Output100KHz 34點
- Capacitance0.00001p ~ 9.99999 F
- Inductance0.00001μ ~ 99.9999k H
- Resistance0.00001 ~ 99.9999M Ω
- Conductivity Range0.00001μ ~ 99.9999 S
- Voltage Signal Input標準：5m ~ 2 V RMS / 恆定：0.01m ~ 5m V RMS
- Current Signal Input標準：5Oμ ~ 20m A RMS / 恆定：0.001μ ~ 50μ A RMS
- Test Speed快速: 12.5ms / 中速: 83 ms / 慢速: 167 ms
- Test Voltage1V
- Source Output Impedance30Ω、100Ω
Features
- Interface中文／英文
- Cable Length1公尺
- Operating Mode自動、手動
- Trigger ModeINT、MAN、EXT、BUS
- Trigger Holdoff Range0~999秒
- Simultaneous MeasurementL-RDC
Attributes
- Operating Temperature0~40°C / lower than 75%RH without dew。
- Storage Temperature5~40°C / lower than 85%RH without dew。
- Warm-up TimeRecommended more than 15 minutes
- Safety Rating110~200V ; 50/60
- Power ConsumptionApprox. 80VA
- Dimensions235 x 105 x 360 mm
- Weight3600g
- AccessoriesTransmission line, Disc, manual
