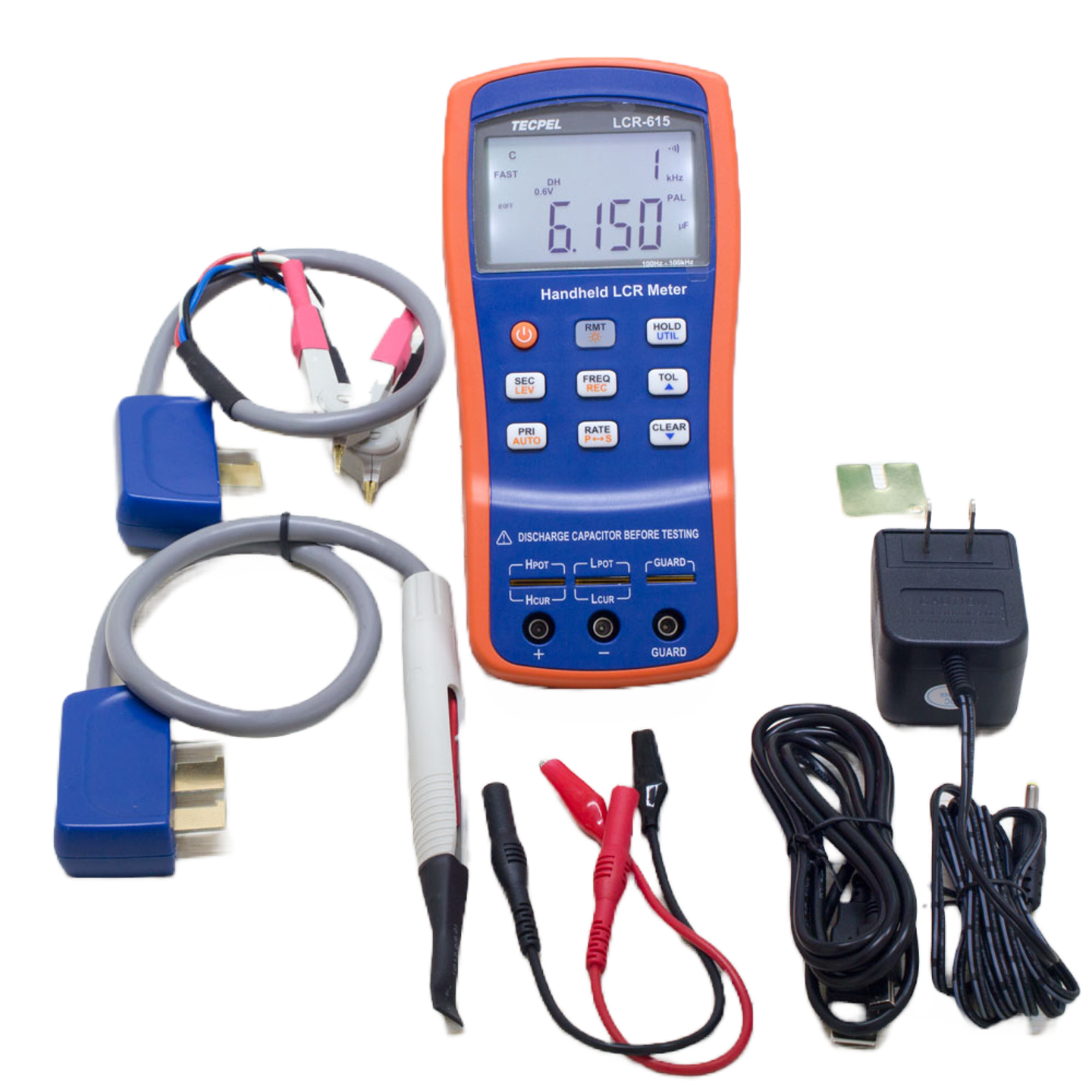

Handheld LCR Meter LCR-615
Brand
TECPEL
|
Model
LCR-615
|
🇨🇳 China
The Handheld LCR Meter LCR-615 has a detection frequency of 100KHz, providing precise measurements of component values.
- 40,000 counts display for high resolution
- Equipped with rechargeable battery for prolonged use
- Supports USB data transmission for easy data management
- Various test frequency options to suit different applications
Price
NT$ 12,600
Out of Stock
Views: 63
Description
The Handheld LCR Meter LCR-615 features ultra-low power design and high-density SMD assembly technology, allowing simultaneous display of primary and secondary parameters on a backlit LCD screen. Its vibrant dual-color casing is easy to operate and suitable for various environments. With a test signal frequency of up to 100kHz, it offers a maximum of 40,000 counts for primary parameters and a resolution of 0.0001 for loss factor, enabling accurate and convenient measurement of passive components.
Specifications
- Display Counts39,999 顯示值
- Signal Output100 / 120 / 1K / 10K / 100K Hz
- Capacitance0.01p ~ 20.000m F
- Inductance0.01μ ~ 1000.0 H
- Resistance0.0001 ~ 10.000M Ω
- Accuracy最高 ±0.25%
- Test Voltage0.3 / 0.6 / 1 V rms
- Sampling Rate４次／秒 或 1.5次/秒
- Source Output Impedance100 Ω
Features
- Calibration開路/斷路
- Dissipation Factor (D)４位數顯示
- Quality Factor (Q)４位數顯示
- Phase Angle (θ)±180.0°
- Tolerance Mode1%、5%、10%、20%
- Auto Power Off5分鐘、15分鐘、30分鐘、60分鐘、OFF
- Data TransmissionUSB
- 電池充電搭載 8.4V Ni-MH 200mAH可充電電池
Attributes
- Operating Temperature5~35°C / lower than 75%RH without dew。
- Storage Temperature0~50 °C / lower than 75%RH without dew。
- Altitude LimitLower than 1,000 meters
- Power SupplyAC:110V 60Hz / 9V Battery
- Dimensions96 x 193 x 47 mm
- Weight374g
- AccessoriesSMD test clip, Kelvin clip, USB cable, connector socket, CD, manual
